Pre-Owned 2024 Can-Am Defender Max HD10 Lonestar Edition

Description

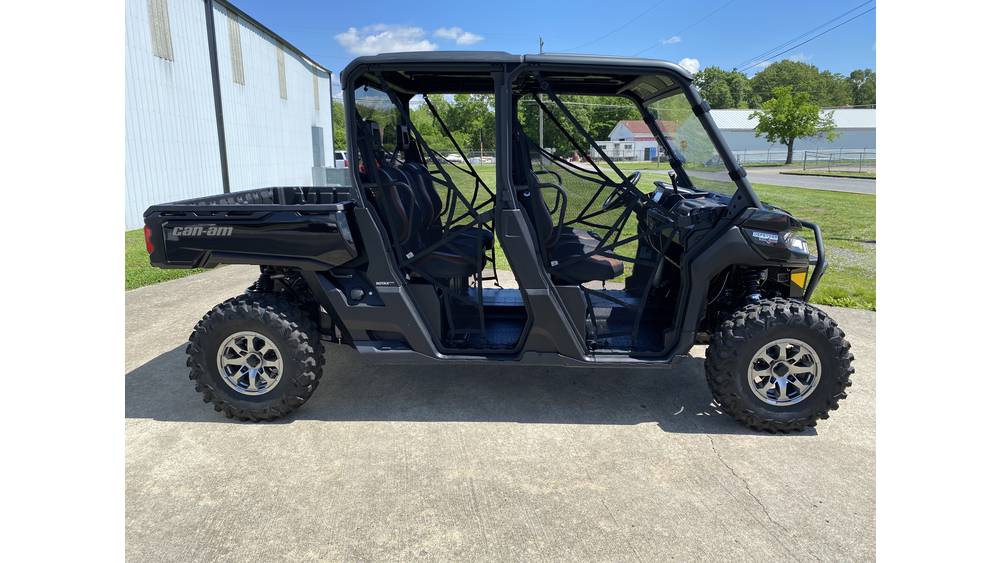

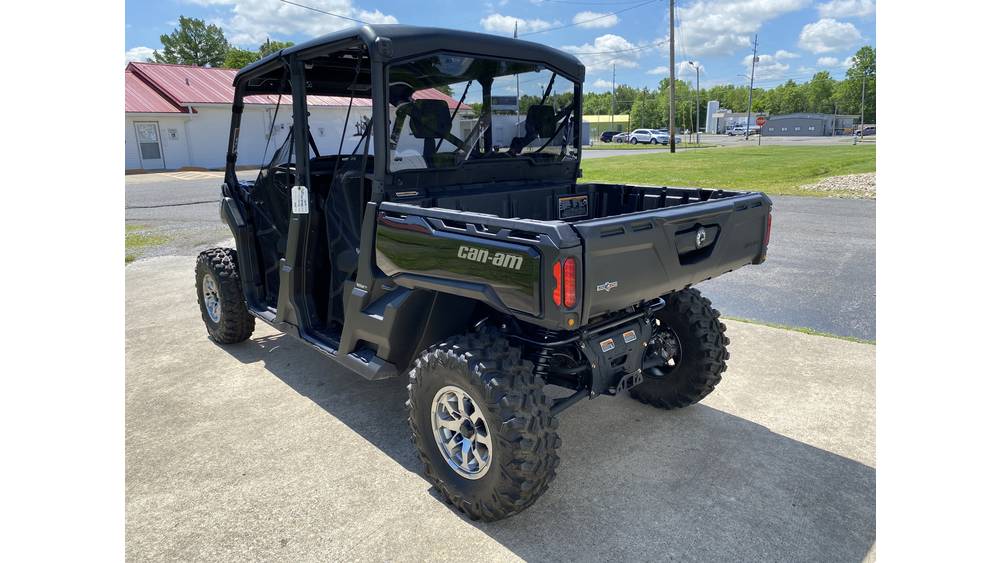

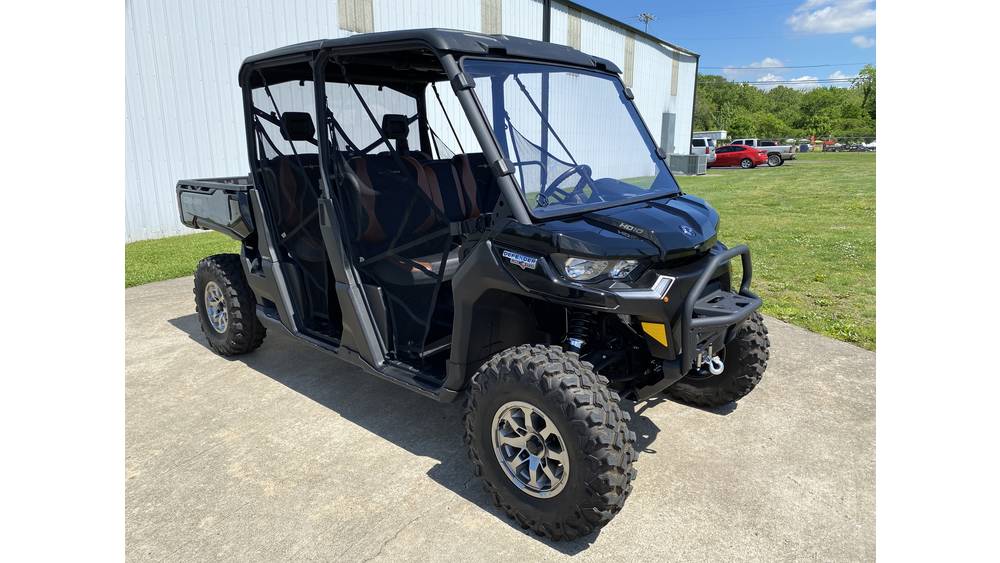

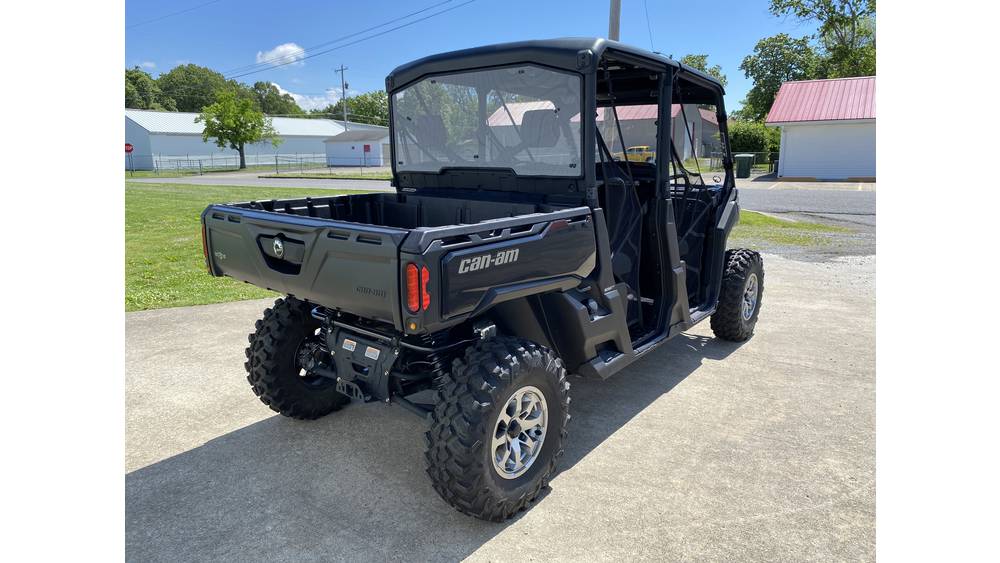

Pre-Owned 2024 Can-Am Defender Max HD10 Lonestar Edition

BUILT FOR HIGHER GROUND. The ultimate Defender MAX, upgraded from top to bottom: 6-person seating, industry-leading Rotax HD10 engine, unique interior trim—and tons of factory extras . The 2024 Can-Am Defender MAX HD10 Lonestar Edition represents the pinnacle of heavy-duty utility vehicles, combining legendary Rotax power with exclusive Texas Edition styling. Whether you’re hauling the whole crew across the ranch or tackling demanding job site tasks, this machine is built to handle it all with confidence and style.

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Engine	Rotax® HD10 976 cc V-Twin, 4-stroke, SOHC, liquid-cooled
Horsepower	82 hp (61.2 kW)
Torque	69 lb-ft (93.6 Nm)
Bore x Stroke	91 mm x 75 mm (3.58 in x 2.95 in)
Valves	8 valves (4 per cylinder), SOHC
Fuel System	Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Fuel Requirements	Regular Gas
Transmission	PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection; Extra-L / H / N / R / P
Drive System	Selectable Turf Mode / 2WD / 4WD with exclusive Smart-Lok*
Driving Assistance	Electronic Hill Descent Control; ECO™ / ECO™ Off / Work modes
Power Steering	Dynamic Power Steering (DPS)
Towing Capacity	2,500 lb (1,134 kg)
Fuel Capacity	10.6 gallons (40 L)
Estimated Dry Weight	1,977 lb (897 kg) (base model)
Seating Capacity	6 persons

SPEED & PERFORMANCE PROFILE

Dual-Range Transmission for Optimal Speed Control:

The 2024 Defender MAX HD10 Lonestar Edition features a dual-range Continuously Variable Transmission (CVT) with Extra-Low, High, Neutral, Reverse, and Park gearing that allows operators to match vehicle speed to the task at hand :

• High Range (H): For efficient transport between job sites and trail riding
• Extra-Low Range (Extra-L): Enhanced torque and controlled speeds for heavy hauling, towing, and technical terrain

This intelligent speed management system ensures you have the right power delivery for any situation—from cruising between work areas at efficient speeds to crawling over obstacles with precision control.

Electronic Hill Descent Control:

Standard Electronic Hill Descent Control provides confident, controlled descents on steep terrain—just release the throttle and the Defender maintains a steady pace downhill, allowing you to focus on steering .

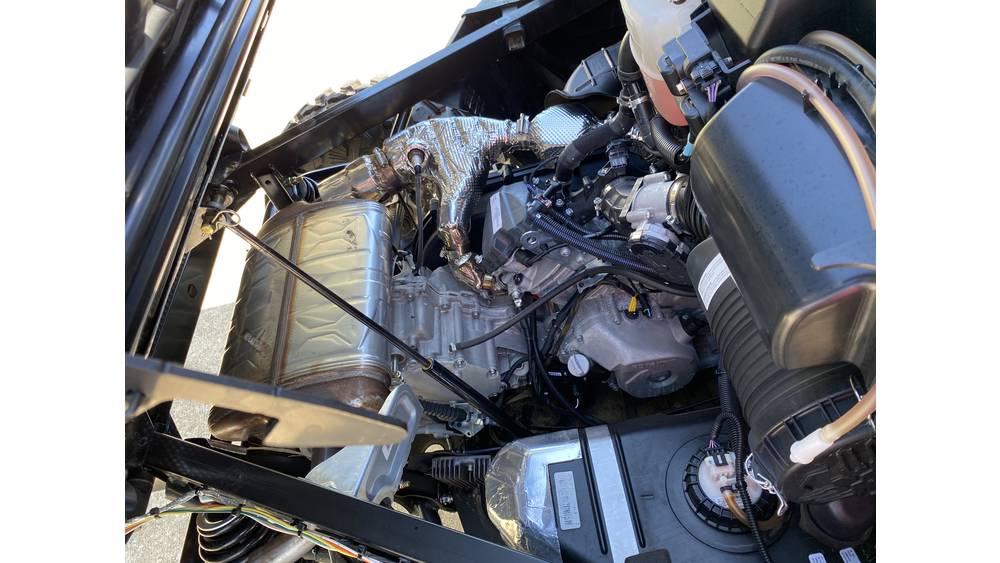

82 hp Rotax HD10 Engine – Industry-Leading Power:

Powering the Defender MAX HD10 Lonestar Edition is the proven Rotax HD10 976cc V-twin engine producing 82 horsepower and 69 lb-ft of torque . Engine highlights include:

• V-Twin configuration with SOHC and 8 valves for smooth, efficient power delivery
• Liquid cooling for consistent performance during demanding work conditions
• Intelligent Throttle Control (iTC™) with Electronic Fuel Injection for crisp throttle response at any altitude
• Regular gas fuel requirements for easy refueling
• Designed for heavy-duty work applications with legendary Rotax reliability

Selectable Drive Modes:

Three distinct driving modes allow you to tailor performance to tasks :

• ECO™ Mode: Enhanced fuel efficiency for longer range
• ECO™ Off: Full power delivery
• Work Mode: Optimized power delivery for heavy loads and precise control during utility tasks

Smart-Lok™ Differential Technology:

The advanced drive system offers exceptional traction with selectable modes :

• Turf Mode: Unlocks the rear differential for tight turns without damaging sensitive surfaces
• 2WD: Efficient operation for light-duty use
• 4WD: Enhanced traction with exclusive Smart-Lok™ technology for maximum grip in challenging conditions

LONESTAR EDITION EXCLUSIVE FEATURES

The Lonestar Edition represents the ultimate Defender MAX package with these premium factory-installed upgrades :

Feature	Description

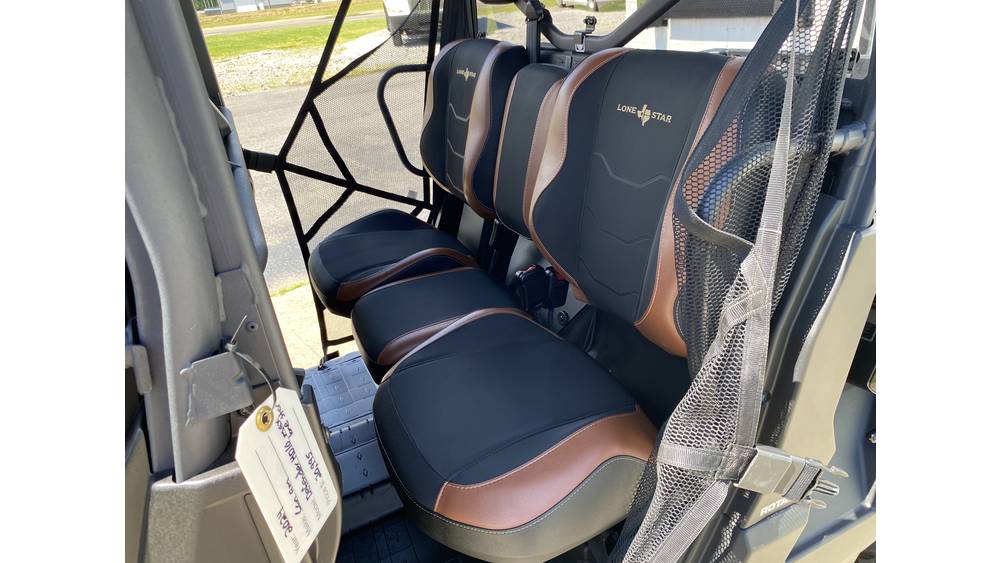

Dual VERSA-PRO Bolster Bench Seats	Reinforced seat skin featuring LONESTAR package trims, passenger seats flipping up for cargo versatility
Reinforced Seat Skin	Enhanced durability with exclusive Lonestar badging

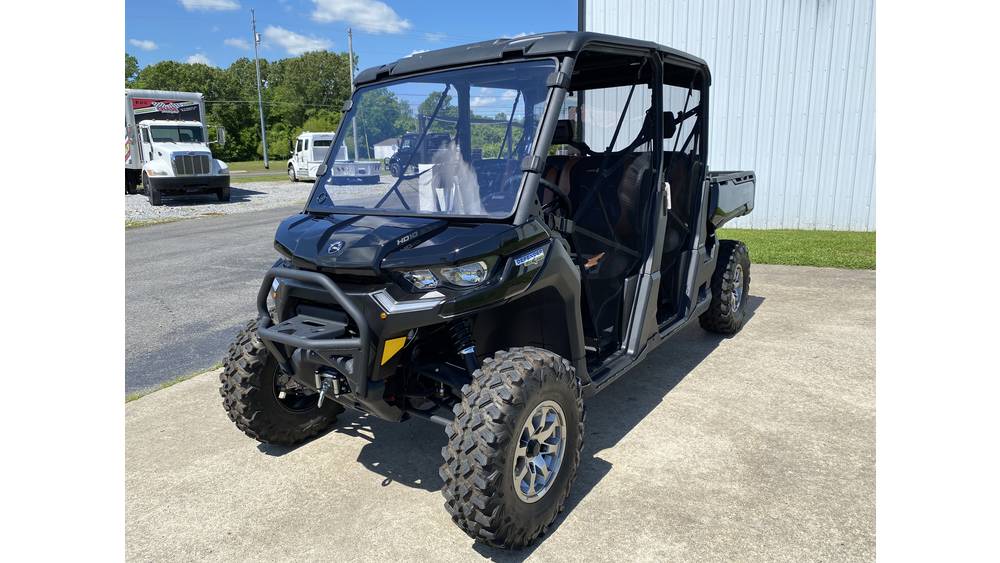

Heavy-Duty Front Steel Bumper	Maximum protection with aggressive Texas Edition styling
Aluminum Rock Sliders	Added side protection for challenging terrain
HMWPE Full Skid Plate	Complete undercarriage protection
2-Piece Full Hard Roof	Integrated weather protection

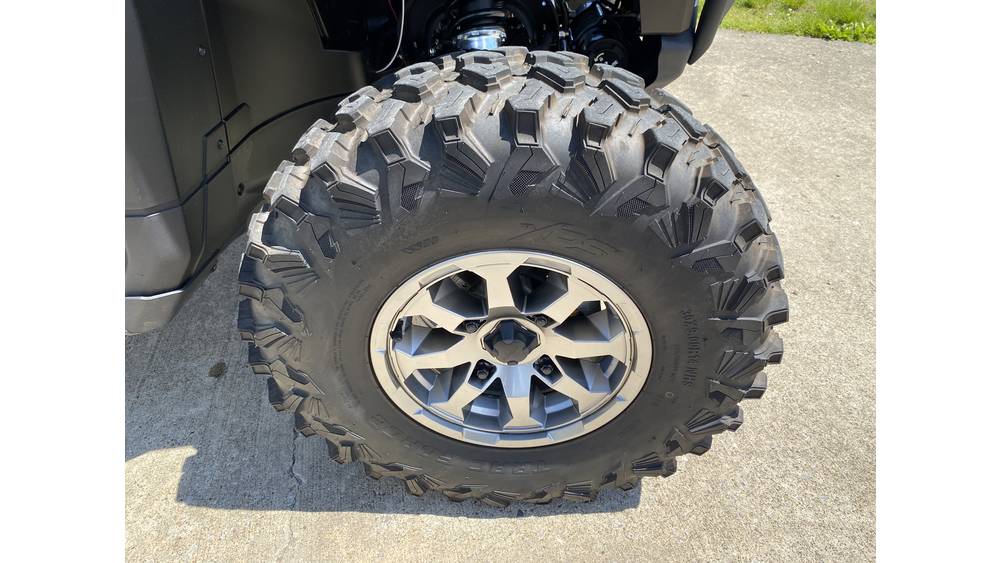

14-inch Cast-Aluminum Wheels	Premium wheels with XPS Trac Force 30-inch tires
30″ XPS Trac Force Tires	Aggressive 30 x 9/10-14 tires for exceptional traction

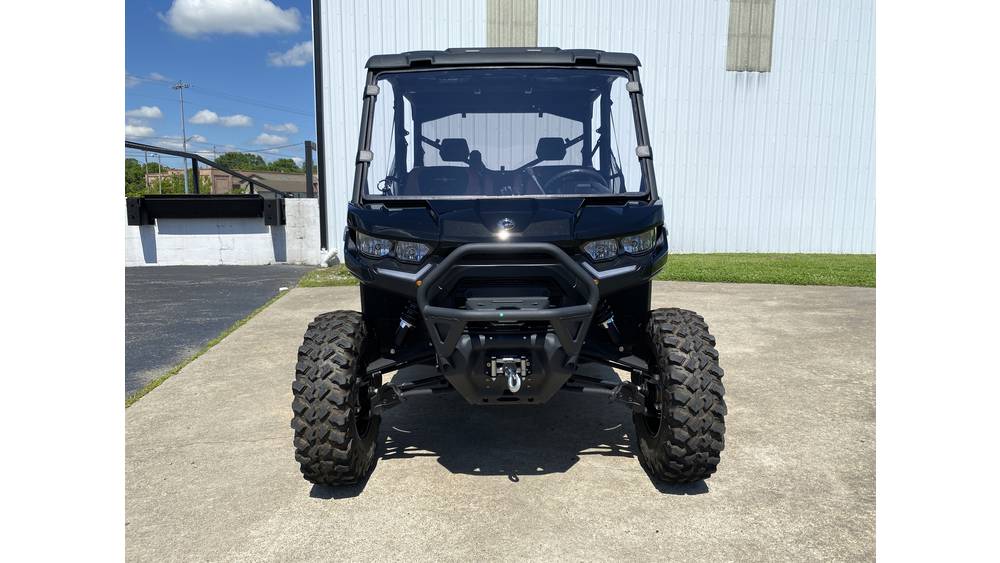

4,500 lb Winch	Factory-installed winch with roller fairlead for self-recovery
7.6-inch Wide Digital Display	Premium instrumentation with comprehensive vehicle data
Full LED Lighting	Front lighting output 140W with LED signature and LED tail lights
Adjustable Tilt Steering	Customizable driver position for all-day comfort

SUSPENSION & CHASSIS

Component	Specification
Front Suspension	Arched double A-arm with sway bar; 12 inches (30.5 cm) travel
Front Shocks	Twin tube gas-charged shocks
Rear Suspension	Arched TTA (Trailing Torsional A-arm) with external sway bar; 12 inches (30.5 cm) travel
Rear Shocks	Twin tube gas-charged shocks
Frame	Profiled steel cage, ROPS approved
Ground Clearance	14 inches (35.6 cm)
Wheelbase	115.5 inches (294 cm)

Ride Quality:

The Defender’s suspension is engineered to deliver a confident, comfortable ride across diverse terrain. With 12 inches of travel front and rear, the independent front and TTA rear suspension soak up rough terrain while maintaining composure under heavy loads . The arched A-arms provide excellent ground clearance for navigating obstacles .

DIMENSIONS & CAPACITIES

Measurement	Specification
Overall Length	158.9 inches (403.6 cm)
Overall Width	65 inches (165.1 cm)
Overall Height	80.9 inches (228.5 cm)

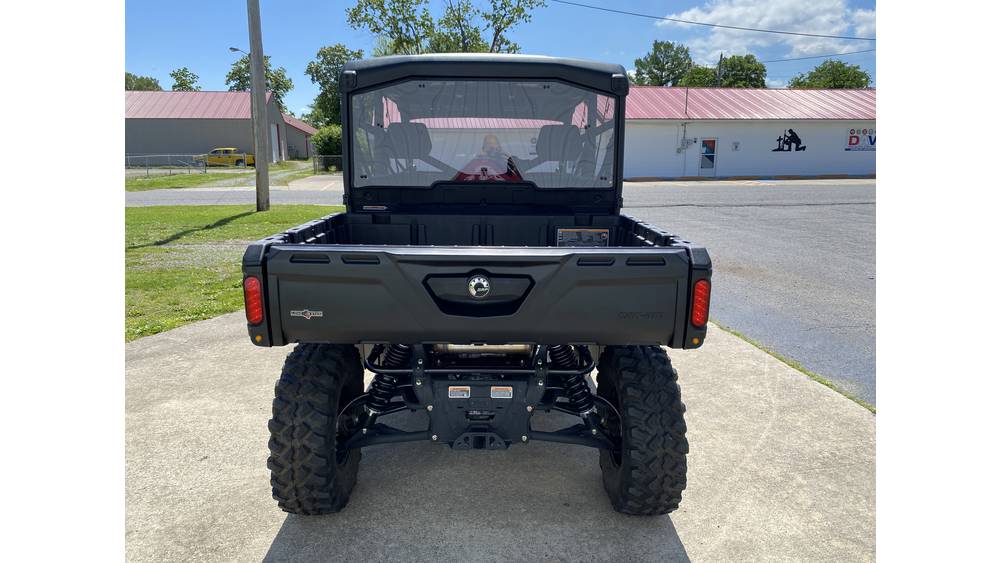

Cargo Box Dimensions (L x W x H)	38 x 54.5 x 12 inches (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity	1,000 lb (454 kg)
Tailgate Load Capacity	250 lb (113.4 kg)
Payload Capacity	1,700 lb (771 kg)
Towing Capacity	2,500 lb (1,134 kg)
Storage Capacity	Total: 16.9 gallons (63.9 L)
Fuel Capacity	10.6 gallons (40 L)
Hitch Type	Standard 2-inch receiver

TECHNOLOGY & FEATURES

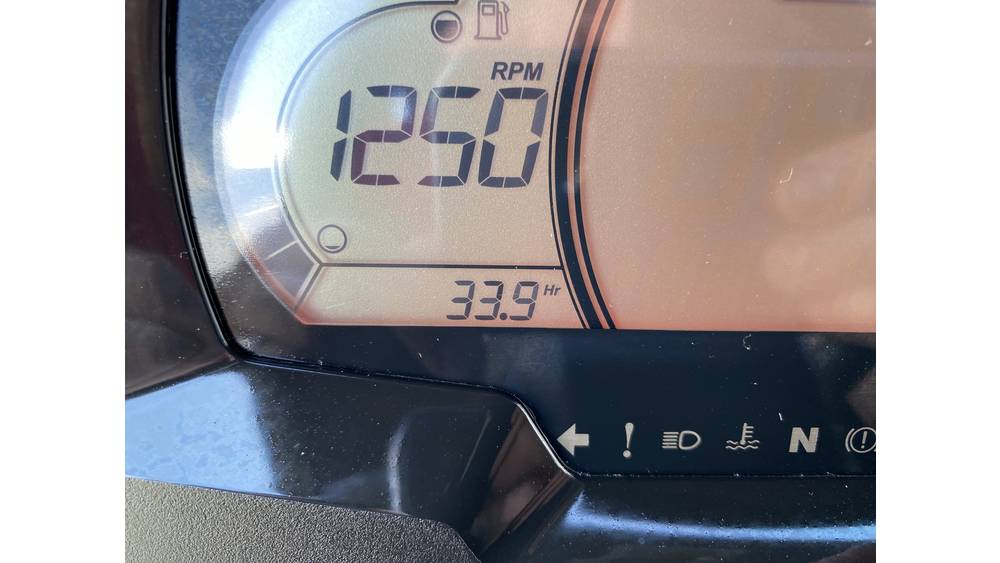

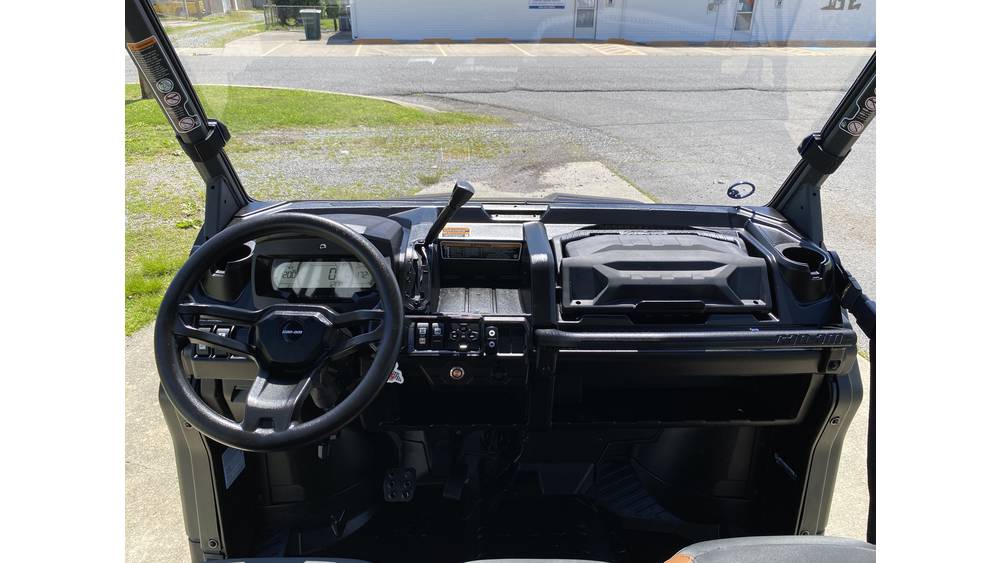

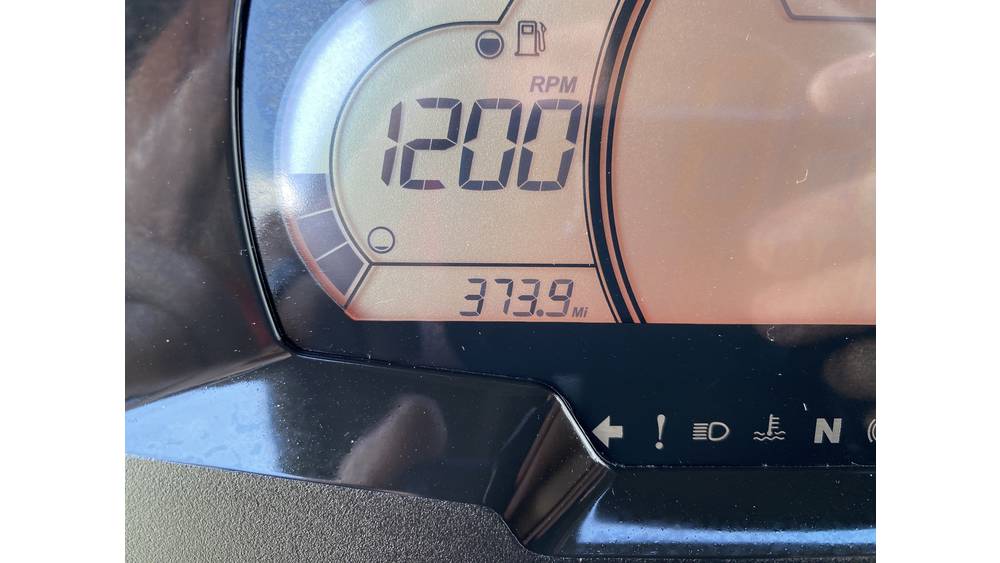

7.6-inch Wide Digital Display with Keypad:

Complete ride information at a glance with the premium digital display :

• Digital speedometer, tachometer, odometer, trip and hour meters
• Fuel gauge and gear position indicator
• Drive mode indicators (ECO™, Work Mode)
• Diagnostic displays

Electrical System :

• Magneto Output: 650-W for accessory power
• Battery: 12-V (30 amp/h)
• DC outlet (10-A) and dual USB ports (10-A) for device charging

Lighting :

• Front lighting output: 140 W with LED signature
• LED tail lights for enhanced visibility

Braking System :

• Front: Dual 220 mm disc brakes with hydraulic twin-piston calipers
• Rear: Dual 220 mm disc brakes with hydraulic twin-piston calipers
• Brake holding mechanism for added safety

Utility Features :

• Standard 2-inch hitch receiver with 2,500 lb towing capacity
• Heavy-duty front steel bumper
• Aluminum rock sliders for added protection
• HMWPE full skid plate
• 2-piece full hard roof
• Under-seat storage with underside hooks
• Dual USB ports for device charging

Interior & Comfort:

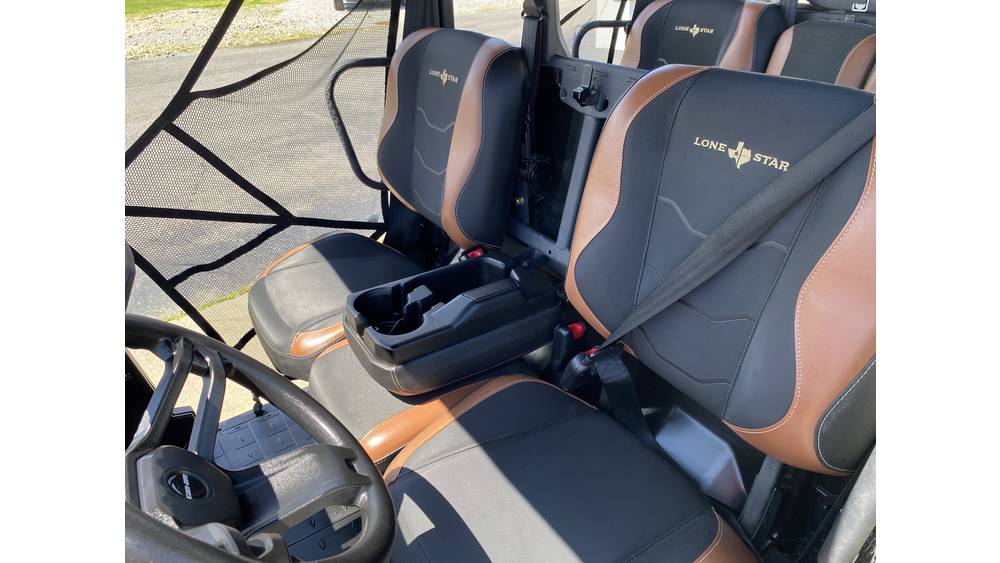

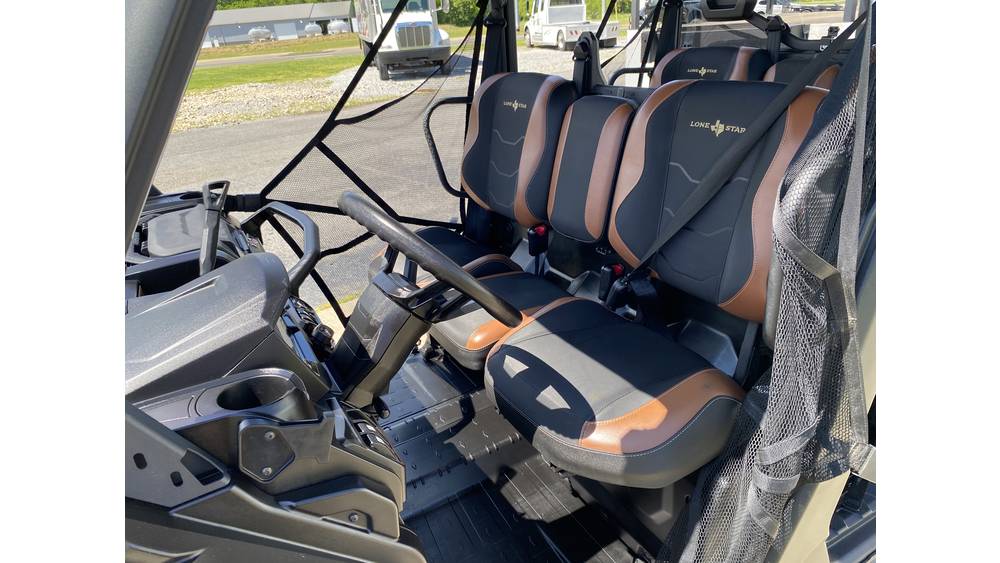

• Dual VERSA-PRO bolster bench seats with passenger seats flipping up for cargo versatility
• Adjustable driver seat with underside hooks
• Reinforced seat skin featuring LONE STAR package trims
• Adjustable tilt steering wheel
• 4 cupholders

WARRANTY

Coverage	Term
Factory Warranty	1-year BRP limited warranty
