Pre-Owned 2023 CFMOTO ZForce 800 Trail

Description

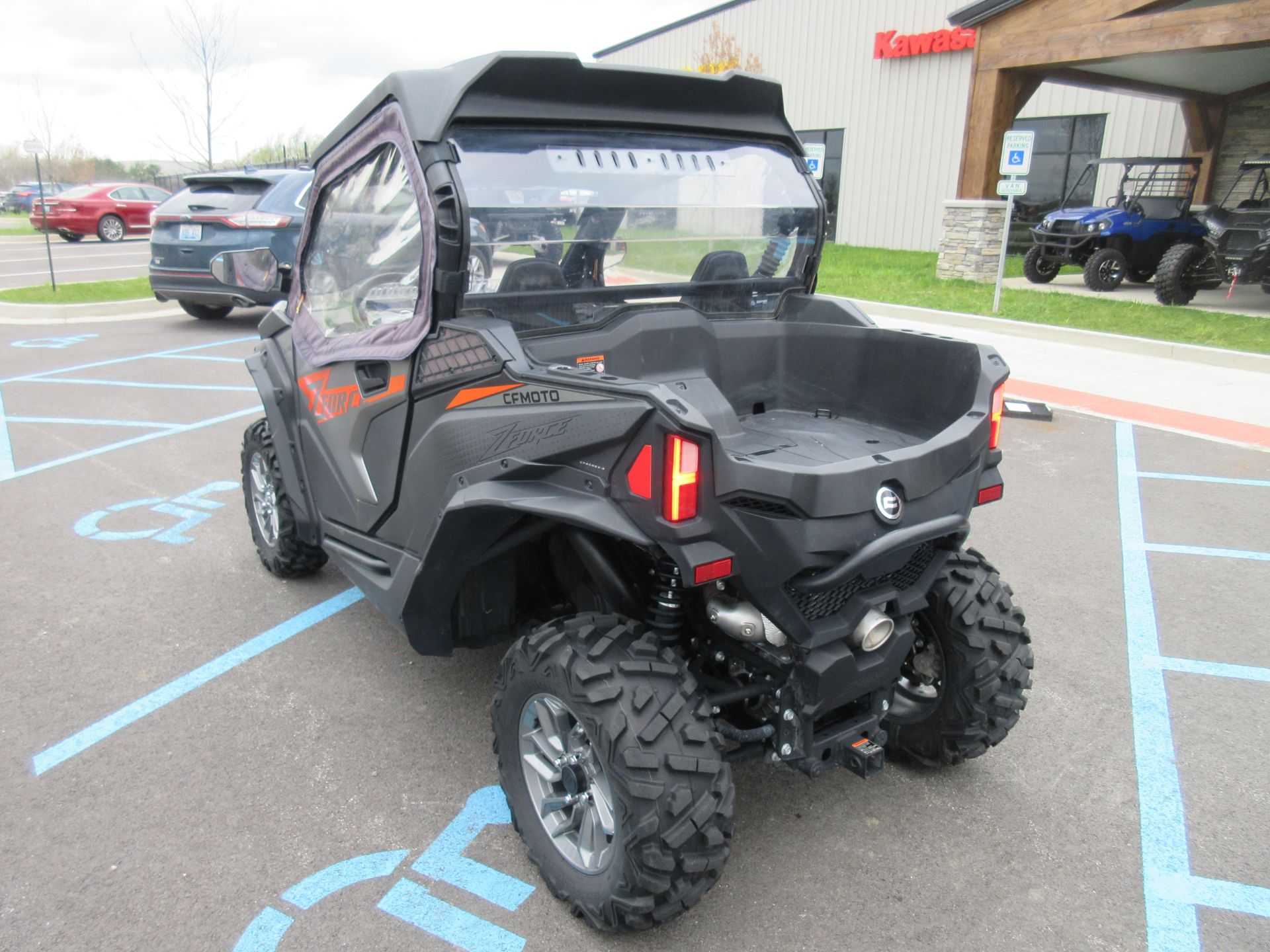

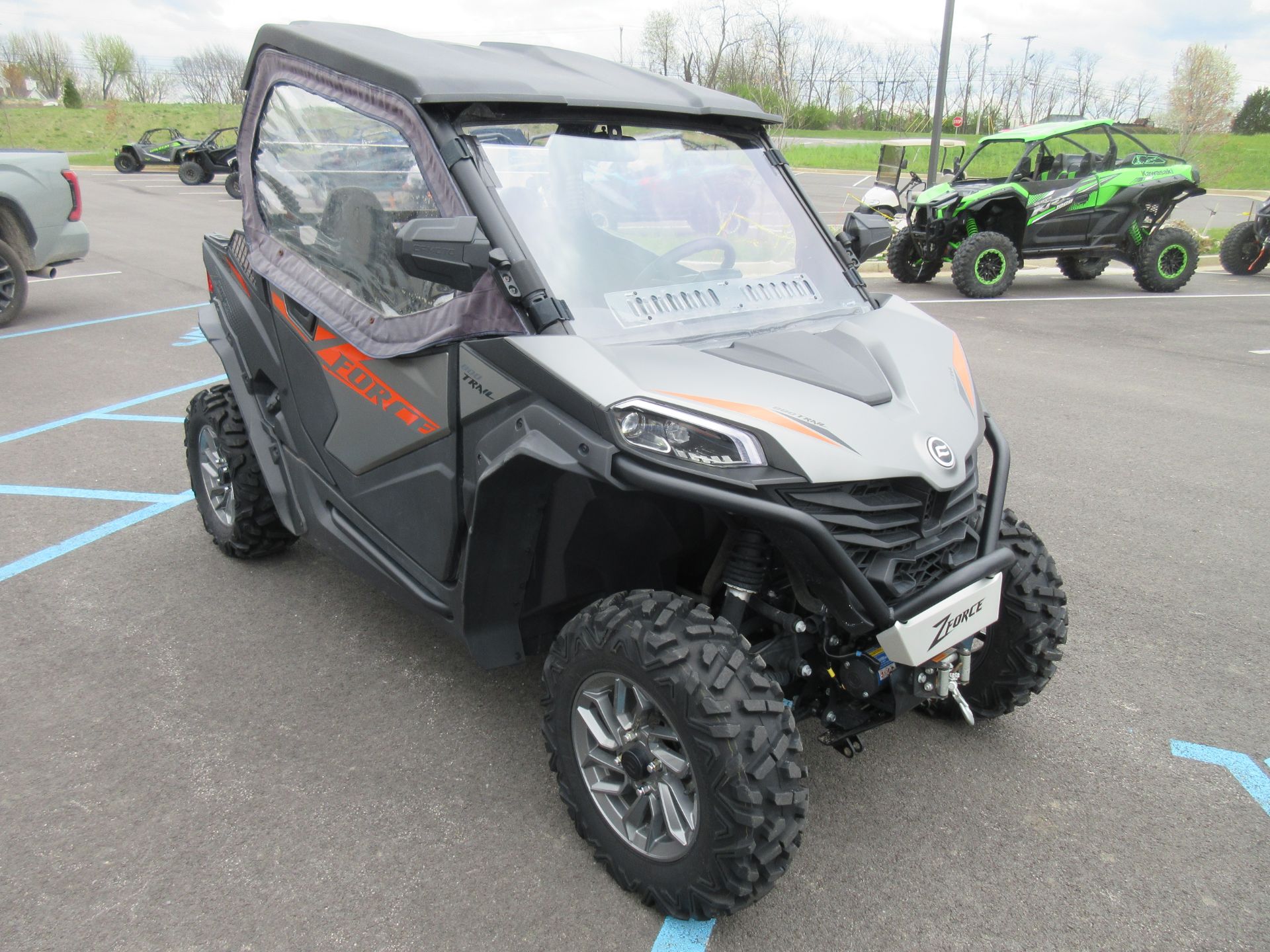

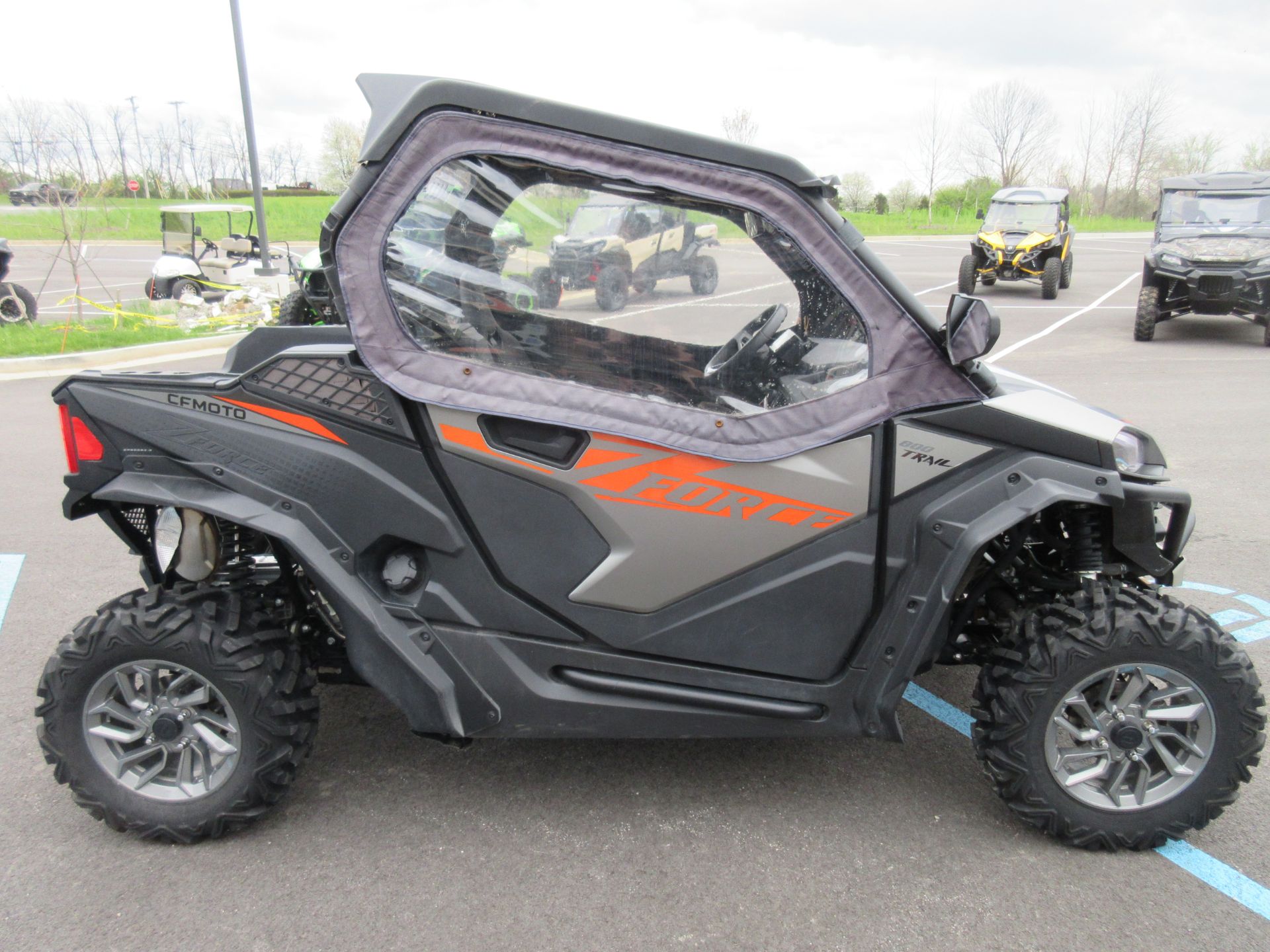

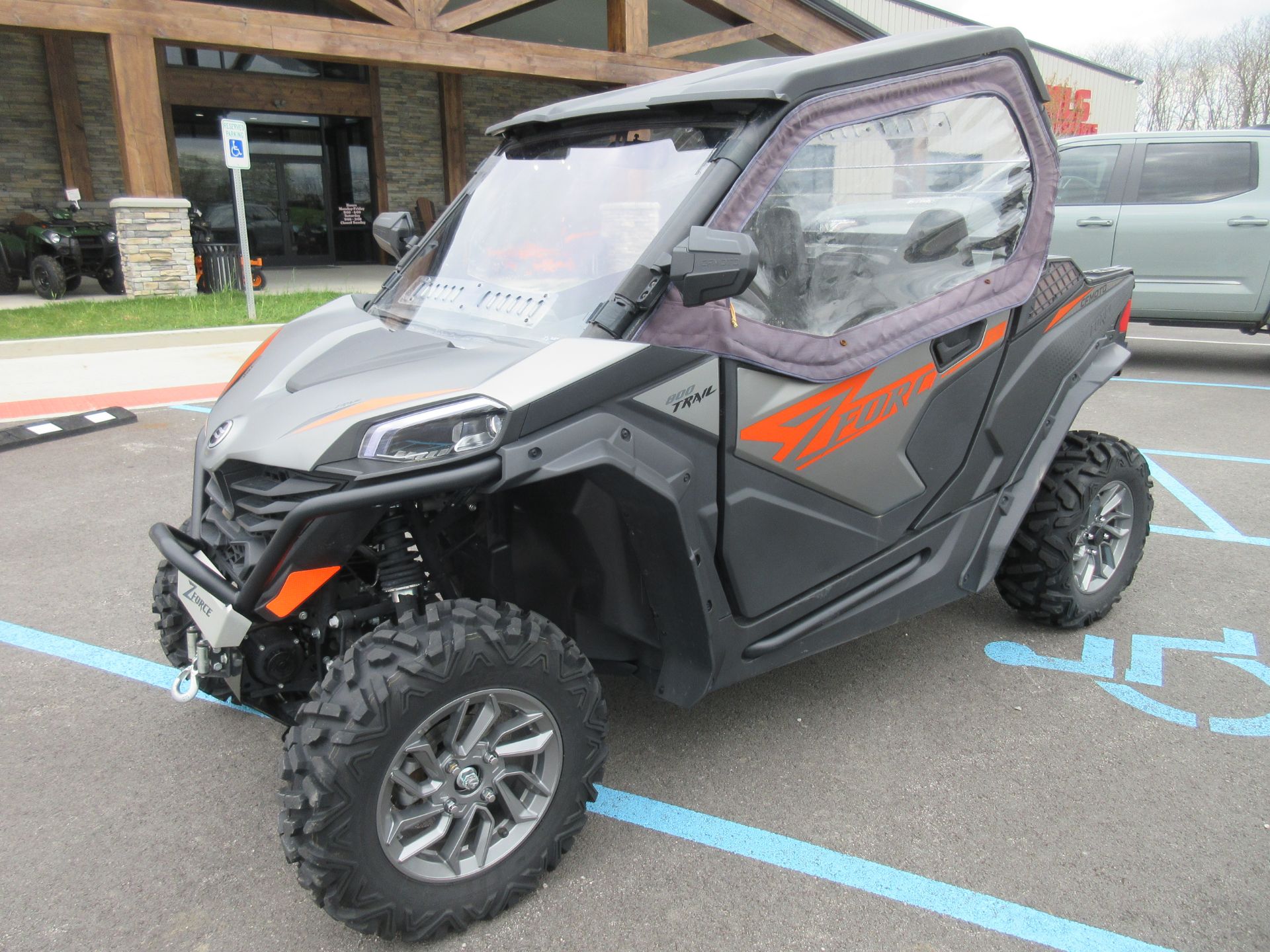

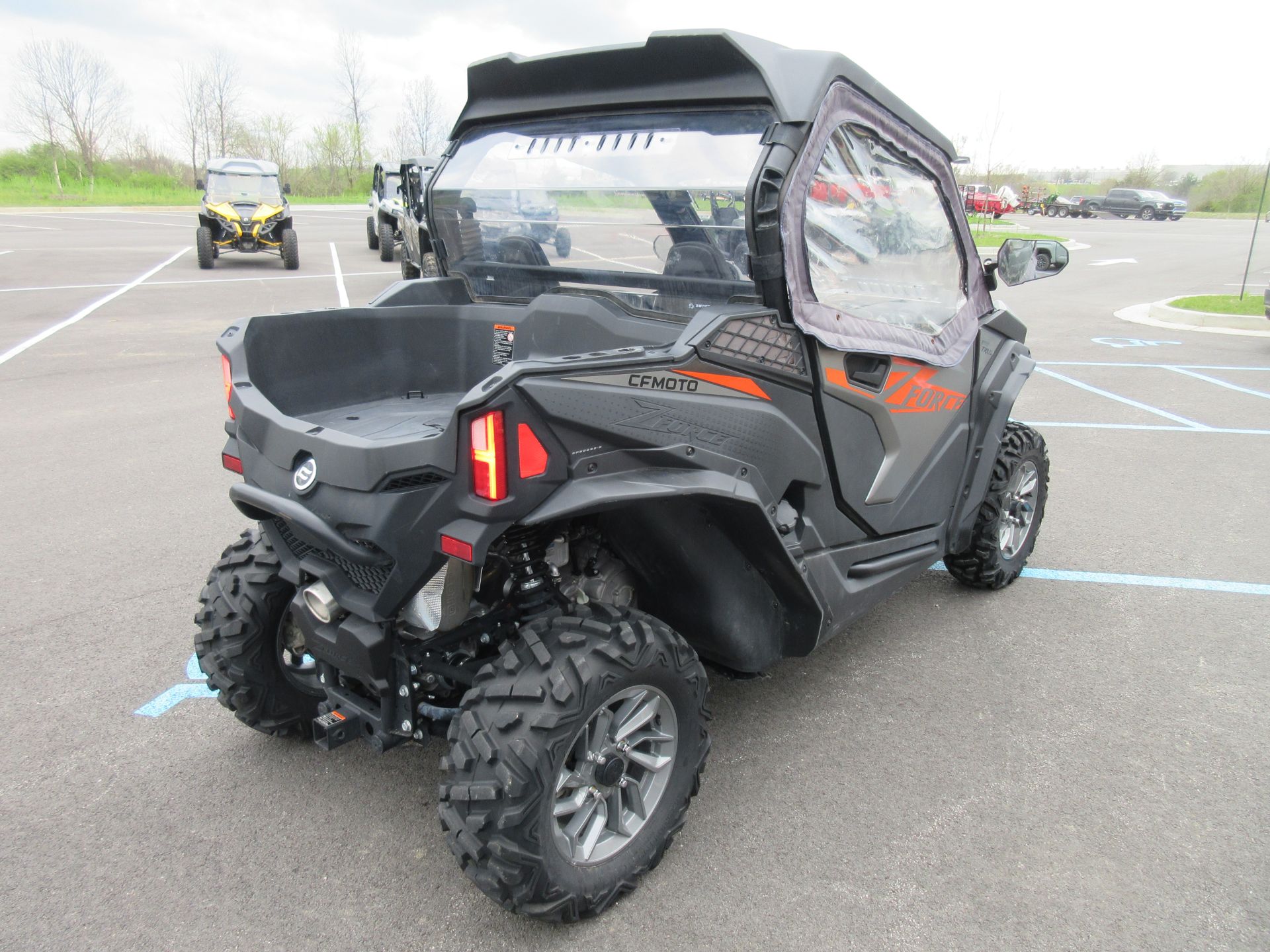

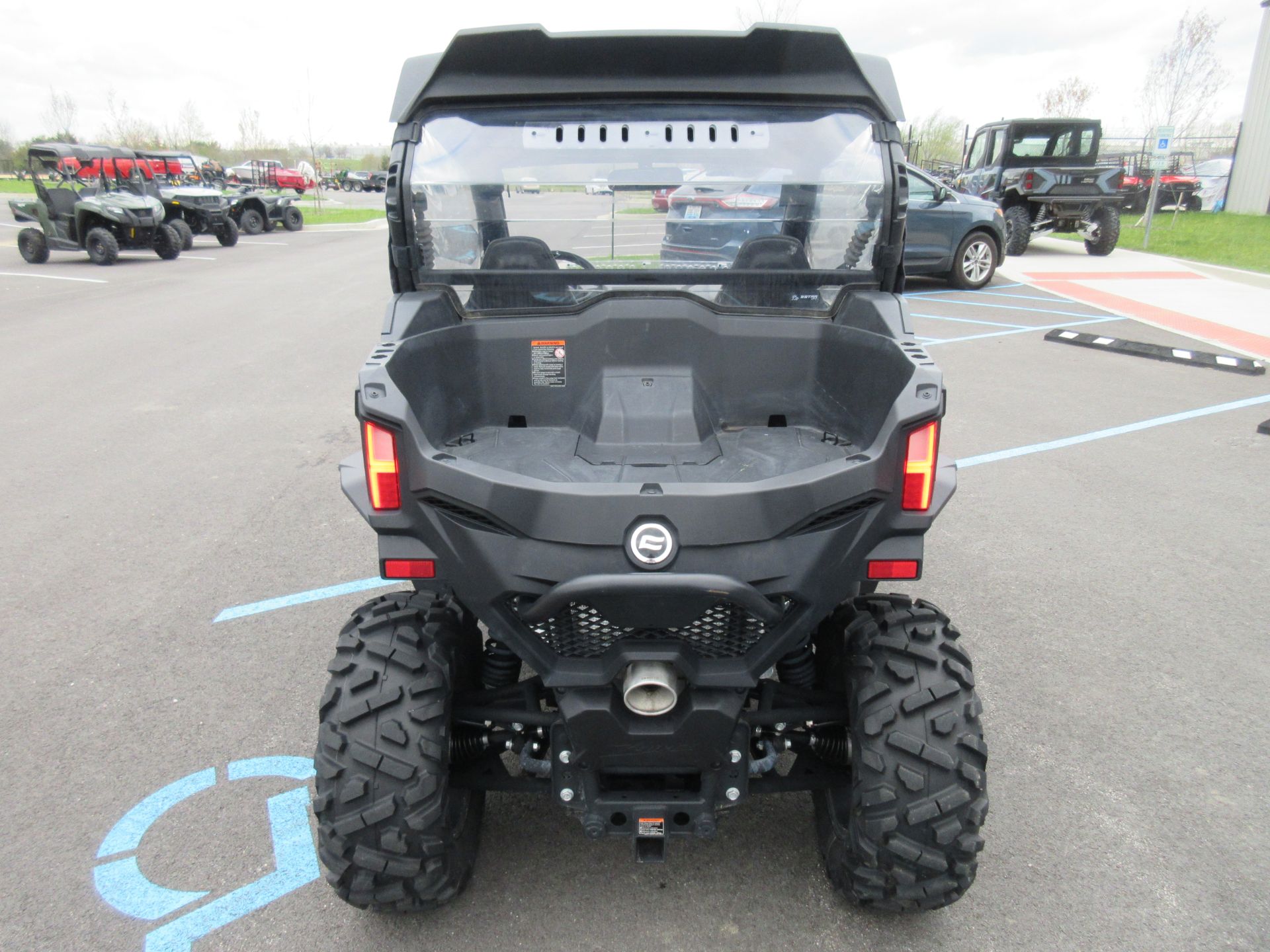

Pre-Owned 2023 CFMOTO ZForce 800 Trail

Features

The 2023 CFMOTO ZForce 800 Trail is redesigned for riders who want a tactile and dynamic trail experience without spending a fortune. With its potent 62hp V-twin engine, fully independent suspension, and an extensive list of standard features including a roof, winch, and EPS, this machine delivers exceptional value straight from the factory .

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Engine	V-Twin, 4-stroke, SOHC, 8-valve, liquid-cooled
Displacement	800 cc
Bore x Stroke	91 x 61.5 mm
Compression Ratio	10.3:1
Horsepower	62 hp @ 6,700 rpm
Torque	53 lb-ft (72 Nm) @ 6,000 rpm
Fuel System	Delphi® Electronic Fuel Injection
Fuel Requirements	Regular Gasoline
Fuel Capacity	7.1 gal (27 L) / 6.5 gal (24.6 L) depending on market
Starting System	Electric
Transmission	CVTech-IBC Continuously Variable Transmission (CVT); L / H / N / R / P
Drive System	Selectable 2WD / 4WD with locking front differential
Power Steering	Electric Power Steering (EPS) – variable assist
Towing Capacity	1,500 lb (680 kg)
Curb / Dry Weight	1,267-1,390 lb (575-630 kg)
Seating Capacity	2 persons
Warranty	12-month limited warranty (varies by region; 5-year powertrain available in Canada)

SPEED & PERFORMANCE PROFILE

Trail-Optimized Power and Speed:

The 2023 ZForce 800 Trail is specifically engineered for trail riding, with a 50-inch width that allows access to tight or restricted trails where wider machines cannot go . This machine is designed to have enough power to make things fun without being a “turbo-powered screamer,” making it perfect for recreational cruising .

The dual-range CVT transmission allows operators to match vehicle speed to the task at hand:

• High Range (H): For spirited trail riding and efficient transport between trail sections
• Low Range (L): Enhanced torque and controlled speeds for technical terrain and obstacles

62 hp 800cc V-Twin Engine:

Powering the ZForce 800 Trail is a responsive 800cc V-twin engine producing 62 horsepower at 6,700 rpm and 53 lb-ft of torque at 6,000 rpm . Engine highlights include:

• V-Twin configuration with SOHC and 8 valves (4 per cylinder) for efficient breathing
• Liquid cooling for consistent performance during demanding trail operation
• Delphi® Electronic Fuel Injection for crisp throttle response and reliable starting in all conditions
• Two selectable driving modes – one for speed and one for fuel economy

CVTech-IBC CVT Transmission:

The CVTech-IBC clutch system features a variable transmission with high and low ranges, delivering smooth acceleration and reliable performance . Transmission ranges include:

• H (High Range): For normal trail riding and higher-speed operation
• L (Low Range): Enhanced torque for technical terrain at reduced speeds
• N (Neutral) / R (Reverse) / P (Park) with parking lock shift system

Selectable 2WD/4WD with Locking Front Differential:

The advanced drive system offers exceptional traction with dash-mounted controls:

• 2WD: Efficient operation for light-duty use and cruising
• 4WD: Enhanced traction with locking front differential for maximum grip in challenging conditions

ALL-NEW GENERATION 2 CHASSIS & SUSPENSION

The 2023 model features a completely redesigned platform with sporty new suspension:

Component	Specification (GEN 2)
Front Suspension	Independent arched double A-arm with gas-charged shocks
Front Travel	10 inches (255 mm)
Rear Suspension	Torsional trail arm system (like higher-end sports machines)
Rear Travel	12 inches (305 mm)
Front Shocks	Spring pre-load adjustable, gas-charged
Rear Shocks	Premium shocks with separate rebound/compression adjustment
Frame	Steel tubular frame, ROPS certified cage
Wheelbase	90 inches (2,286 mm)
Ground Clearance	10 inches (254 mm)
Turning Diameter	187 inches (4.75 m) / 179 inches (4.7 m)

Ride Quality:

The new chassis and suspension updates combine to give you a spirited ride and lets you drive aggressive when you want to, but keeps you planted when you are just cruising around—exactly what you want from a sporty trail machine . Hydraulic disc brakes bring you to a halt with confident stopping power .

DIMENSIONS & CAPACITIES

Measurement	Specification (GEN 2)
Overall Length	120-120.6 inches (3,065 mm)
Overall Width	50-54.5 inches (1,270-1,385 mm) – 50″ model is trail-compliant
Overall Height	71-71.6 inches (1,790-1,820 mm)
Wheelbase	90 inches (2,286 mm)
Ground Clearance	10 inches (254 mm)
Rear Box Capacity	330 lb (150 kg)
Fuel Capacity	7.1 gal (27 L)

TIRES & BRAKES

Component	Specification (GEN 2)
Front Tires	26 x 8-14 / 26 x 9-14 (6-ply rated on some models)
Rear Tires	26 x 9-14 / 26 x 11-14 (6-ply rated on some models)
Wheels	14-inch cast aluminum alloy (black on GEN 2)
Front Brakes	Dual hydraulic disc
Rear Brakes	Dual hydraulic disc

STANDARD FEATURES & EQUIPMENT

The 2023 ZForce 800 Trail comes exceptionally well-equipped from the factory :

Category	Features
Protection & Recovery	3,500 lb winch , full roof , half doors , full skid plates , stainless steel bumpers , brush guard

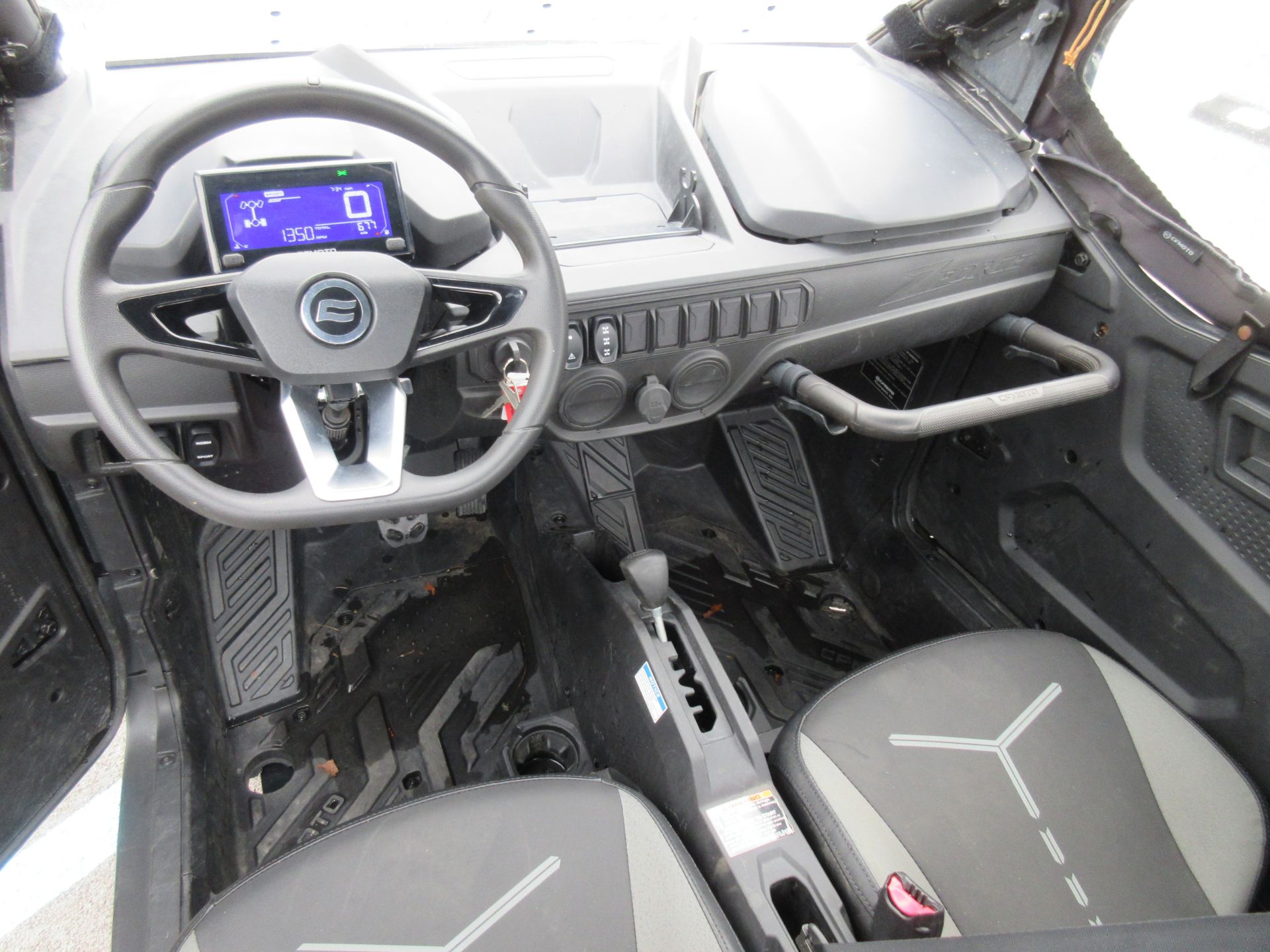

Cockpit & Controls	5-inch TFT digital display , flat-bottom sport steering wheel , tilt steering , adjustable passenger grab bar , 12V outlet , USB charging station
Lighting	LED headlights with integrated turn signals, 80% brighter than halogen , LED tail lights
Comfort	Sport seats with improved adjustability , 3-point safety belts , lateral mirrors
Technology	CFMOTO RIDE App compatible , Electric Power Steering (EPS)

COLORS & STYLING

The 2023 CFMOTO ZForce 800 Trail is available in multiple color options depending on market :

• Nebula Black (GEN 2)
• Royal Blue (GEN 2)
• Galaxy Grey
• White
• Orange

The 2023 model features a completely redesigned, eye-catching new look .

WARRANTY

Coverage	Term
Factory Warranty	12-month limited warranty
Extended Coverage	CFMOTO Canada offers 5-year limited warranty (12-month manufacturer + 48-month powertrain)
