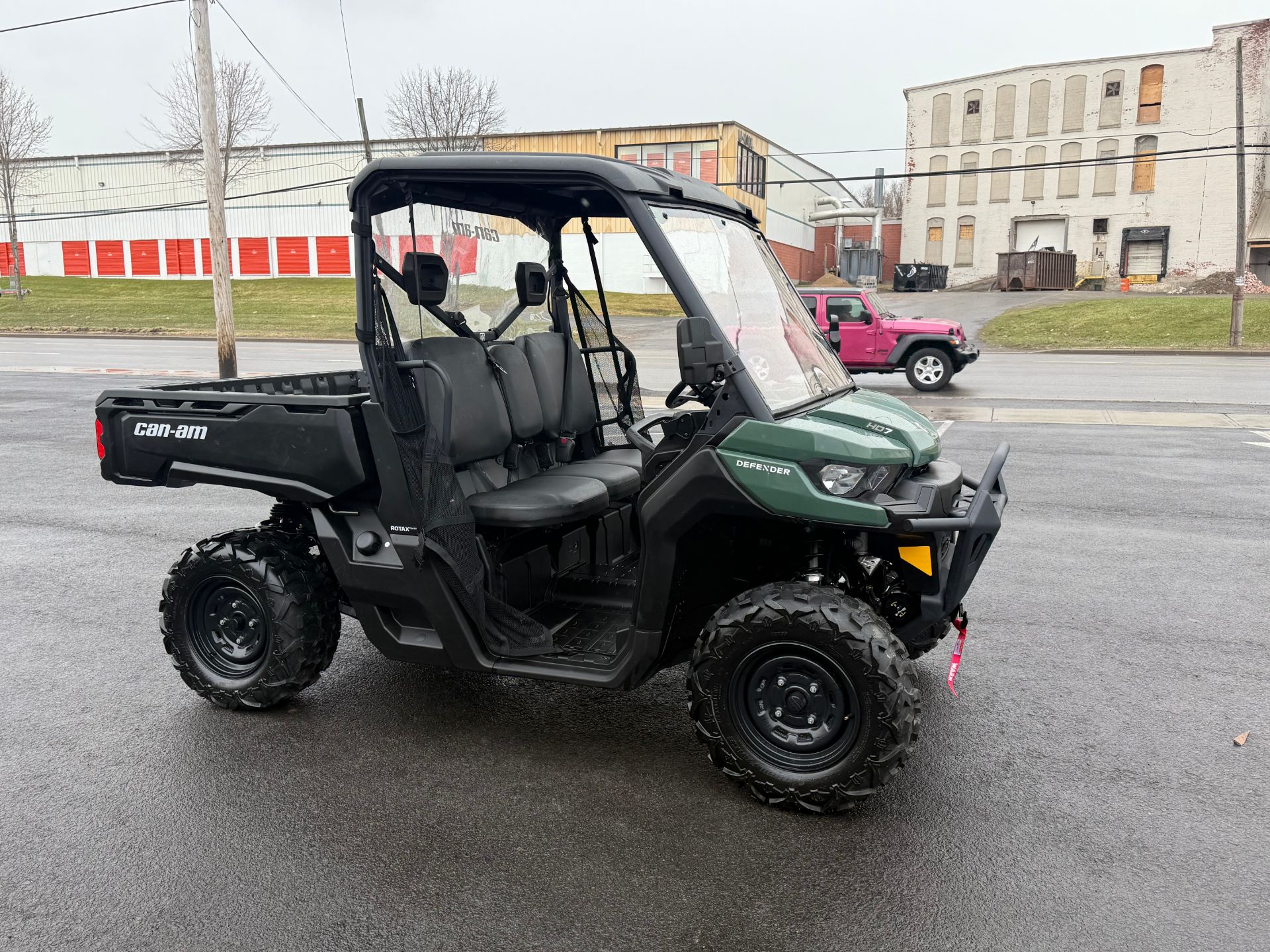

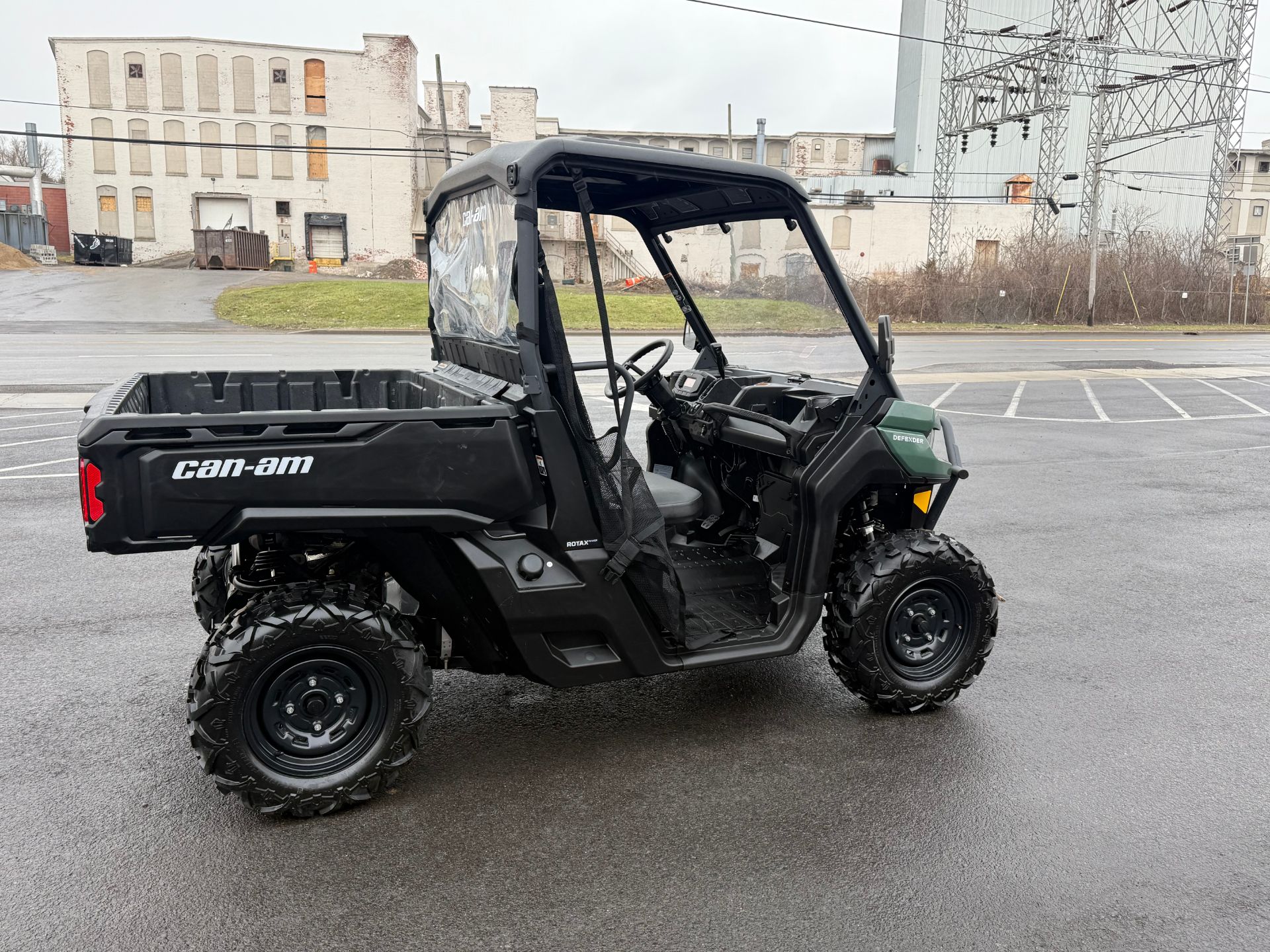

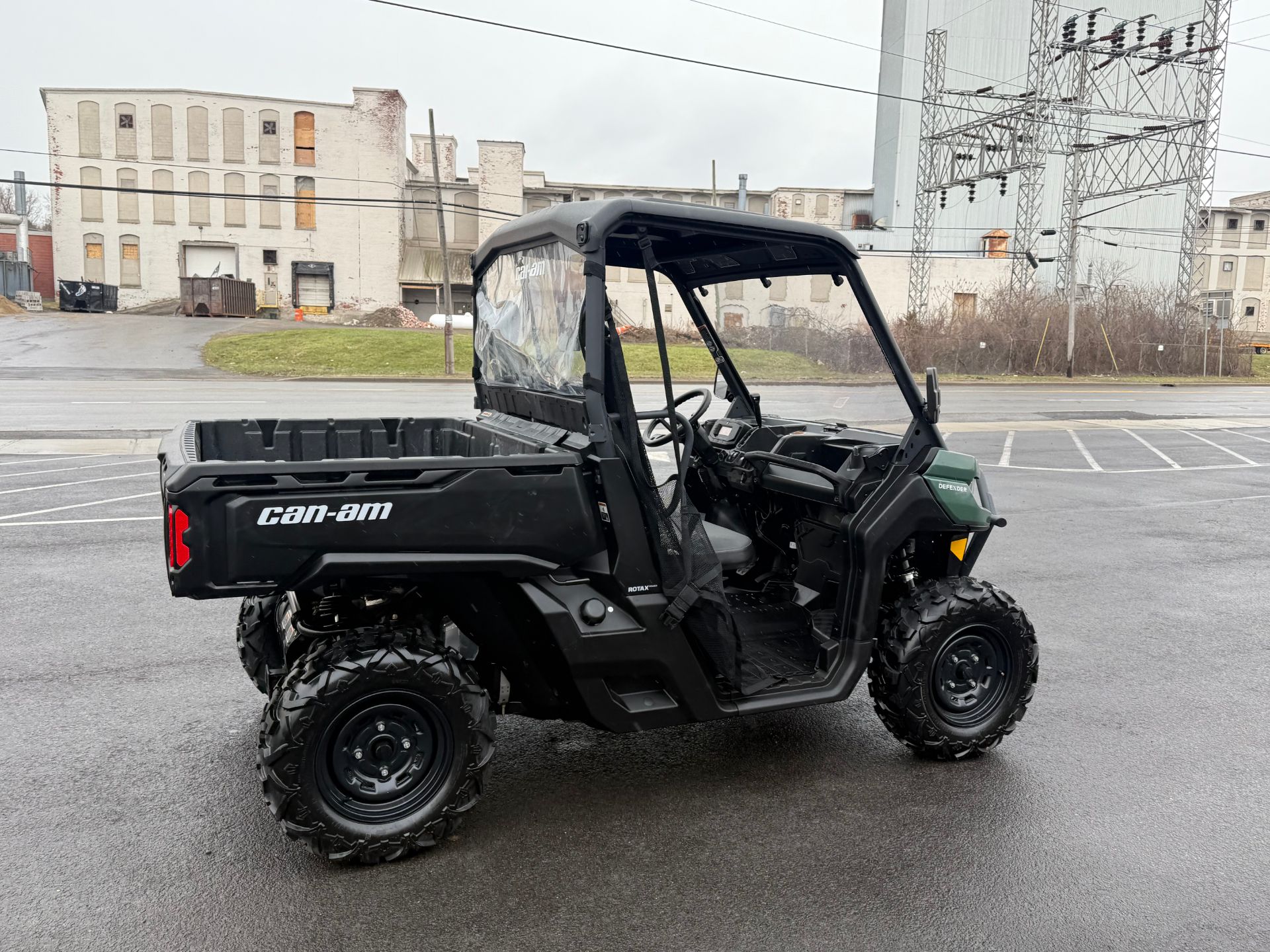

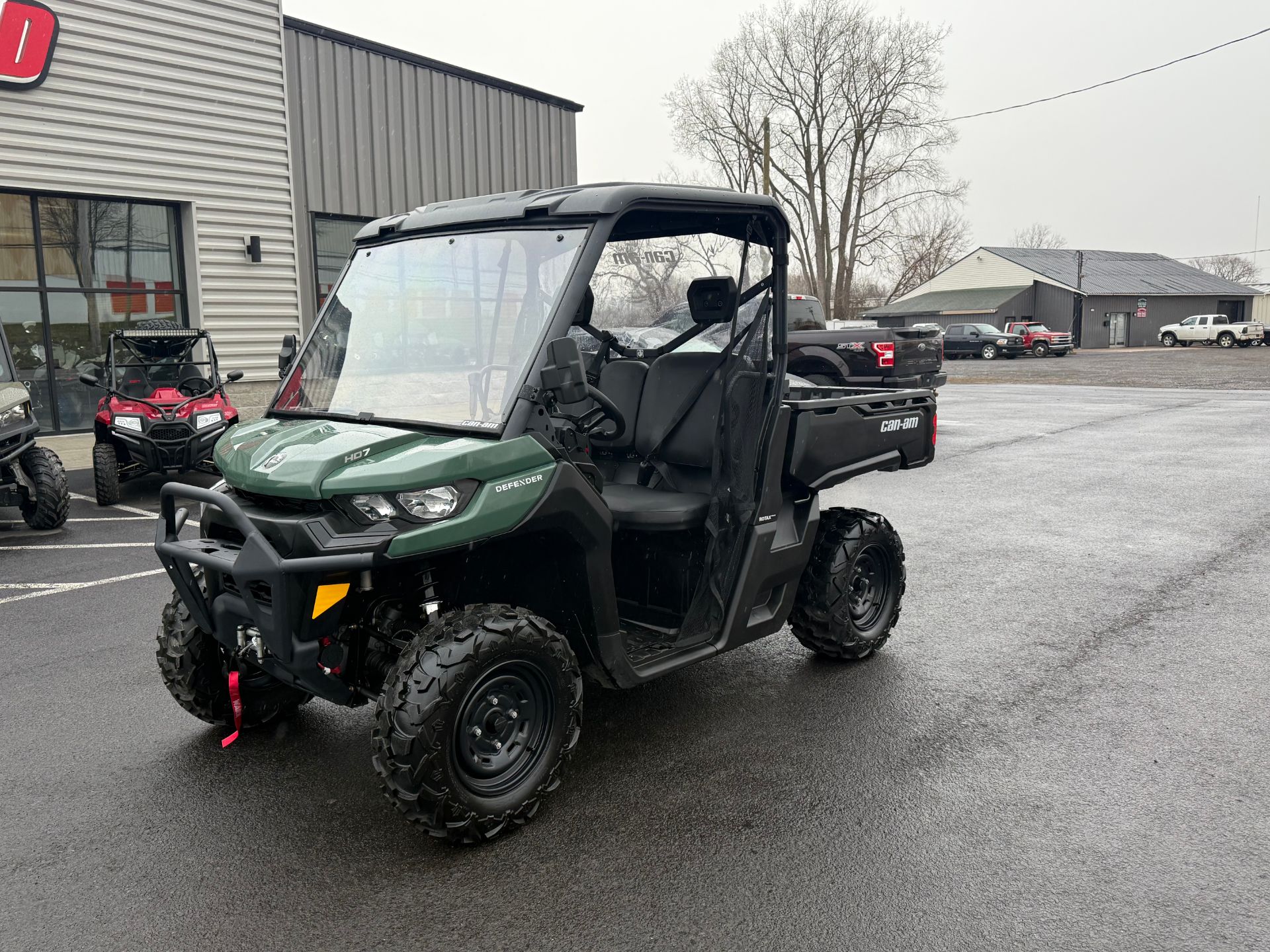

Pre-Owned 2023 Can-Am Defender HD7

BUILT EXTRA TOUGH TO TAKE YOU WAY BEYOND THE DAILY GRIND. The 2023 Can-Am Defender HD7 is the most capable Can-Am Side-by-Side for work . On worksites, hunting trips, in agribusiness & anywhere you need it gets the job done right . Designed for reliability and exceptional torque, this beast shines when it comes to delivering low-end power for towing, hauling, and conquering challenging terrains while carrying heavy loads .

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Engine	Rotax® HD7 ACE (Advanced Combustion Efficiency) 650 cc Single Cylinder, Liquid-Cooled, SOHC
Horsepower	52 hp (38.8 kW)
Torque	41 lb-ft (55.6 Nm) – “King of the mid-cc class!”
Valves	8 valves (4 per cylinder)
Bore x Stroke	91 mm x 61.5 mm (3.58 in x 2.42 in)
Compression Ratio	Not specified
Fuel System	Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Top Speed	Speed-Managed via High/Low Range – optimized for work and towing
Transmission	pDrive primary CVT with engine braking and Electronic Drive Belt Protection; L / H / N / R / P
Drive System	Selectable Turf Mode / 2WD / 4WD with Visco-Lok® auto-locking front differential
Driving Assistance	Electronic Hill Descent Control; ECO™ / ECO™ Off / Work modes
Power Steering	Dynamic Power Steering (DPS) – standard on DPS models
Towing Capacity	2,500 lb (1,134 kg) – industry-leading
Cargo Box Capacity	1,000 lb (454 kg) – half-ton hauling capability
Payload Capacity	1,700-1,750 lb (771-794 kg)
Fuel Capacity	10.6 gallons (40 L)
Estimated Dry Weight	1,456-1,471 lb (660-667 kg)

SPEED & PERFORMANCE PROFILE

Dual-Range Transmission for Optimal Speed Control:

The 2023 Defender HD7 is purpose-built for utility and work applications, featuring a dual-range Continuously Variable Transmission (CVT) that allows operators to match vehicle speed to the task at hand :

• High Range (H): For efficient transport between job sites and light-duty operation
• Low Range (L): Enhanced torque and controlled speeds for heavy hauling, towing, and technical terrain

This intelligent speed management system ensures you have the right power delivery for any situation—from cruising between work areas at efficient speeds to crawling over obstacles with precision control. The Defender’s engine may offer slightly less horsepower than sport models, but it compensates with exceptional towing capabilities and payload capacity .

Electronic Hill Descent Control:

Standard Electronic Hill Descent Control provides confident, controlled descents on steep terrain—just release the throttle and the Defender maintains a steady pace downhill, allowing you to focus on steering .

52 hp Rotax HD7 Engine – “King of the Mid-CC Class!”

Powering the Defender HD7 is the proven Rotax HD7 650cc single-cylinder engine producing 52 horsepower and 41 lb-ft of torque . The HD7 Engine is the king of the mid-cc class . Engine highlights include:

• Advanced Combustion Efficiency (ACE) technology for optimal power and fuel economy
• SOHC design with 8 valves (4 per cylinder) for efficient breathing
• Liquid cooling for consistent performance during demanding work conditions
• Intelligent Throttle Control (iTC™) with Electronic Fuel Injection for crisp throttle response in all conditions
• Quieter operation with less vibration than previous generations
• No break-in period, early maintenance, or frequent valve adjustments required

Selectable Drive Modes with Visco-Lok® 4WD:

The advanced drive system offers three selectable modes for maximum traction :

• Turf Mode: Unlocks the rear differential for tight turns without damaging sensitive surfaces
• 2WD: Efficient operation for light-duty use
• 4WD: Enhanced traction with Visco-Lok® auto-locking front differential – engages automatically when needed

Driving Assistance Modes :

• Work Mode: Optimized power delivery for utility tasks
• ECO™ Mode: Enhanced fuel efficiency for longer range
• ECO™ Off: Full power delivery

Dynamic Power Steering (DPS):

Dynamic Power Steering (DPS) makes for a workhorse that drives well at every turn . Speed-sensitive steering provides lighter effort at low speeds for easy maneuverability and progressive feel at higher speeds for confidence, reducing operator fatigue during long workdays.

CAPABILITY FEATURES

Capability	Rating
Towing Capacity	2,500 lb (1,134 kg) – industry-leading
Cargo Box Capacity	1,000 lb (454 kg) – half-ton hauling
Payload Capacity	1,700-1,750 lb (771-794 kg)
Tailgate Load Capacity	250 lb (113.4 kg)
Storage Capacity	Total: 3.1-11.1 gal (11.7-42.1 L) depending on model
Ground Clearance	11 inches (28 cm)
Seating Capacity	3 persons (bench seat)

Towing:
Standard 2-inch receiver hitch with industry-leading 2,500 lb towing capacity—pull trailers, equipment, and implements with confidence . With engines, chassis, driving assistance, work mode, and suspension all matched to work harder than any other side-by-side, the Defender delivers class-leading towing capability .

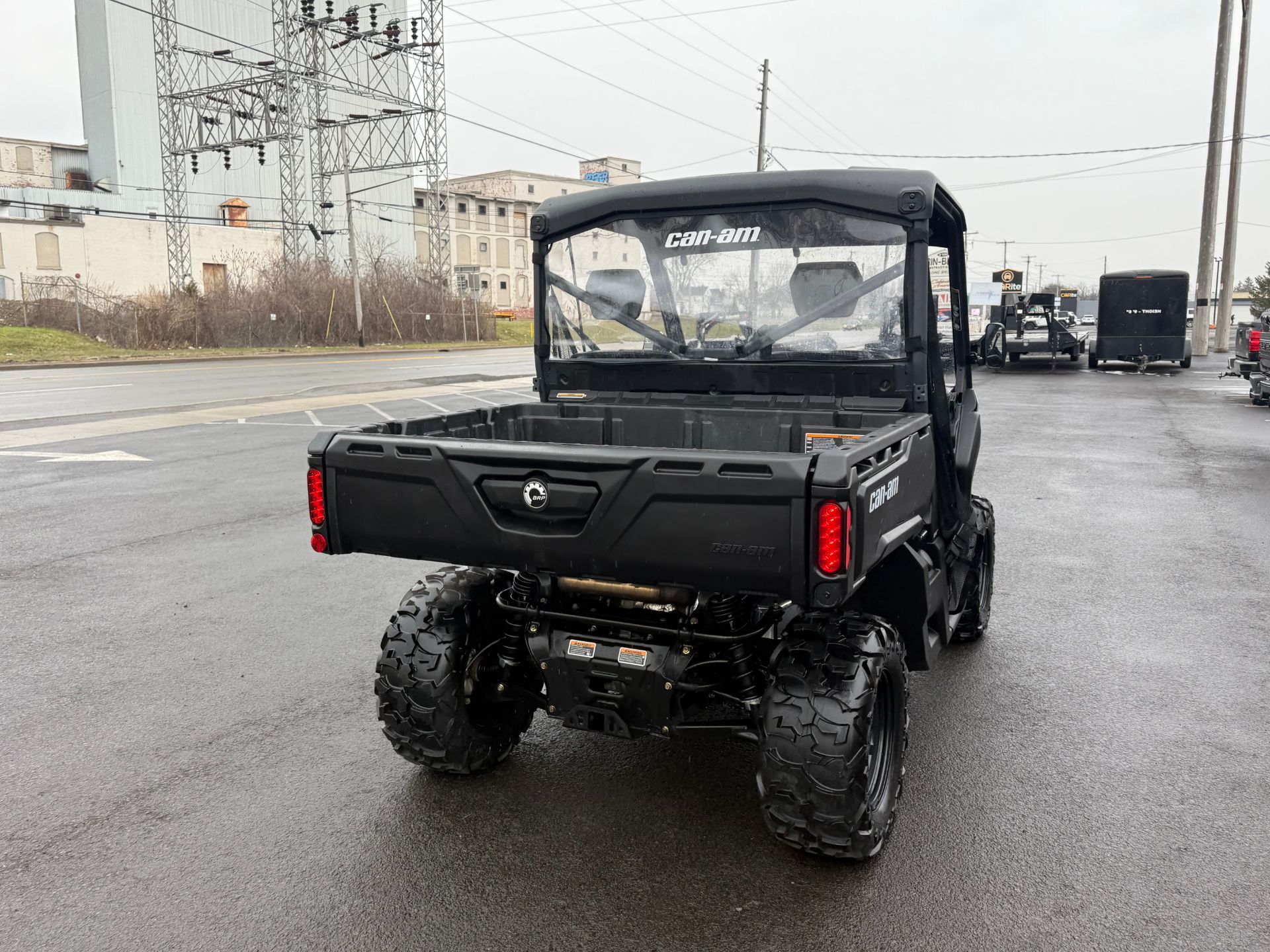

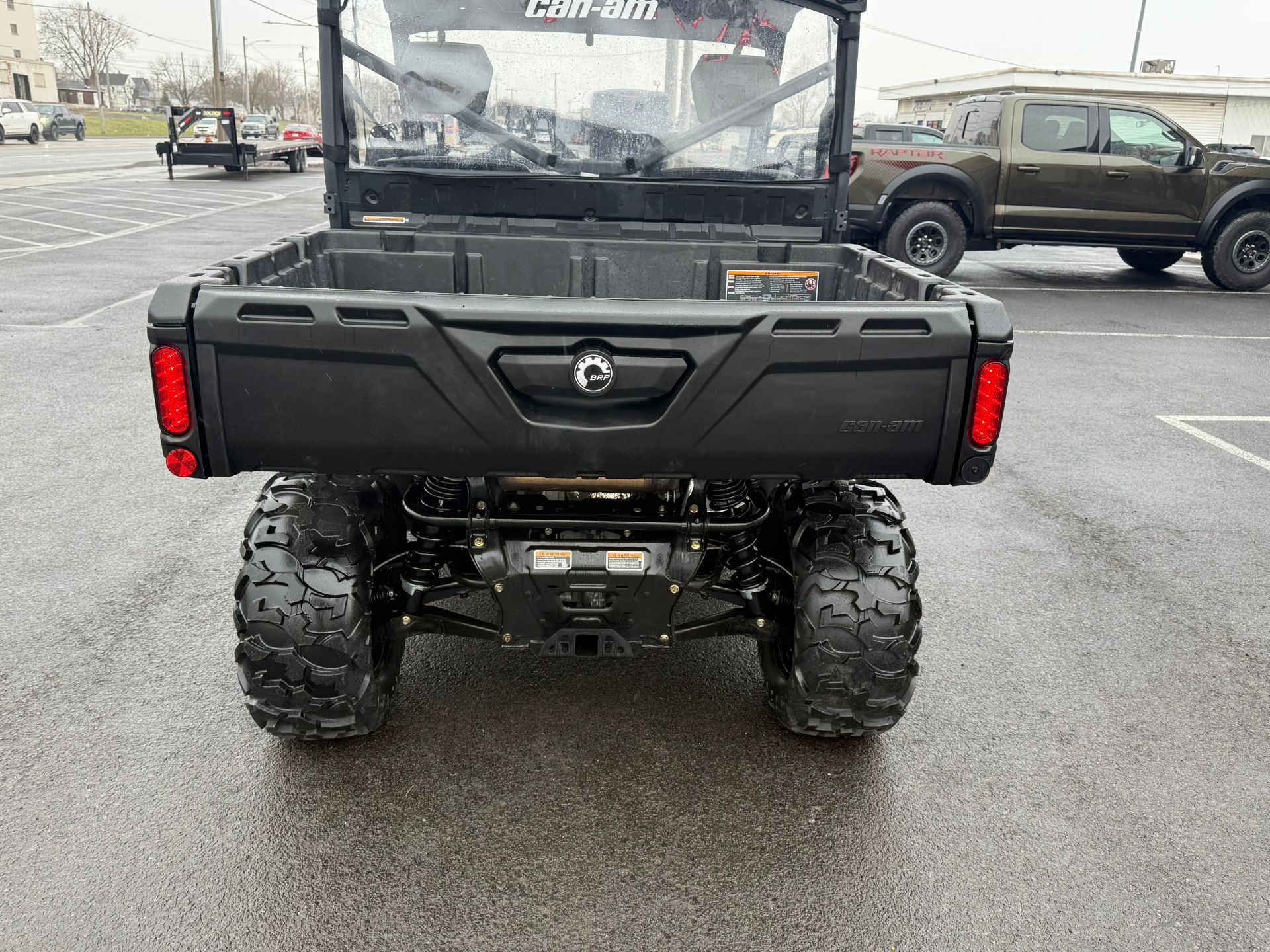

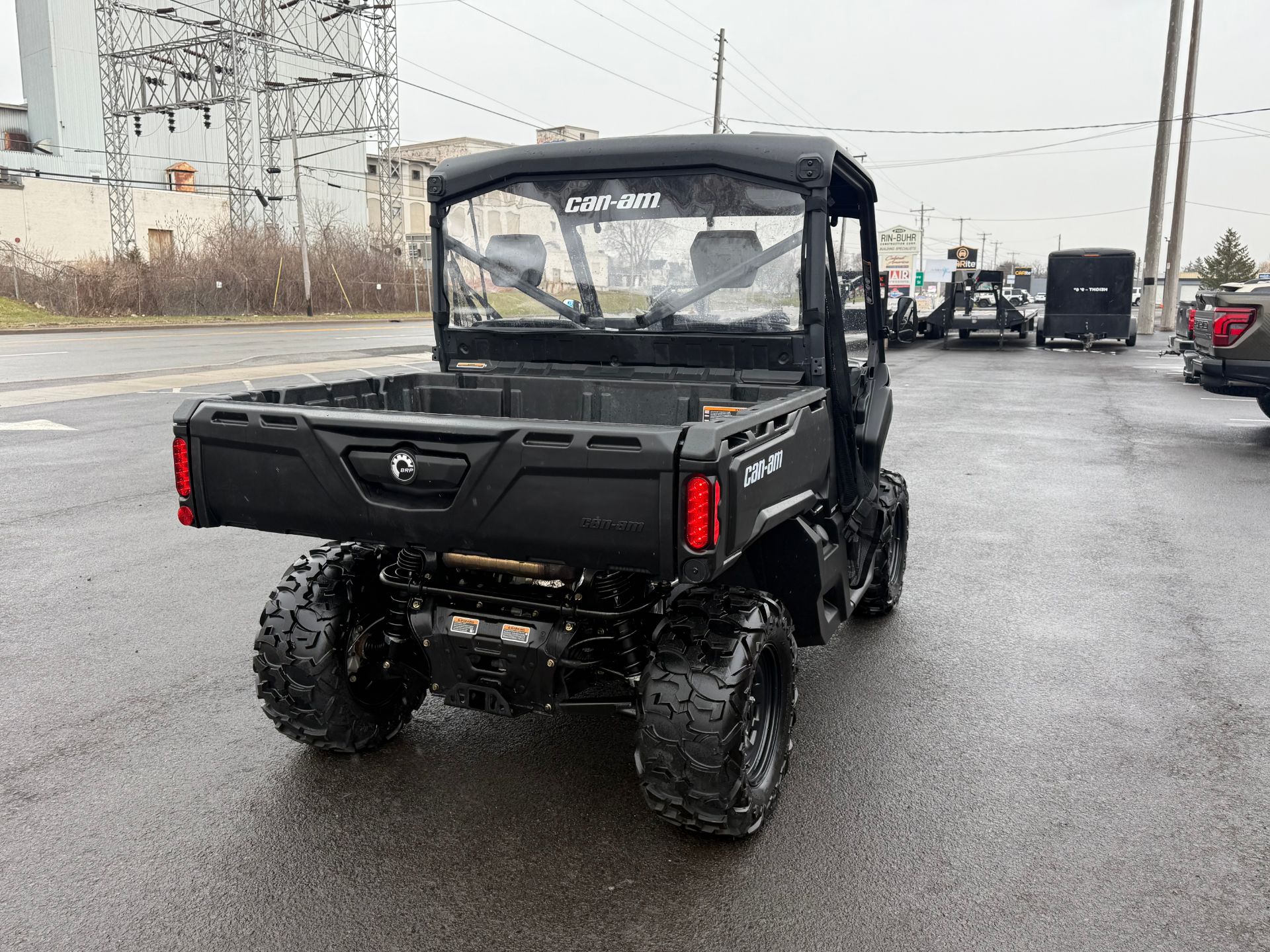

Cargo Box:
The industry-leading cargo box measures 38 x 54.5 x 12 inches (96.5 x 138.4 x 30.5 cm) and features :

• 1,000 lb capacity – half-ton hauling capability
• Durable steel construction with integral tie-down hooks
• Hydraulic power tilt bed available on select models

Under Bed Storage:
Exclusive full-width under bed storage provides space for cargo, gear, tools, and more—in addition to removable side panels and a dump mechanism .

SUSPENSION & CHASSIS

Component	Specification
Front Suspension	Double A-arm with 10 inches (25.4 cm) travel
Front Shocks	Twin tube gas-charged shocks
Rear Suspension	TTA (Trailing Torsional A-arm) with external sway bar, 10 inches (25.4 cm) travel
Rear Shocks	Twin tube gas-charged shocks
Frame	Steel tubular frame
Wheelbase	83 inches (211.5 cm)
Overall Length	121 inches (307.1 cm)
Overall Width	62 inches (157.5 cm)
Overall Height	76 inches (193 cm)

Ride Quality:
The Defender’s suspension is engineered to deliver a confident, comfortable ride across diverse terrain. With 10 inches of travel front and rear, the independent front and TTA rear suspension soak up rough terrain while maintaining composure under heavy loads .

DIMENSIONS

Measurement	Specification
Overall Length	121 inches (307.1 cm)
Overall Width	62 inches (157.5 cm)
Overall Height	76 inches (193 cm)
Wheelbase	83 inches (211.5 cm)
Ground Clearance	11 inches (28 cm)
Dry Weight	1,456-1,471 lb (660-667 kg)
Fuel Capacity	10.6 gal (40 L)

TIRES & BRAKES

Component	Specification

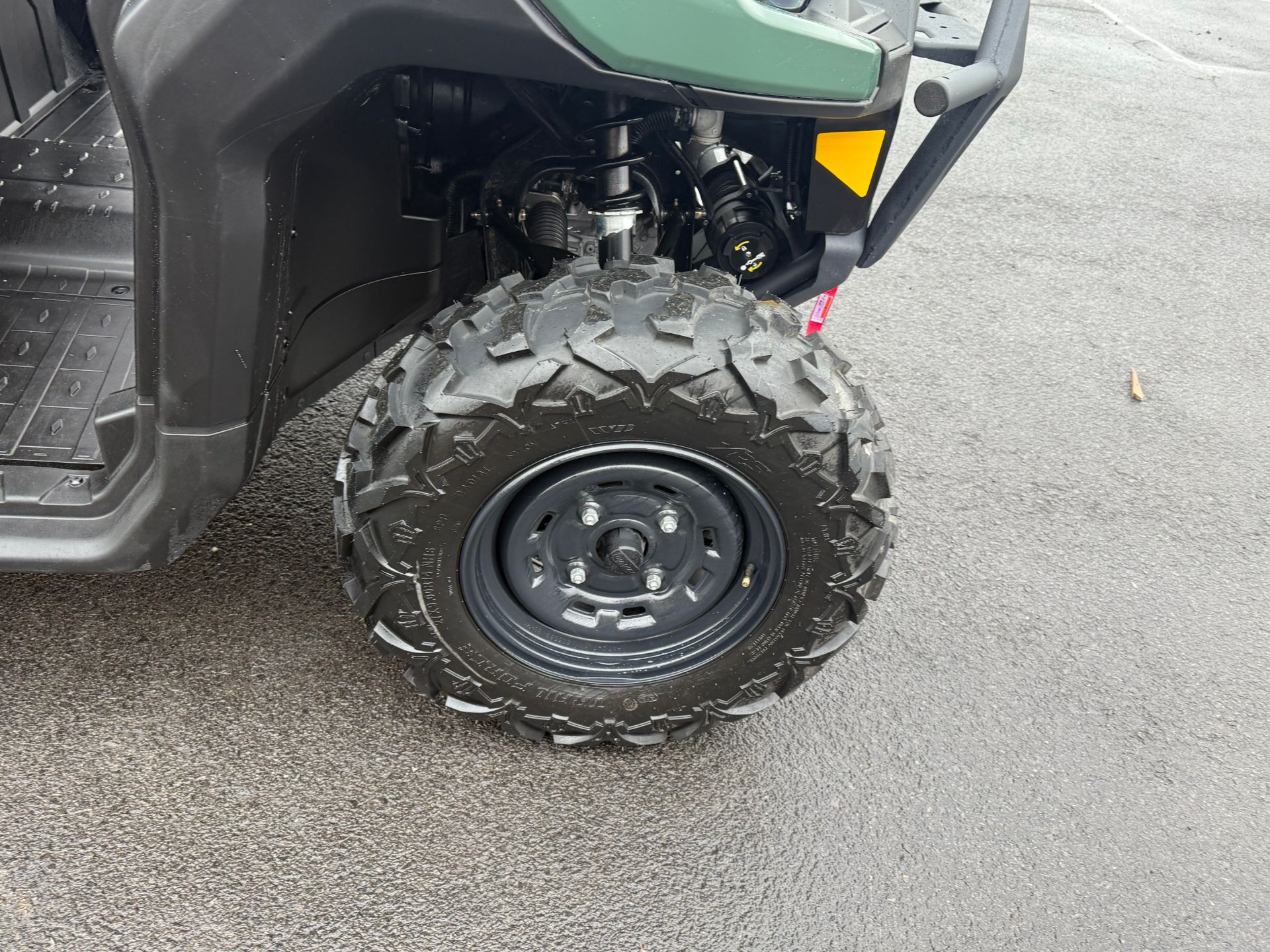

Front Tires	XPS Trail Force 27 x 9-14

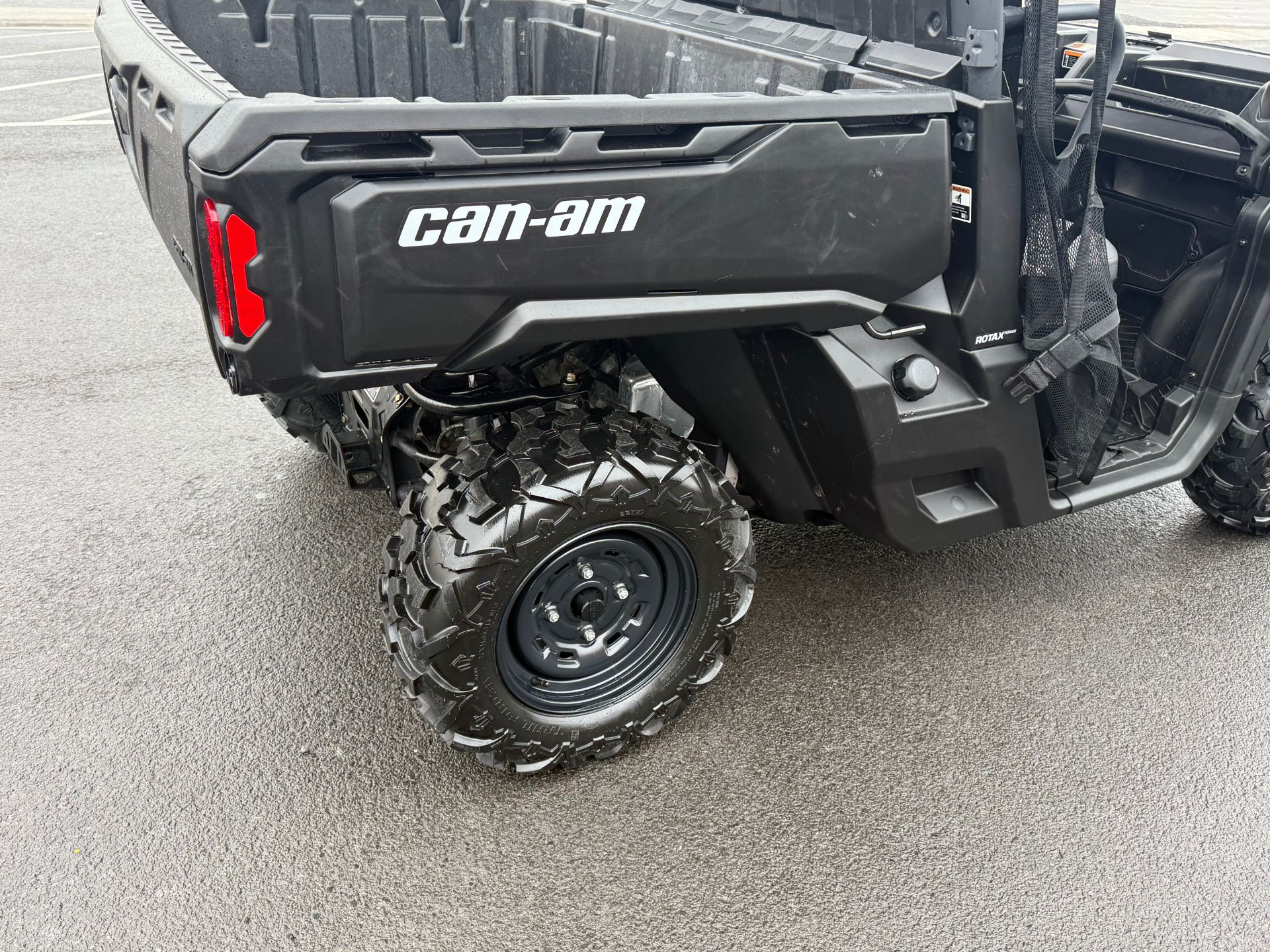

Rear Tires	XPS Trail Force 27 x 11-14
Wheels	14-inch cast-aluminum
Front Brakes	Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear Brakes	Dual 220 mm disc brakes with hydraulic twin-piston calipers

TECHNOLOGY & FEATURES

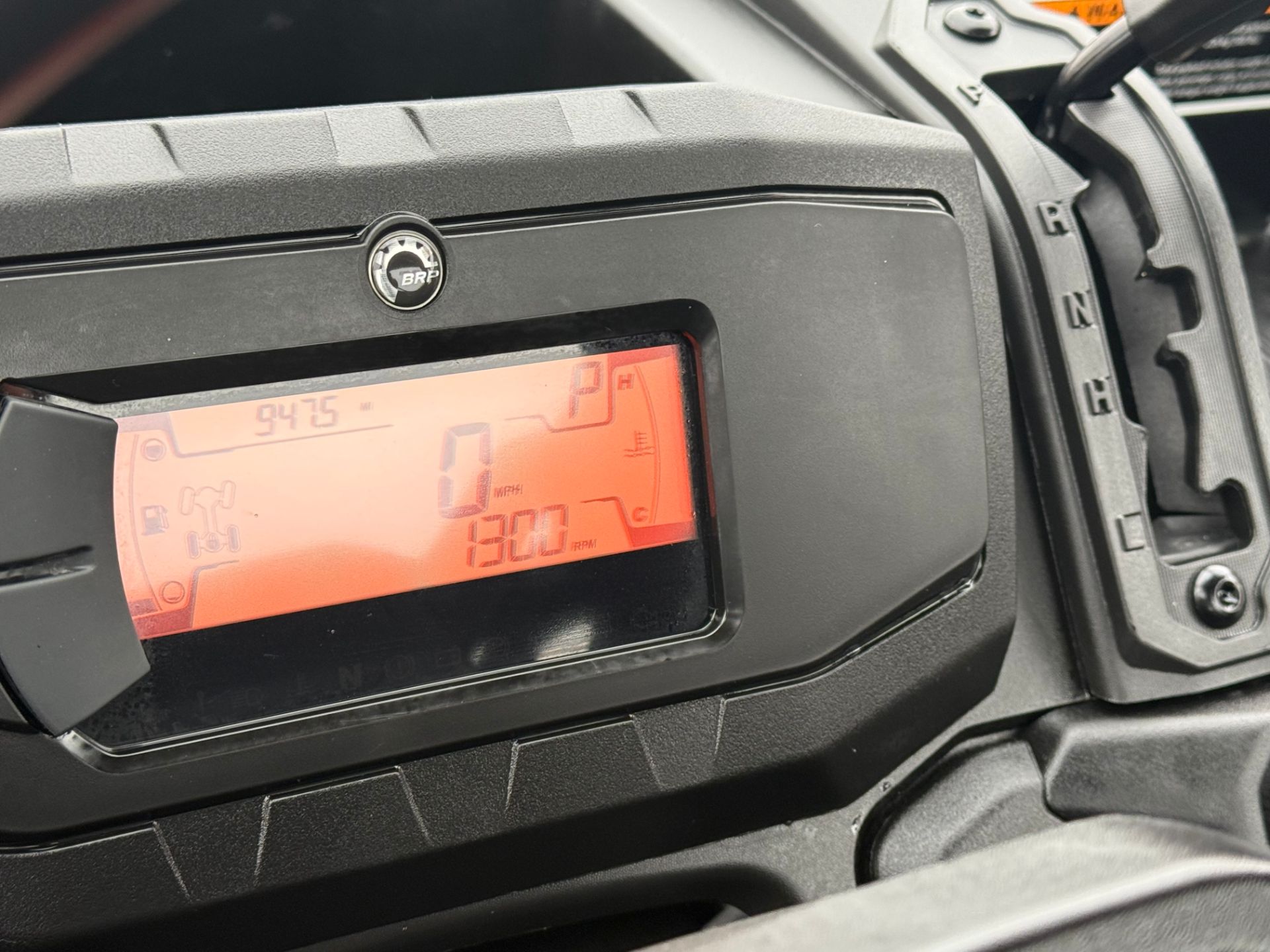

Instrumentation – 4.5-inch Wide Digital Display :

Complete ride information at a glance:

• Digital speedometer, tachometer, odometer, trip meter, hour meter, clock
• Fuel gauge, gear position, battery voltage, engine temperature
• ECO™ / ECO™ Off / Work Mode indicators
• Diagnostic displays

Electrical System :

• Magneto Output: 650 W for accessory power
• DC outlet (10-A) on console
• Battery: 12 V (18 amp/h)

Lighting :

• Front lighting output: 140 W from four 35 W reflectors
• LED tail lights for enhanced visibility

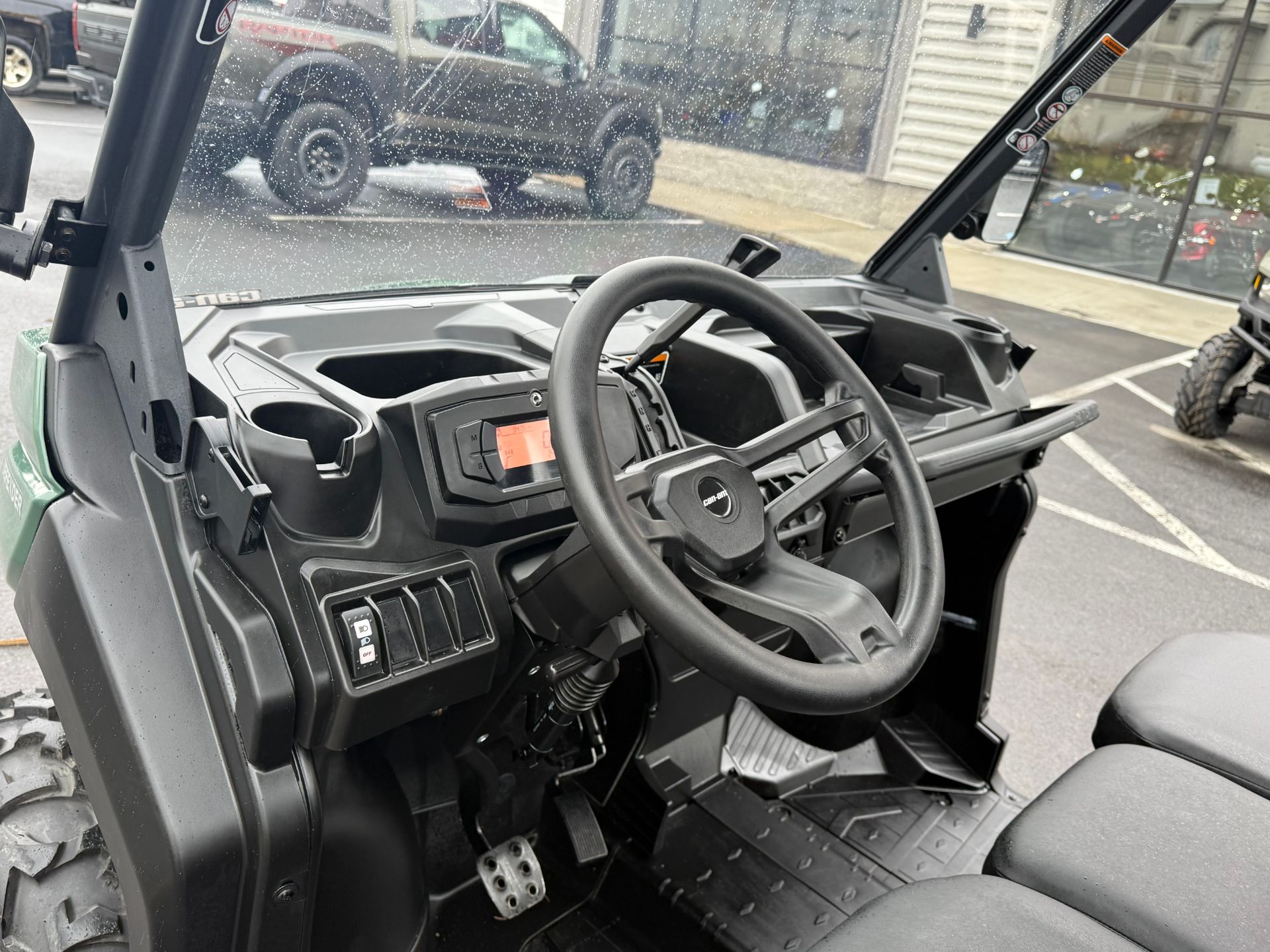

Interior & Comfort :

• VERSA-PRO bench seat with passenger seats flipping up for cargo versatility
• Underside hooks for gear storage
• Adjustable tilt steering wheel (DPS models)
• 4 cupholders

Protection Features :

• Integrated front steel bumper – heavy-duty protection
• HMWPE central skid plate – high molecular weight polyethylene for undercarriage protection
• ROPS approved cage

WARRANTY

Coverage	Term
Factory Warranty	1-year BRP limited warranty
