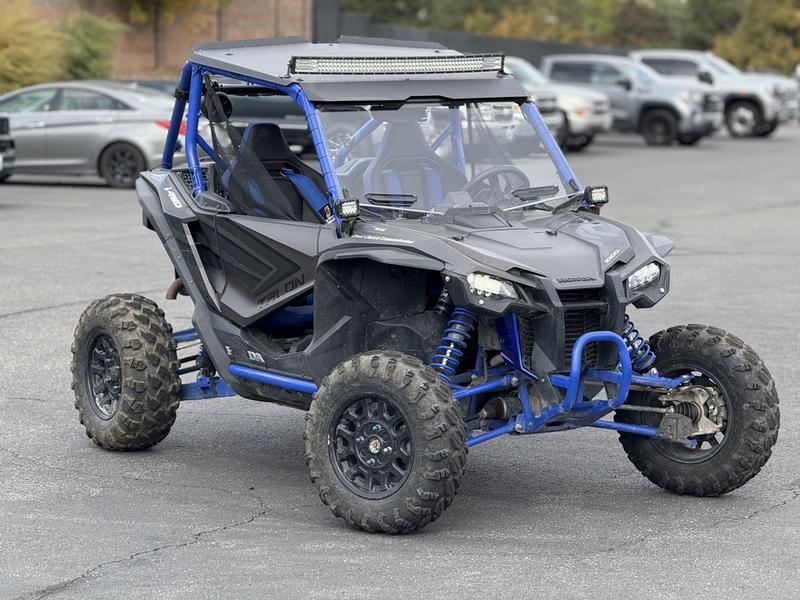

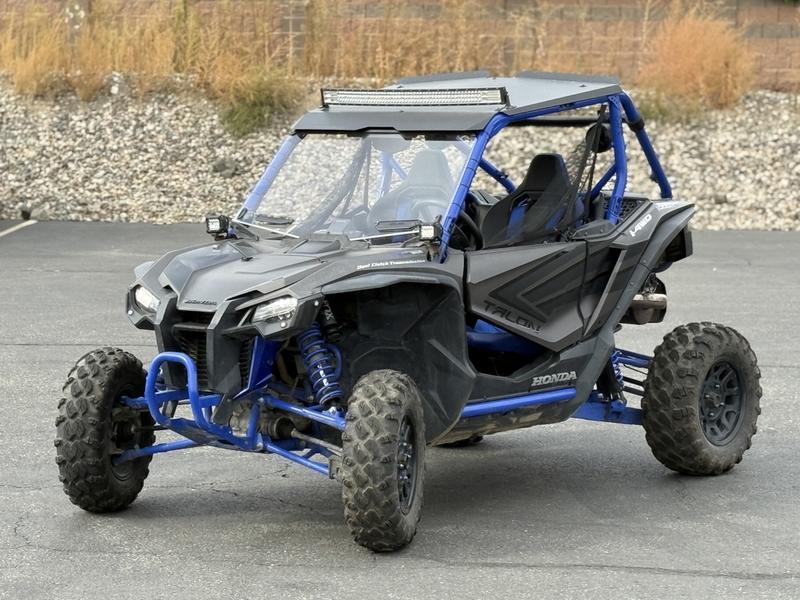

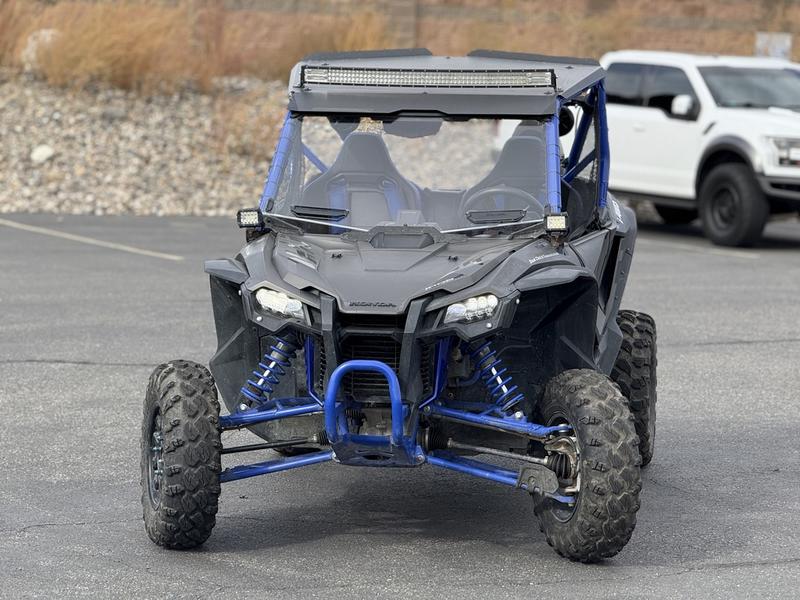

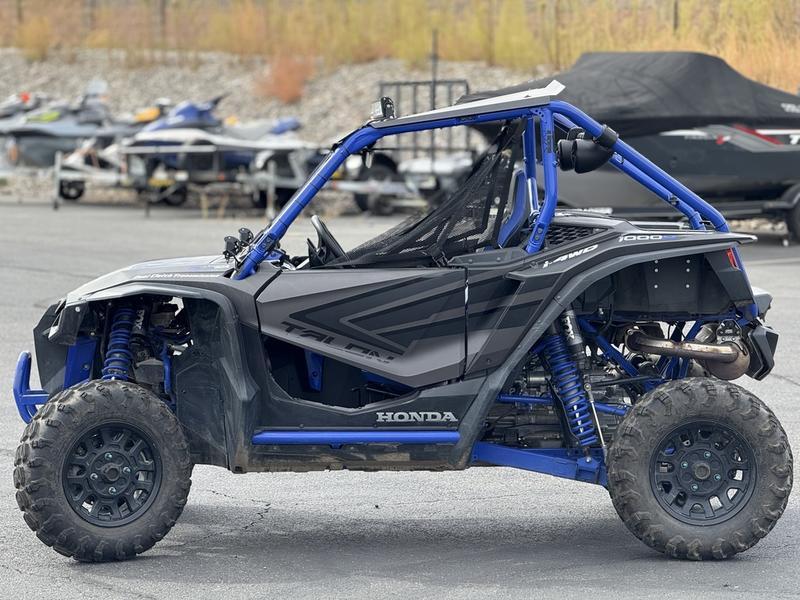

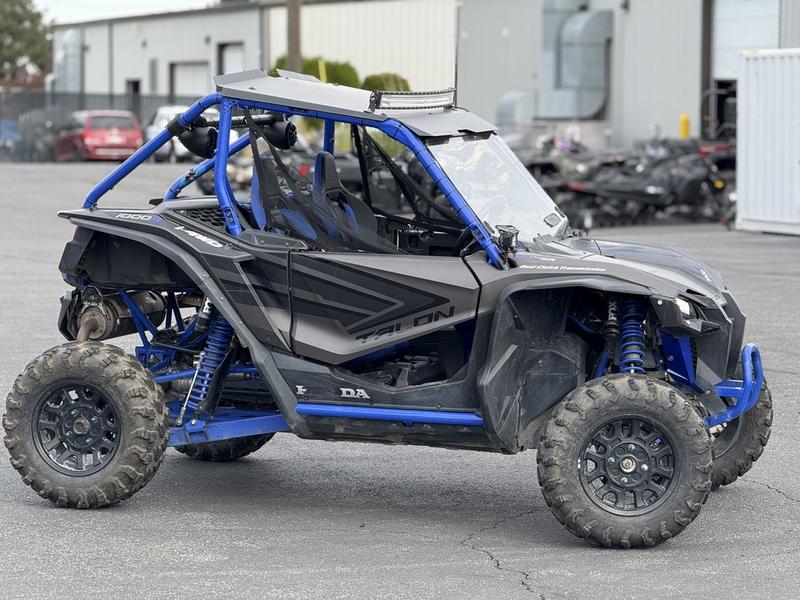

Pre-Owned 2021 Honda® Talon 1000R FOX Live Valve

WIDE-OPEN FUN, LIVENED UP. The 2021 Honda Talon 1000R FOX Live Valve combines the longest-travel, widest-stance Talon platform with advanced semi-active electronic suspension technology . Engineered for riders who tackle rugged, more wide-open terrain, the Talon 1000R delivers 20.1 inches of rear travel, a 68.4-inch width, and FOX Live Valve suspension that adjusts damping 16 times per second to reduce bottoming, pitch, and roll . With Honda’s powerful 999cc parallel-twin engine, quick-shifting Dual-Clutch Transmission (DCT), and exclusive i-4WD technology, this machine is built for those who demand uncompromising off-road performance .

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Engine	999cc liquid-cooled Unicam® longitudinally mounted parallel-twin four-stroke
Valve Train	OHC, four valves per cylinder
Bore x Stroke	92.0 mm x 75.15 mm
Compression Ratio	10.0:1
Fuel System	Fuel injection, 46 mm throttle bodies
Top Speed (High Range Estimate)	70+ mph
Top Speed (Low Range)	Approximately 50 mph

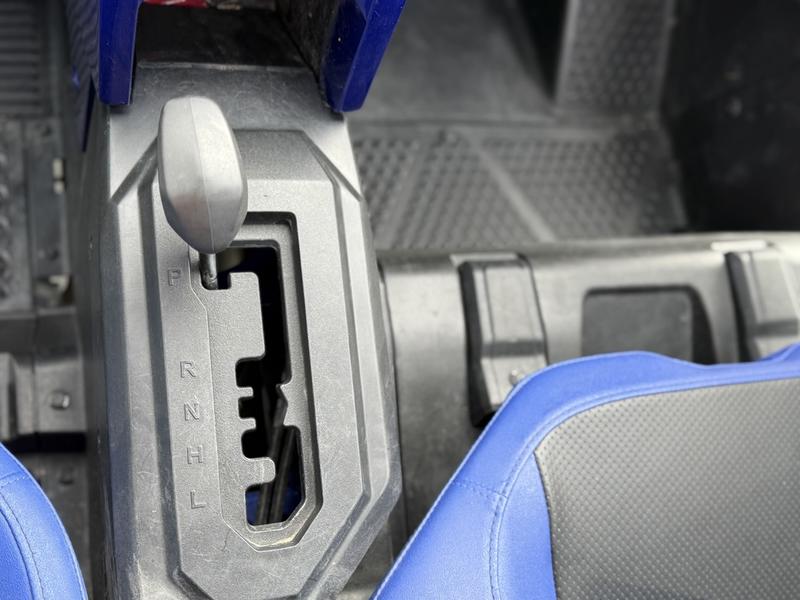

Transmission	Automatic 6-speed Dual-Clutch Transmission (DCT) with high/low sub-transmission; Reverse; Two drive modes with 2WD and I-4WD; Three shift modes (Standard, Sport, Manual with paddle shifters)
Clutch	(2) multiplate wet
Driveline	Direct front and rear driveshafts
Drive System	i-4WD (Honda’s exclusive brake traction control system)
Fuel Capacity	7.3 gal., including 1.1 gal. reserve
Curb Weight	1,556 lb (1,561 lb CA model)
Bed Capacity	299 lbs.
Seating Capacity	2 persons

SPEED & PERFORMANCE PROFILE

70+ MPH Top Speed:
The 2021 Talon 1000R FOX Live Valve delivers exhilarating high-speed performance with an estimated top speed exceeding 70+ mph in high range. In low range, the six-speed DCT allows the vehicle to reach approximately 50 mph, providing exceptional control for technical terrain . The engine is the most highly tuned version of Honda’s 999cc parallel-twin platform, delivering the most power of any Talon model .

999cc Unicam® Parallel-Twin Engine:
At the heart of the Talon 1000R is Honda’s powerful 999cc liquid-cooled parallel-twin engine . Engine highlights include:

• Unicam® valve train with four valves per cylinder for efficient high-rpm breathing
• 46 mm throttle bodies with fuel injection for crisp throttle response in all conditions
• Longitudinally mounted design eliminates power-robbing right angles in the driveline
• 10.0:1 compression ratio for strong power delivery across the RPM range
• Over-square 92mm bore and 75.1mm stroke design for high-rpm performance

Dual-Clutch Transmission (DCT):
The Talon features Honda’s innovative six-speed Dual-Clutch Transmission, which provides the durability and efficiency of a manual transmission with the convenience of an automatic . Key features include:

• Two automatic clutches – one for odd gears (1/3/5), one for even gears (2/4/6) for seamless shifts
• High/low sub-transmission for versatile power delivery

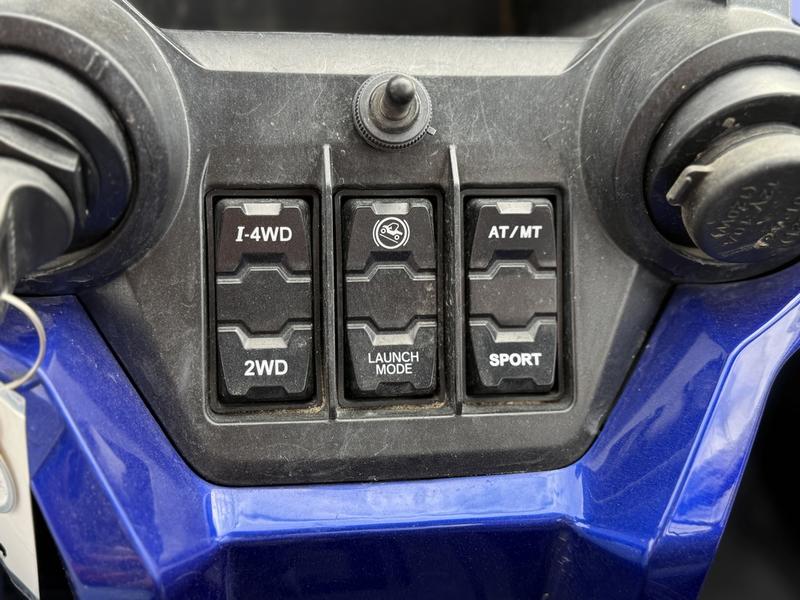

• Three shift modes (Standard, Sport, Manual) with paddle shifters for total control
• Launch Mode – exclusive to FOX Live Valve-equipped Talons for incredible off-the-line acceleration
• True engine braking – the DCT provides excellent downhill control without the belt issues common to CVTs
• Clutch temperature indicator on dash for monitoring DCT status in extreme conditions

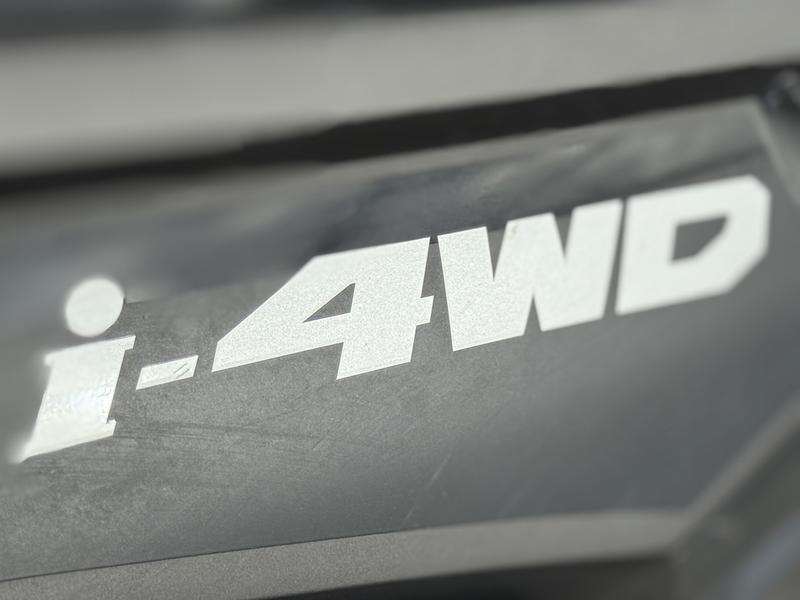

I-4WD & Electronic Brakeforce Distribution:
Honda’s exclusive i-4WD is the powersports industry’s first and only off-road brake traction control system . It manages the amount of slip between left and right front wheels, applying torque to the one with greater grip. The result is excellent traction and tracking performance in tough off-road conditions, with reduced steering effort compared to a standard differential lock .

The system incorporates Electronic Brakeforce Distribution (EBD) that strategically applies braking force to optimize stability under braking, minimizing rear-chassis lift when in two-wheel drive . This works in concert with i-4WD to keep the vehicle stable and controlled in all conditions.

Hill Start Assist (HSA):
A dash-mounted button temporarily holds the vehicle in place on ascents without requiring brake pedal pressure, allowing the driver to focus on throttle modulation for smooth restarts .

FOX LIVE VALVE SEMI-ACTIVE SUSPENSION

Component	Specification

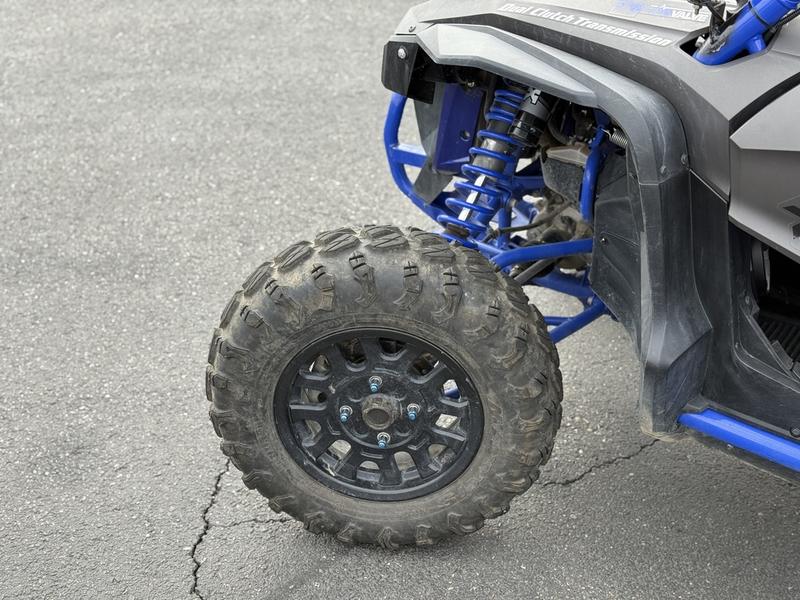

Front Suspension	Independent double wishbone; 17.7 inches (449.6 mm) travel, FOX® Podium 2.5 shocks w/ Live Valve
Rear Suspension	4+ Link trailing arm; 20.1 inches (510.5 mm) travel, FOX Podium 2.5 shocks w/ Live Valve
Shock Bodies	2.5-inch with 7/8-inch shafts for minimal fade under high loads

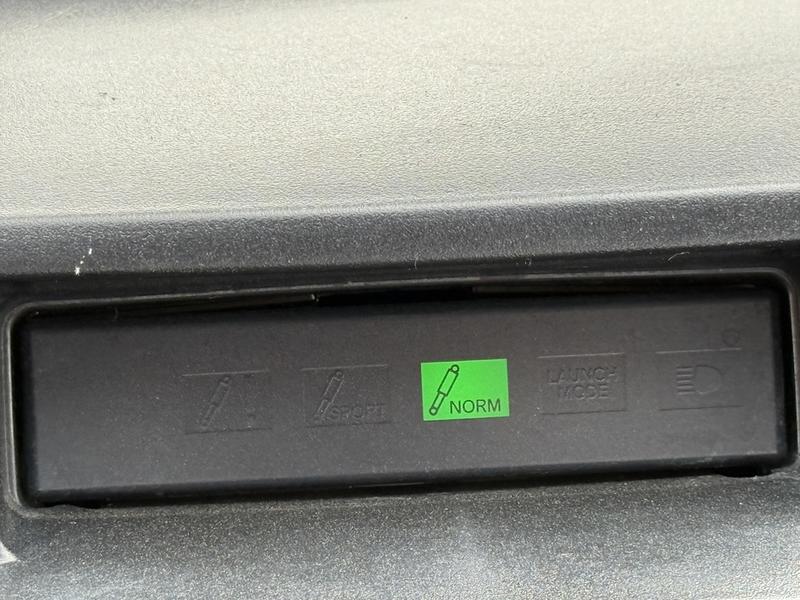

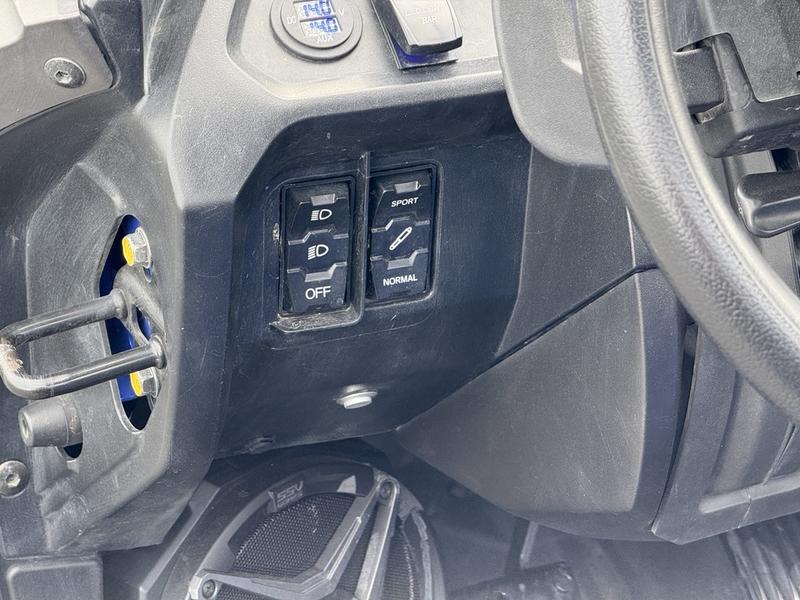

Suspension Modes	Sport and Normal settings, selectable via dash switch
Frame	One-piece frame designed and developed at Honda R&D America; 44% front-end weight bias for balanced handling

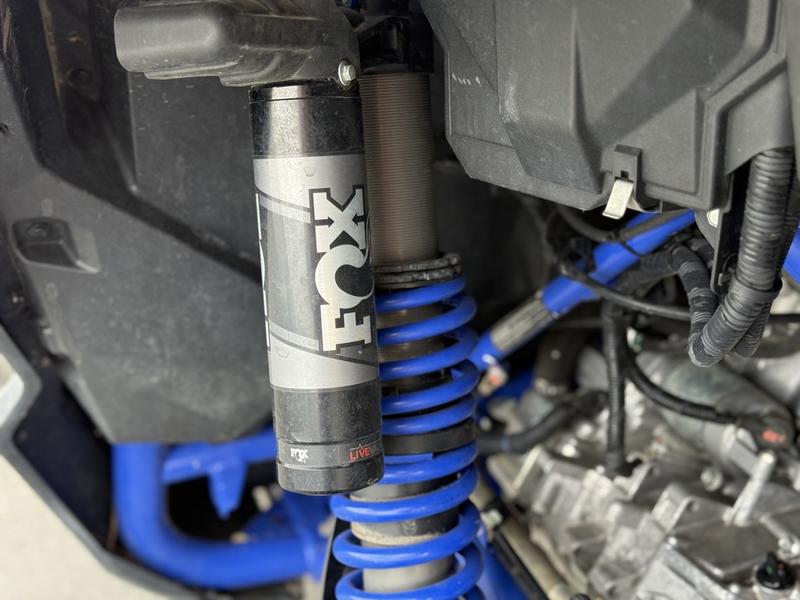

How FOX Live Valve Works:
In collaboration between Honda, Fox, and Bosch, the FOX Live Valve system represents cutting-edge suspension technology :

• Dedicated ECU compiles input from an IMU (inertial measurement unit) and sensors on the steering and brakes
• 200 times per second sample rate monitors vehicle conditions
• System adjusts the four shocks 16 times per second
• Adjustments occur in as little as 20 milliseconds
• At any one time, all four shocks could have a different compression setting based on what the vehicle is doing
• Reduces bottoming, pitch, and roll automatically
• Active at all speeds – unlike competitor systems that only activate above 20 mph

4+ Link Rear Suspension Design:
The unique 4+ Link trailing arm system limits toe change to only 0.3 degrees through the entire 20.1 inches of travel, for excellent alignment control and predictable handling at speed .

Ride Quality:
The Talon 1000R corners with exceptional precision. Professional reviewers note it “corners like crazy” and feels “less likely to lift the inside wheels in turns” than any current UTV, especially in rutted turns . The combination of the wide 68.4-inch stance and long-travel suspension provides high-speed tracking and large-bump absorption capabilities .

DIMENSIONS & CAPACITIES

Measurement	Specification
Overall Length	123.9 inches (3,147.1 mm)
Overall Width	68.4 inches (1,737.4 mm) – wide stance for ultimate high-speed stability
Overall Height	75.6 inches (1,920.2 mm)
Wheelbase	92.7 inches (2,354.6 mm)
Ground Clearance	13.0 inches (330.2 mm)
Seat Height	28.3 inches
Turning Radius	21.3 feet
Dry Weight	1,556 lb (CA model: 1,561 lb)
Bed Capacity	299 lbs.
Fuel Capacity	7.3 gal., including 1.1 gal. reserve
Tire Size (Front/Rear)	28×9-15 / 28×11-15 (Maxxis®)

SUSPENSION & CHASSIS

Component	Specification
Front Travel	17.7 inches
Rear Travel	20.1 inches
Front Brakes	Two hydraulic calipers w/ 250mm discs; Electronic Brakeforce Distribution (EBD) system
Rear Brakes	Two hydraulic calipers w/ 250mm discs; Electronic Brakeforce Distribution (EBD) system
Frame	One-piece steel with e-coat dip, oven baking, powdercoat, and second oven bake for corrosion resistance

TECHNOLOGY & FEATURES

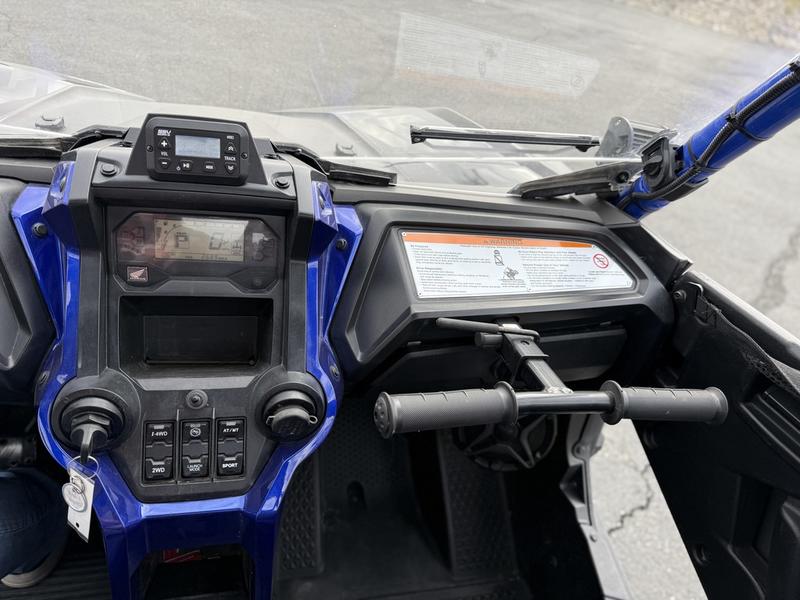

Instrumentation:

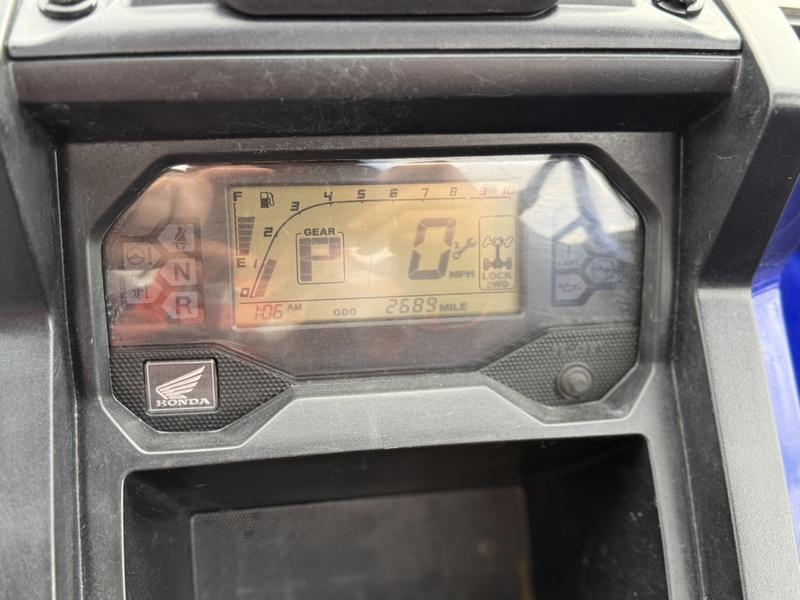

The Talon features a comprehensive gauge package with:

• Clutch temperature indicator for monitoring DCT status in extreme conditions
• Speedometer, tachometer, odometer, trip meter, hour meter
• Gear indicator and drive mode display
• Fuel gauge
• Warning indicators

Exterior Features:

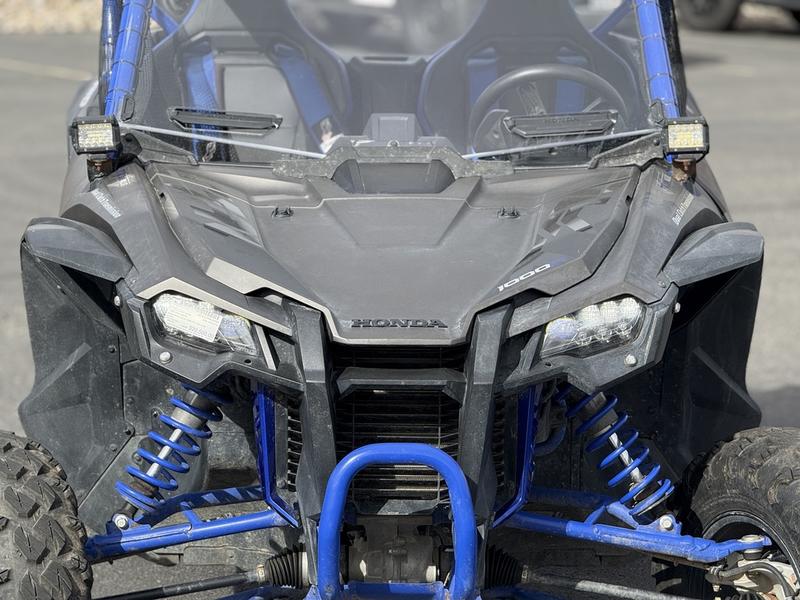

• LED headlights with high and low beam for long life and bright, uniform illumination
• Full side nets with rigidly mounted buckles for simple, quick latching
• Standard roof with front lip to keep moisture from reaching the interior
• Aggressive fenders and wheel wells that keep mud and debris off occupants
• Color-matched frame and ROPS on FOX Live Valve models
• Tool-less access to hood, bed cover, battery compartment and fuse box

Interior & Comfort:

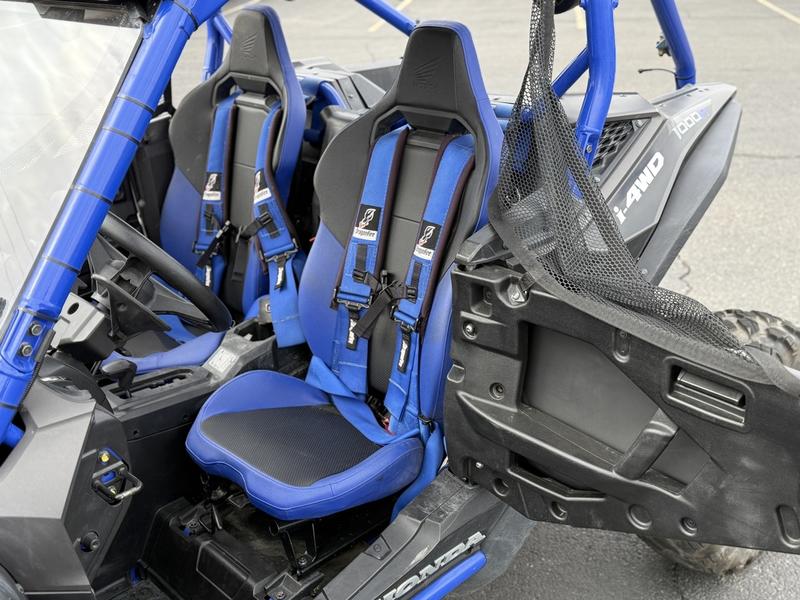

• Wide, weather-resistant sport seats with driver-side fore-and-aft adjustability
• Three-point seatbelts standard; seats ready for four-point belt systems

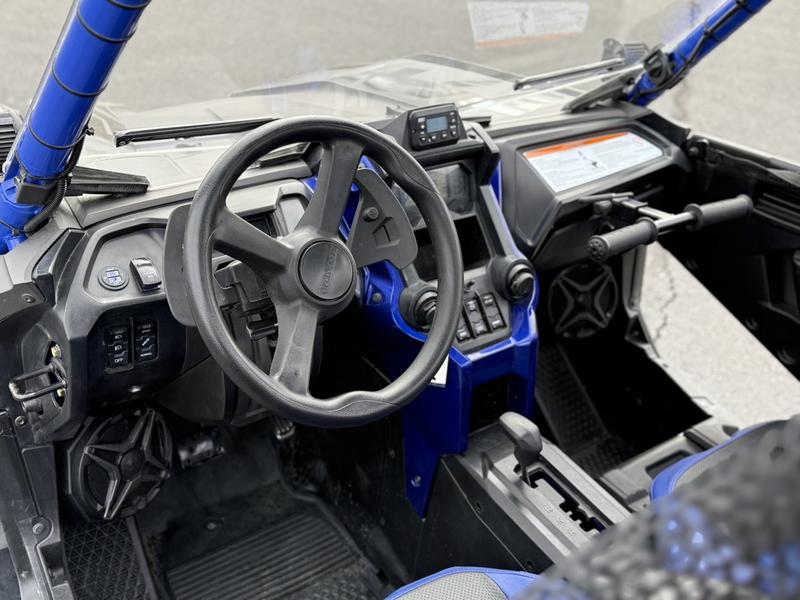

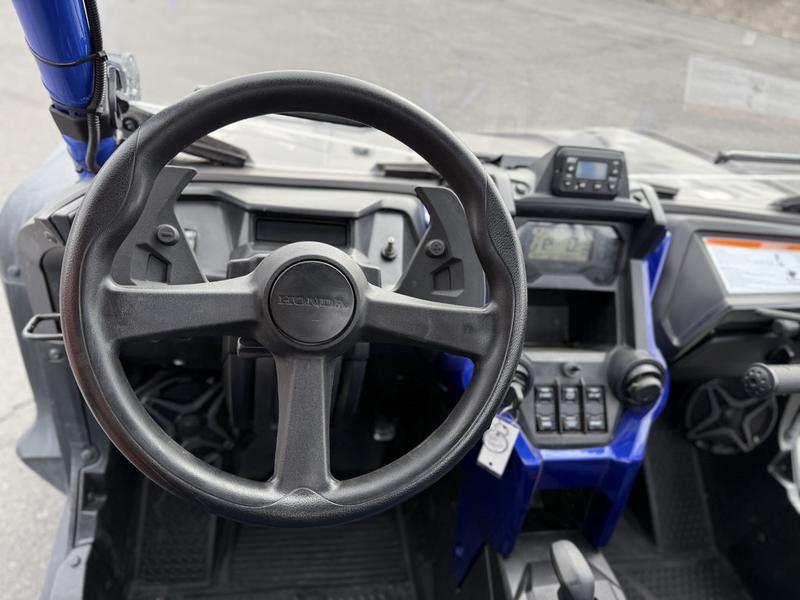

• Stepless tilt-adjustable steering wheel with electric power steering

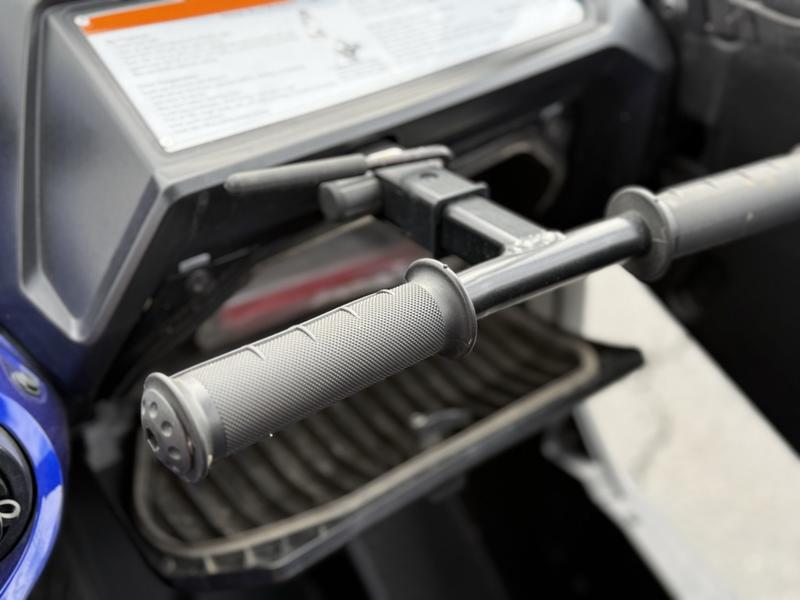

• Passenger grab handle with quick-release telescoping adjustment
• Full center console with symmetrical dash layout for easy viewing by driver and passenger
• 12V accessory adapter standard
• 2 cup holders designed to securely hold containers of varying diameters
• Floor drains for easy washing

Utility Features:

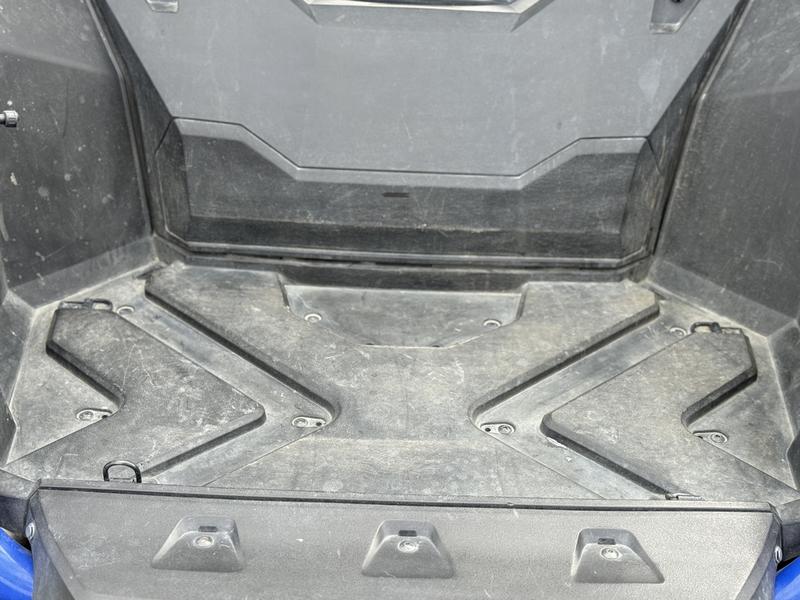

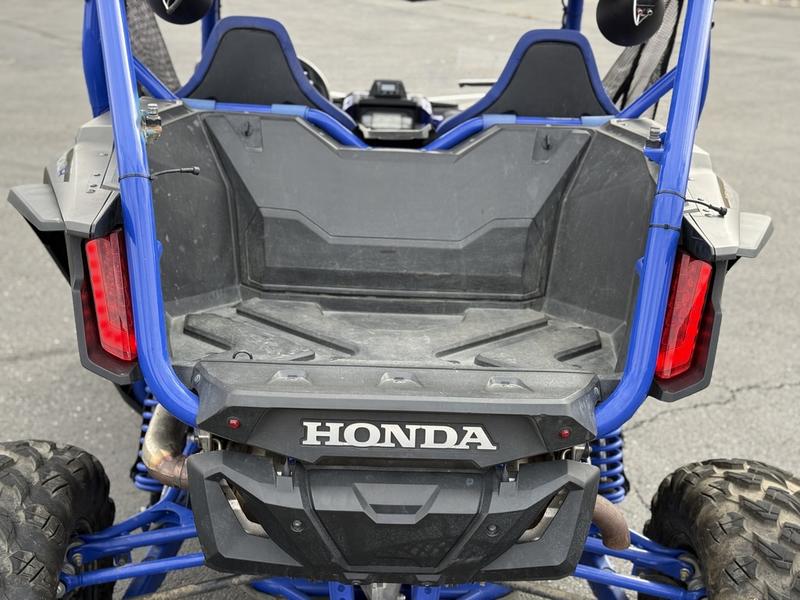

• Large bed accepts a large cooler with six integrated tie-down points
• High-impact, slippery plastic skid plates protect the underbelly
• Flag mount incorporated into the ROPS
• Small toolkit in container beside passenger seat
