Pre-Owned 2021 Can-Am® Outlander X mr 570

THE KING OF THE MUD HOLE. The 2021 Can-Am Outlander X mr 570 is a purpose-built mud machine designed to take you where your friends won’t dare to go . Engineered for extreme off-road conditions, this factory-equipped mud ATV features snorkeled intakes, a relocated radiator, and aggressive 28-inch ITP Mega Mayhem tires . With its proven 48hp Rotax V-twin engine, Tri-Mode Dynamic Power Steering, and Visco-Lok auto-locking front differential, the X mr 570 delivers uncompromising capability in the deepest mud and most challenging terrain .

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Engine	Rotax 570 cc V-twin, 4-stroke, SOHC, liquid-cooled, snorkeled
Horsepower	48 hp (35.8 kW)
Valves	8 valves (4 per cylinder), SOHC
Displacement	570 cc (34.8 ci)
Bore x Stroke	Not specified
Compression Ratio	Not specified
Fuel System	Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Top Speed	Performance-optimized for mud (exact figure not published)
Acceleration	“Strong, responsive acceleration from a standstill”
Engine Braking	Standard
Transmission	CVT with high/low range, park, neutral, reverse; Quick Response System (QRS)
Drive System	Selectable 2WD / 4WD with Visco-Lok† QE auto-locking front differential
Power Steering	Tri-Mode Dynamic Power Steering (DPS) – MIN/MED/MAX settings
Towing Capacity	1,300 lb (590 kg)
Fuel Capacity	5.4 gallons (20.5 L)
Dry Weight	382 kg / 842 lbs
Seat Height	33.8 inches (858 mm)
Ground Clearance	11.7 inches (279 mm)
Wheelbase	51 inches (1,295 mm)
Overall Dimensions (L x W x H)	83 x 46 x 49 inches (2,110 x 1,168 x 1,240 mm)

SPEED & PERFORMANCE PROFILE

Purpose-Built Mud Performance:

The 2021 Outlander X mr 570 is specifically engineered for extreme mud conditions, prioritizing torque, traction, and reliability over outright top speed . The 48hp Rotax V-twin engine provides “strong, responsive acceleration from a standstill” , delivering the power needed to churn through deep holes and maintain momentum in challenging terrain. The engine is tuned for low-end grunt and immediate throttle response when you need to power through obstacles.

48 hp Rotax 570cc V-twin Engine:

Powering the Outlander X mr 570 is the proven Rotax 570cc V-twin engine producing 48 horsepower . Engine highlights include:

• SOHC design with 8 valves (4 per cylinder) for efficient breathing
• Liquid cooling for consistent performance during demanding mud operation
• Intelligent Throttle Control (iTC™) with Electronic Fuel Injection for crisp throttle response in all conditions
• Regular gas fuel requirements for easy refueling
• The 570cc engine provides “ample power for navigating challenging mud terrain and trails”

Mud-Specific Powertrain Features:

The X mr 570 includes factory-engineered features for extreme conditions :

• Snorkeled engine intake ensures air intake remains above water level for deep water crossings
• Snorkeled CVT with raised vents for mud and water protection
• Relocated radiator mounted on top of the front rack for optimal cooling in mud and to keep it clear of debris
• CVT with high/low range allows matching speed and power to terrain conditions
• Engine braking for controlled descents on steep, slippery inclines

Visco-Lok QE Auto-Locking Front Differential:

The advanced Visco-Lok QE (Quicker-Engaging) system provides automatic, progressive front differential lock:

• Automatically transfers power from a slipping wheel to the wheel with traction
• Engages seamlessly without driver input
• Provides maximum grip in deep mud and loose terrain

Tri-Mode Dynamic Power Steering (DPS):

The speed-sensitive power steering offers three selectable modes (MIN, MED, MAX) to match terrain and rider preference :

• MIN: Less assistance for maximum feedback during aggressive mud riding
• MED: Balanced assistance for all-around trail riding
• MAX: Maximum assistance for low-speed maneuvering in deep mud, greatly reducing rider fatigue

X MR MUD PACKAGE EXCLUSIVE FEATURES

The X mr trim is specifically engineered for mud domination with these purpose-built factory features :

Feature	Description
28-inch ITP Mega Mayhem Tires	Front: 28 x 8-12 / Rear: 28 x 10-12 – aggressive mud-specific tread pattern designed for “excellent traction in deep mud”
12-inch Cast-Aluminum Wheels	Lightweight yet durable wheels built to withstand tough off-road abuse
Snorkeled Engine & CVT Intakes	Factory snorkel system for deep water and mud crossing capability
Relocated Radiator	Mounted on top of front rack to stay clear of debris and mud
Heavy-Duty Front Bumper	Enhanced protection for front-end components
Mud-Specific Footrests	Mud-riding footrests for secure footing
Mudguards	Extended coverage for debris protection
X-package Coloration Graphics	Exclusive graphics and seat cover with X mr branding
Prewired for Winch	Simplifies installation of aftermarket winch (sold separately)
Radiator Guard & Brush Guard	Standard protection for critical components

SUSPENSION & CHASSIS

Component	Specification
Front Suspension	Double A-arm with 9 inches (229 mm) travel
Front Shocks	FOX 1.5 PODIUM QS3 with 3-position compression adjustment (Soft/Medium/Firm)
Rear Suspension	Torsional Trailing Arm Independent (TTI) with 9 inches (229 mm) travel
Rear Shocks	FOX 1.5 PODIUM QS3 with 3-position compression adjustment
Frame	High-strength steel tubular frame
Skid Plates	Full-length skid plate with front A-arm and bash plate protection
Ground Clearance	11.7 inches (279 mm)

FOX 1.5 PODIUM QS3 Suspension:

The race-proven FOX shocks deliver exceptional off-road capability with :

• 3-position Quick Switch (QS3): Easily select Soft, Medium, or Firm compression damping with a simple dial turn—no tools required
• Designed for superior ride comfort and handling in diverse mud and trail conditions

DIMENSIONS & CAPACITIES

Measurement	Specification
Overall Length	83 inches (2,110 mm)
Overall Width	46 inches (1,168 mm)
Overall Height	49 inches (1,240 mm)
Seat Height	33.8 inches (858 mm)
Wheelbase	51 inches (1,295 mm)
Ground Clearance	11.7 inches (279 mm)
Dry Weight	842 lbs (382 kg)
Fuel Capacity	5.4 gallons (20.5 L)
Rear Storage	2.9 gallons (10.9 L) water-resistant compartment
Towing Capacity	1,300 lb (590 kg)
Front Rack Capacity	Not specified
Rear Rack Capacity	Not specified

TECHNOLOGY & FEATURES

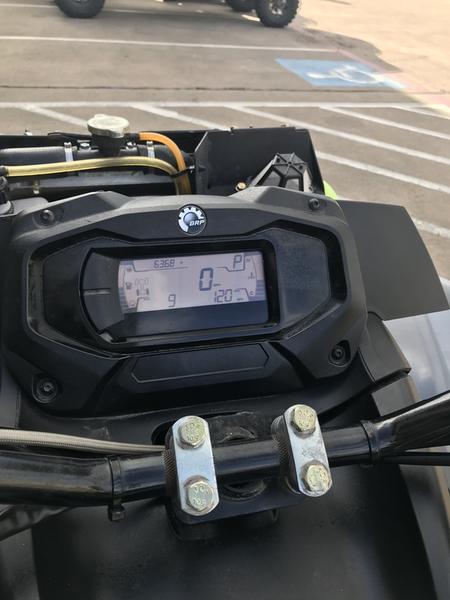

Instrumentation – Multi-Function Digital Display:

Complete ride information at a glance :

• Digital speedometer, odometer, trip meter, hour meter
• Gear position indicator (L/H/N/R/P)
• 4×4 mode indicator
• Fuel gauge with warning light
• Diagnostic readouts and engine lights

Digitally Encoded Security System (D.E.S.S.™):

The vehicle will only start with its encoded key, providing anti-theft protection .

Lighting:

• Halogen headlights for excellent illumination

Utility Features:

• Steel racks with LinQ quick-attach accessory system
• 2.9-gallon water-resistant rear compartment
• CV boot covers and full-length skid plates
• Prewired for winch installation

Additional Features:

• Vinyl one-piece seat
• Floor boards and foot pegs for driver
• Temperature warning light

WARRANTY

Coverage	Term
Factory Warranty	6-month limited warranty
