New 2025 Kawasaki NAV 4e

Description

New 2025 Kawasaki NAV 4e

YOUR FIRST-EVER NEIGHBORHOOD ACTIVITY VEHICLE. The 2025 Kawasaki NAV 4e is not a golf cart—it’s Kawasaki’s first entry into the personal transportation market, designed to revolutionize how you navigate your neighborhood, community, or large property . With its whisper-quiet electric motor, zero emissions, and versatile 4-passenger seating, this innovative vehicle delivers the legendary Kawasaki quality and reliability you expect, now in a sustainable, community-friendly package .

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Motor	Air-cooled interior permanent magnet synchronous motor
Rated Power	4.0 kW {5.4 PS} @ 5,200 rpm
Maximum Power	10.7 kW {15 PS} @ 2,000 rpm
Maximum Torque	51 Nm {37.6 lb-ft} @ 2,000 rpm
Maximum Speed	19 mph (31 km/h)
Battery Type	Lead-acid (6 x 8V) OR Lithium-ion (two packs) on LE/Limited models
Battery Range (est.)	Up to 17.5 miles (Lead-acid) / Up to 40 miles (Lithium-ion)
Battery Charge Time	Approx. 10 hours (Lead-acid) / 11 hours (Lithium-ion) 0-100%
Regenerative System	Yes – captures energy while slowing
Final Drive	2WD, shaft drive with differential
Towing Capacity	500 lb (227 kg)
Curb Weight	1,301 lb (Lead-acid) / 1,049 lb (Lithium-ion)

SPEED & PERFORMANCE PROFILE

19 mph Governed Top Speed:

The 2025 NAV 4e is purpose-built for neighborhood and community use, with a manufacturer-governed top speed of 19 mph (31 km/h) . This speed limitation ensures safe, comfortable operation in multi-use environments such as planned communities, resorts, golf courses, and large properties. The vehicle is specifically designed to be used only on roadways designated for multi-use vehicles, such as personal transportation vehicles or golf carts .

Regenerative Braking:

The NAV 4e features a regenerative braking system that captures energy while slowing, helping to extend range and reduce brake wear .

Electric Powertrain:

Kawasaki’s first electric PTV delivers quiet, zero-emissions operation with impressive torque for its class. The 51 Nm (37.6 lb-ft) of torque is available instantly from the motor, providing responsive acceleration at neighborhood speeds .

BATTERY & RANGE OPTIONS

The 2025 NAV 4e is available in multiple configurations with different battery options:

Model	Battery Type	Est. Range	Charge Time	Curb Weight
NAV 4e	Lead-acid (6 x 8V)	Up to 17.5 miles	Approx. 10 hours	1,301 lb
NAV 4e LE / Limited	Lithium-ion (two packs)	Up to 40 miles	Approx. 11 hours	1,049 lb

Lithium-ion Advantage: The lithium-ion models offer nearly double the range at significantly lower weight, improving efficiency and reducing total cost of ownership over time.

SUSPENSION & CHASSIS

Component	Specification
Front Suspension	MacPherson strut
Rear Suspension	Leaf springs with hydraulic shock absorbers
Steering	Rack and pinion
Front Tires	23 x 10.00-14
Rear Tires	23 x 10.00-14
Wheels	14-inch aluminum
Rear Brake	160mm drum brake
Parking Brake	160mm drum brake
Frame	Ladder type, tubular steel

Ride Quality:
The NAV 4e features automotive-style MacPherson strut front suspension and leaf springs with hydraulic shocks at the rear, delivering a comfortable, stable ride on paved paths and maintained surfaces.

DIMENSIONS & CAPACITIES

Measurement	NAV 4e (Lead-Acid)	NAV 4e Limited (Lithium)
Overall Length	114.6 inches (2,910 mm)	119.5 inches (3,035 mm)
Overall Width	51.6 inches (1,310 mm)	51.6 inches (1,310 mm)
Overall Height	77.2 inches (1,960 mm)	77.6 inches (1,970 mm)
Wheelbase	79.9 inches (2,030 mm)	79.9 inches (2,030 mm)
Ground Clearance	7.3 inches (185 mm)	7.3 inches (185 mm)
Turning Radius	12.8 feet (3.9 m)	12.8 feet (3.9 m)
Seating Capacity	4 persons	4 persons
Cargo Bed Capacity	150 lb (68 kg)	150 lb (68 kg)
Payload Capacity	800 lb (363 kg)	800 lb (363 kg)

FEATURES & EQUIPMENT

Standard Features (NAV 4e) :

Category	Features
Seating	4-passenger (2 row) with fold-flat rear seat

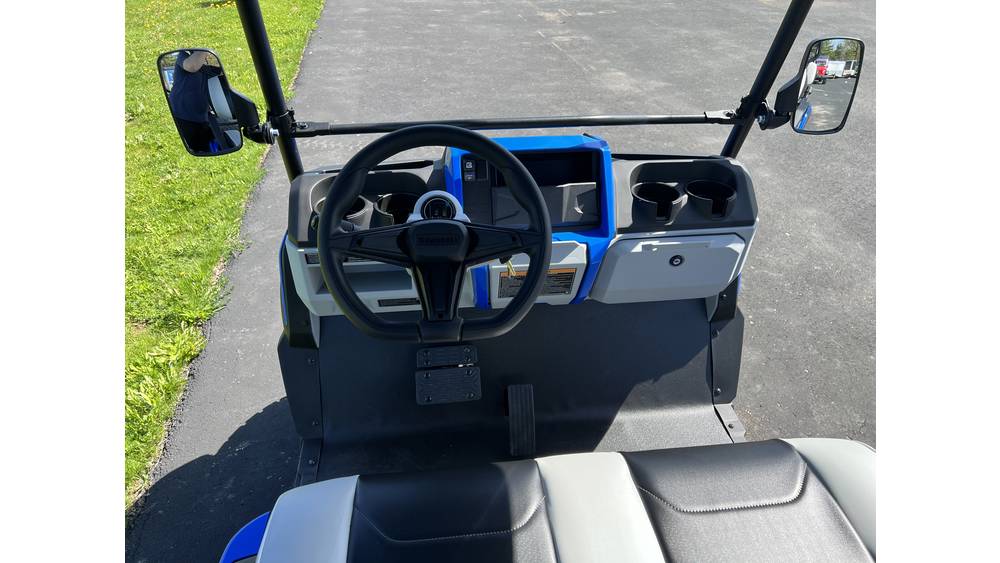

Dashboard	Full-color TFT instrumentation, 6 cup holders, 4 USB ports
Lighting	All-LED lighting (headlights, taillights)
Instruments	Forward/reverse/neutral indicator, hour meter, battery pack charge level, turn signal indicator
Storage	Cargo bed with 150 lb capacity
Convenience	Rain-channeling roof, rubber floor mats, KQR™ system compatible

Limited Model Exclusive Features :

• 7-inch full-color TFT dash with Apple CarPlay and Android Auto
• Flip-down windshield
• 6 USB ports
• Floor lighting
• Brush-guard-style bumper
• Additional storage
• Four 6.5-inch speakers
• Metallic Deep Red paint (Limited exclusive)

WARRANTY

Coverage	Term
Factory Warranty	24 Months Limited Warranty
Lead-Acid Battery Coverage	24 Months Limited Warranty
