New 2024 CFMOTO CForce 600

Description

New 2024 CFMOTO CForce 600

It’s what every homesteader needs. Winter, Spring, Summer and Fall—this one is always on duty. Fishing, hunting, working, plowing, mud-flinging, you can do it all. And it’s built like a tank. Just like every CFMOTO . The 2024 CFMOTO CForce 600 is the perfect utility ATV, combining a powerful 580cc fuel-injected engine with exceptional standard equipment and legendary CFMOTO reliability. Whether you’re tackling tough chores or exploring the backcountry, this machine is ready for anything.

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Engine	Single-cylinder, 4-stroke, SOHC, 4-valve, liquid-cooled
Displacement	580 cc
Horsepower	45 hp @ 6,500 rpm
Maximum Torque	38 lb-ft (51.5 Nm) @ 6,000 rpm
Bore x Stroke	91 x 89.2 mm (3.58 x 3.5 in)
Compression Ratio	10.7:1
Fuel System	Bosch® Electronic Fuel Injection (EFI)
Maximum Speed	95 km/h (59 mph)
Cooling	Liquid
Starting System	Electric
Transmission	CVTech® Automatic P / R / N / H / L with centrifugal clutch
Drive System	Selectable 2WD / 4WD / 4WD lock
Fuel Capacity	4.75 gallons (18 L)
Curb Weight	870-915 lb (395-415 kg) depending on model

SPEED & PERFORMANCE PROFILE

59 mph Maximum Speed:

The 2024 CFMOTO CForce 600 is engineered for versatile utility and trail performance, with a documented maximum speed of 59 mph (95 km/h) . This provides ample velocity for property management, trail riding, and recreational adventures while maintaining the control and stability expected from a capable utility ATV. The high and low range transmission (H/L) allows operators to match vehicle speed and power delivery to the task at hand, with low range providing enhanced torque for heavy hauling and technical terrain at reduced speeds .

Speed-Sensitive EPS:

The intelligent speed-sensitive EPS (Electronic Power Steering) system automatically responds to vehicle speed and provides precise steering aid to the rider. At low speed, steering remains light and effortless, making it easy to maneuver in tight areas. At higher speeds, steering is responsive and stable, enhancing rider confidence when tackling difficult terrain and trail obstacles .

45 hp 580cc Engine:

Powering the CForce 600 is a potent 580cc liquid-cooled single-cylinder engine producing 45 horsepower at 6,500 rpm and 38 lb-ft of torque at 6,000 rpm . Engine highlights include:

• SOHC 4-valve design for efficient breathing
• Bosch® Electronic Fuel Injection for crisp throttle response and reliable starting in all conditions
• Liquid cooling for consistent performance during demanding operation
• Built on more than two decades of continuous innovation of liquid-cooled technology from CFMOTO
• Powerful torque output perfect for utility applications

CVTech-IBC Transmission:

The CVTech-IBC clutch system features a variable transmission with a centrifugal clutch for smooth acceleration and superb control . Transmission ranges include:

• H (High Range): For normal trail riding and transport at higher speeds
• L (Low Range): Enhanced torque for heavy hauling and technical terrain at reduced speeds
• N (Neutral) / R (Reverse) / P (Park)

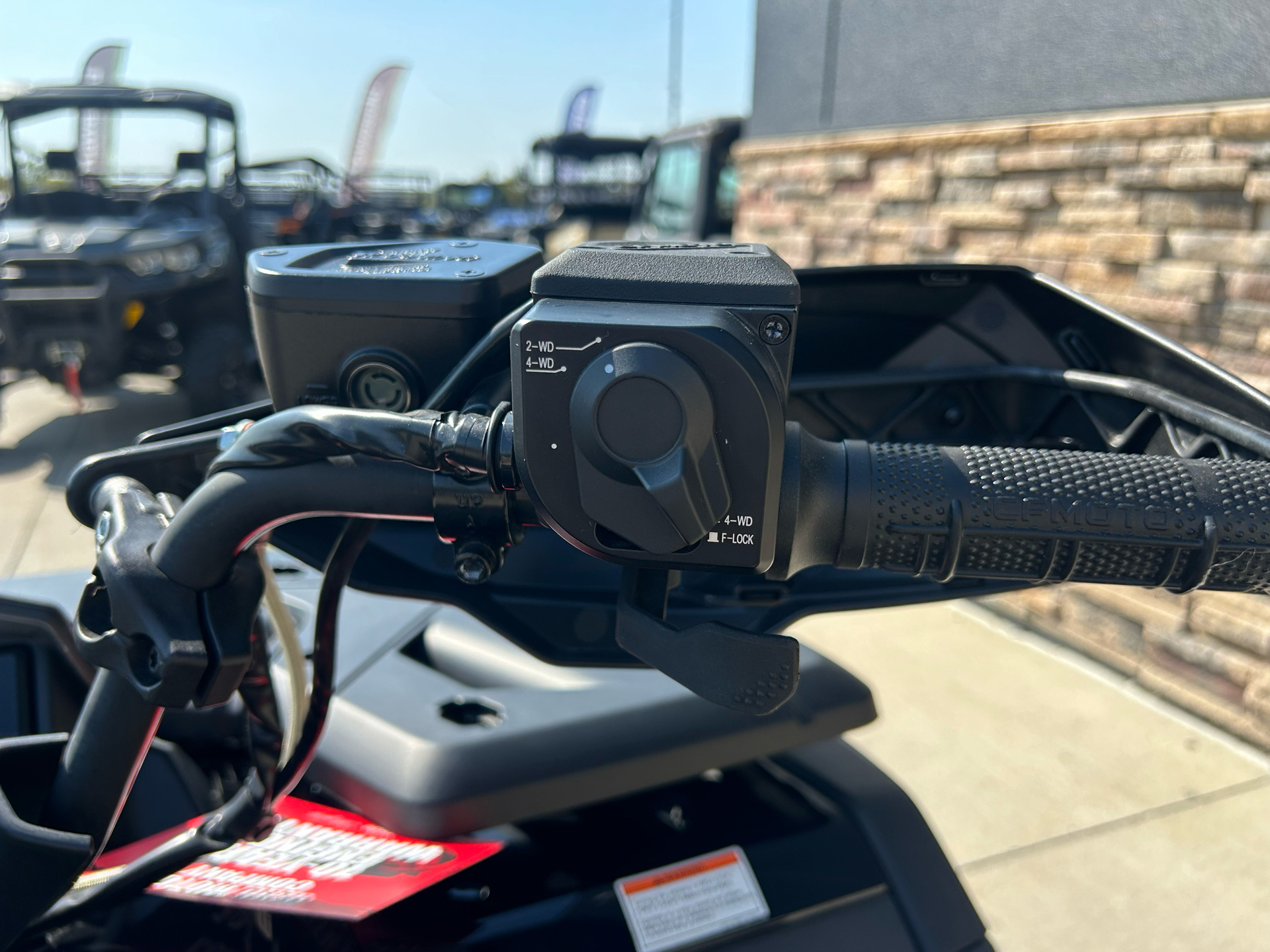

Selectable 2WD/4WD with Locking Front Differential:

The advanced drive system offers exceptional traction with three selectable modes:

• 2WD: Efficient operation for light-duty use and cruising
• 4WD: Enhanced traction for varied terrain
• 4WD lock: Maximum traction with locking front differential for challenging conditions

SUSPENSION & CHASSIS

Component	Specification
Front Suspension	Independent Double A-Arm with 6.3 inches (160 mm) travel
Front Shocks	Spring pre-load adjustable, oil damped
Rear Suspension	Independent Double A-Arm with 8.2-8.3 inches (210 mm) travel
Rear Shocks	Spring pre-load adjustable, oil damped
Wheelbase	58.2-58.5 inches (1,480 mm)
Ground Clearance	10.6 inches (270 mm)
Turning Radius	12.1-12.3 feet (3,700 mm)

Ride Quality:

The CForce 600 features independent double A-arm suspension at both front and rear, providing excellent wheel travel and compliance over rough terrain . With 6.3 inches of front travel and 8.2 inches of rear travel, the suspension soaks up bumps while maintaining composure. The spring pre-load adjustable shocks allow you to tailor the ride to your load and terrain conditions .

DIMENSIONS & CAPACITIES

Measurement	Specification
Overall Length	80.1-88 inches (2,035-2,235 mm)
Overall Width	46.5 inches (1,181 mm)
Overall Height	48-55 inches (1,219-1,397 mm)
Seat Height	21 inches (533 mm)
Front Rack Capacity	75-100 lb (34-45 kg)
Rear Rack Capacity	75-100 lb (34-45 kg)
Towing Capacity	1,500 lb (680 kg) with standard 2″ receiver
Winch Capacity	3,500 lb winch with synthetic rope, standard
Seating Capacity	1 rider (Touring model available for 2-up)

TIRES & BRAKES

Component	Specification
Front Tires	25 x 8-12
Rear Tires	25 x 10-12
Wheels	12-inch cast aluminum alloy
Front Brakes	Dual hydraulic disc
Rear Brakes	Hydraulic disc with parking brake
Brake System	Four wheel hydraulic brake system

TECHNOLOGY & FEATURES

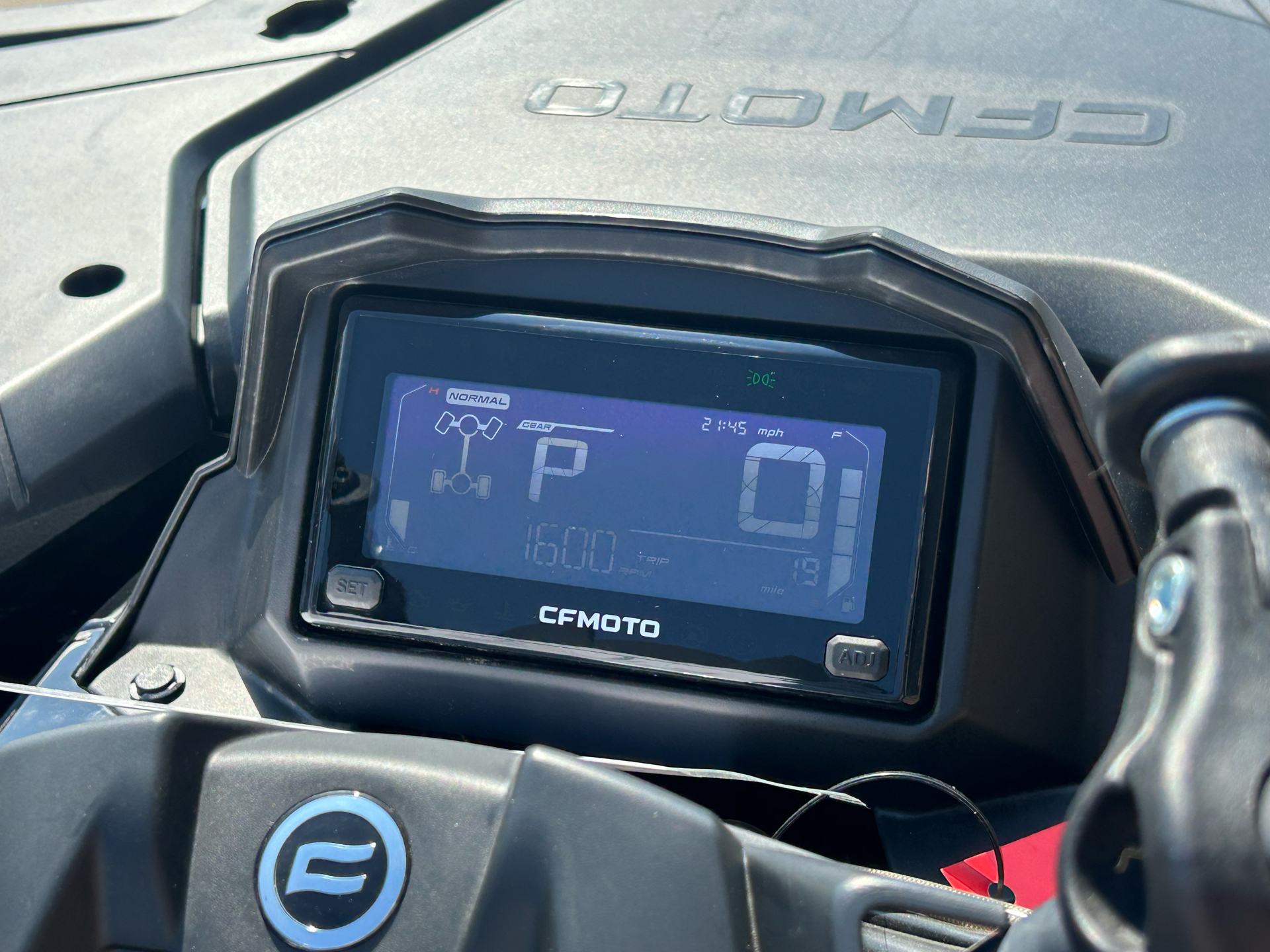

Instrumentation – Large LCD Digital Display:

Display Type	Information Provided
Primary Displays	Speedometer, odometer, trip meter, tachometer, hour meter
Vehicle Status	Fuel gauge, gear position indicator, drive mode indicator (2WD/4WD/4WD lock)
Warnings	Temperature warning, check engine light
Connectivity	Bluetooth call indicator

CFMOTO Ride App Compatibility:
Mobile app compatible for enhanced vehicle connectivity .

RIDEVISION™ LED Lighting:

To ensure the best visibility, RIDEVISION™ LED light technology is standard on the all-new CFORCE 600, providing 80% brighter illumination than halogen lights . Features include:

• LED headlights with integrated turn signals
• LED taillights with backup lights

EPS System:
The intelligent speed-sensitive EPS automatically responds to vehicle speed and provides precise steering aid to the rider .

Additional Standard Features:

• Standard hand guards made from reinforced plastic for maximum hand protection from trees, brush, and mud
• 2-inch receiver hitch – Standard

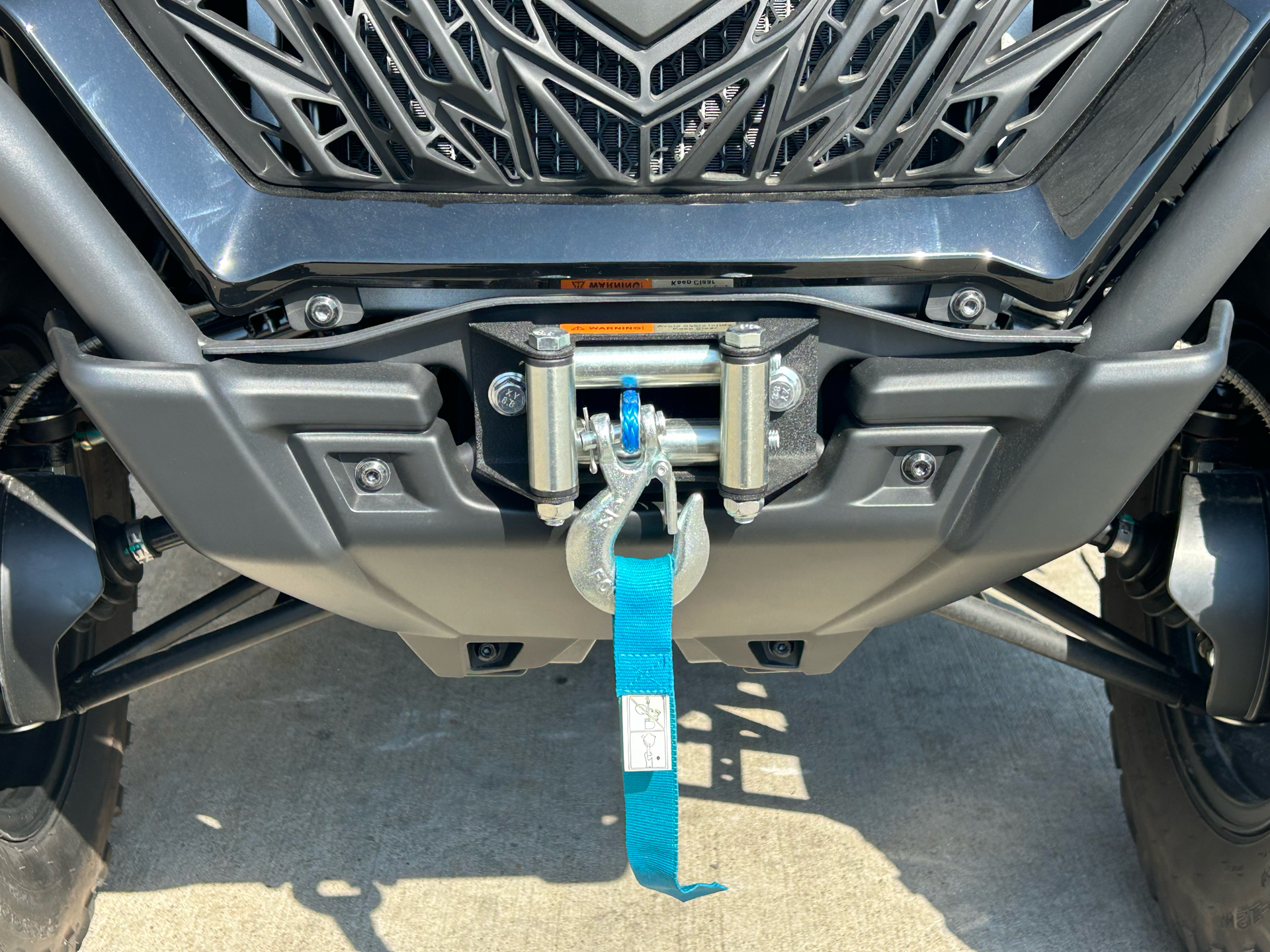

• 3,500 lb winch with synthetic rope – Standard
• 12V outlet and USB port – Standard
• Front and rear skid plates – Standard
• Front and rear bash plates – Standard
• Radiator guard – Standard
• Brush guard – Standard

WARRANTY

Coverage	Term
Factory Warranty	12-month limited warranty
Powertrain Warranty	Available EASY protection plan
