New 2024 Can-Am Defender MAX XT HD10

Description

New 2024 Can-Am Defender MAX XT HD10

Leading Engine

EQUIPPED TO GET IT DONE. Defender MAX XT is ready to work right out of the factory with upgrades including adaptable storage and lightweight wheels and tires . The 2024 Can-Am Defender MAX XT HD10 is engineered for those who demand uncompromising utility, legendary Rotax power, and premium XT features. With its powerful 82hp Rotax HD10 V-twin engine, class-leading 2,500 lb towing capacity, and comfortable 6-passenger seating, this machine is the ultimate workhorse for farms, ranches, and job sites.

PERFORMANCE SPECIFICATIONS

Attribute	Specification
Engine	Rotax® HD10 976 cc V-twin, 4-stroke, SOHC, liquid-cooled
Horsepower	82 hp (61.2 kW)
Torque	69 lb-ft (93.6 Nm)
Valves	8 valves (4 per cylinder)
Fuel System	Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Engine Braking	Yes
Transmission	PRO-TORQ CVT Transmission with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection; Extra-L / H / N / R / P
Drive System	Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential
Driving Assistance	Electronic Hill Descent Control; ECO™ / ECO™ Off / Work modes
Power Steering	Dynamic Power Steering (DPS)
Towing Capacity	2,500 lb (1,134 kg)
Fuel Capacity	10.6 gal (40 L)
Estimated Dry Weight	1,928 lb (875 kg)
Seating Capacity	6 persons

SPEED & PERFORMANCE PROFILE

Dual-Range Transmission for Optimal Speed Control:

The 2024 Defender MAX XT HD10 features a dual-range Continuously Variable Transmission (CVT) that allows operators to match vehicle speed to the task at hand :

• High Range (H): For efficient transport between job sites and higher-speed trail operation
• Low Range (L): Enhanced torque and controlled speeds for heavy hauling and technical terrain

This intelligent speed management system ensures you have the right power delivery for any situation—from cruising between work areas at efficient speeds to crawling over obstacles with precision control.

Electronic Hill Descent Control:

Standard Electronic Hill Descent Control provides confident, controlled descents on steep terrain—just release the throttle and the Defender maintains a steady pace downhill, allowing you to focus on steering .

82 hp Rotax HD10 V-Twin Engine:

Powering the Defender MAX XT HD10 is the proven Rotax HD10 976cc V-twin engine producing 82 horsepower and 69 lb-ft of torque . Engine highlights include:

• V-Twin configuration with SOHC and 8 valves for efficient breathing
• Liquid cooling for consistent performance during demanding operation
• Intelligent Throttle Control (iTC™) with Electronic Fuel Injection for crisp throttle response in all conditions
• Designed for heavy-duty work applications with proven reliability
• Quieter operation and less vibration than previous generations

Selectable Drive Modes:

Three distinct driving modes allow you to tailor performance to tasks :

• ECO Mode: Enhanced fuel efficiency for extended range
• ECO Off: Full power delivery
• Work Mode: Optimized power delivery for heavy loads and precise control during utility tasks

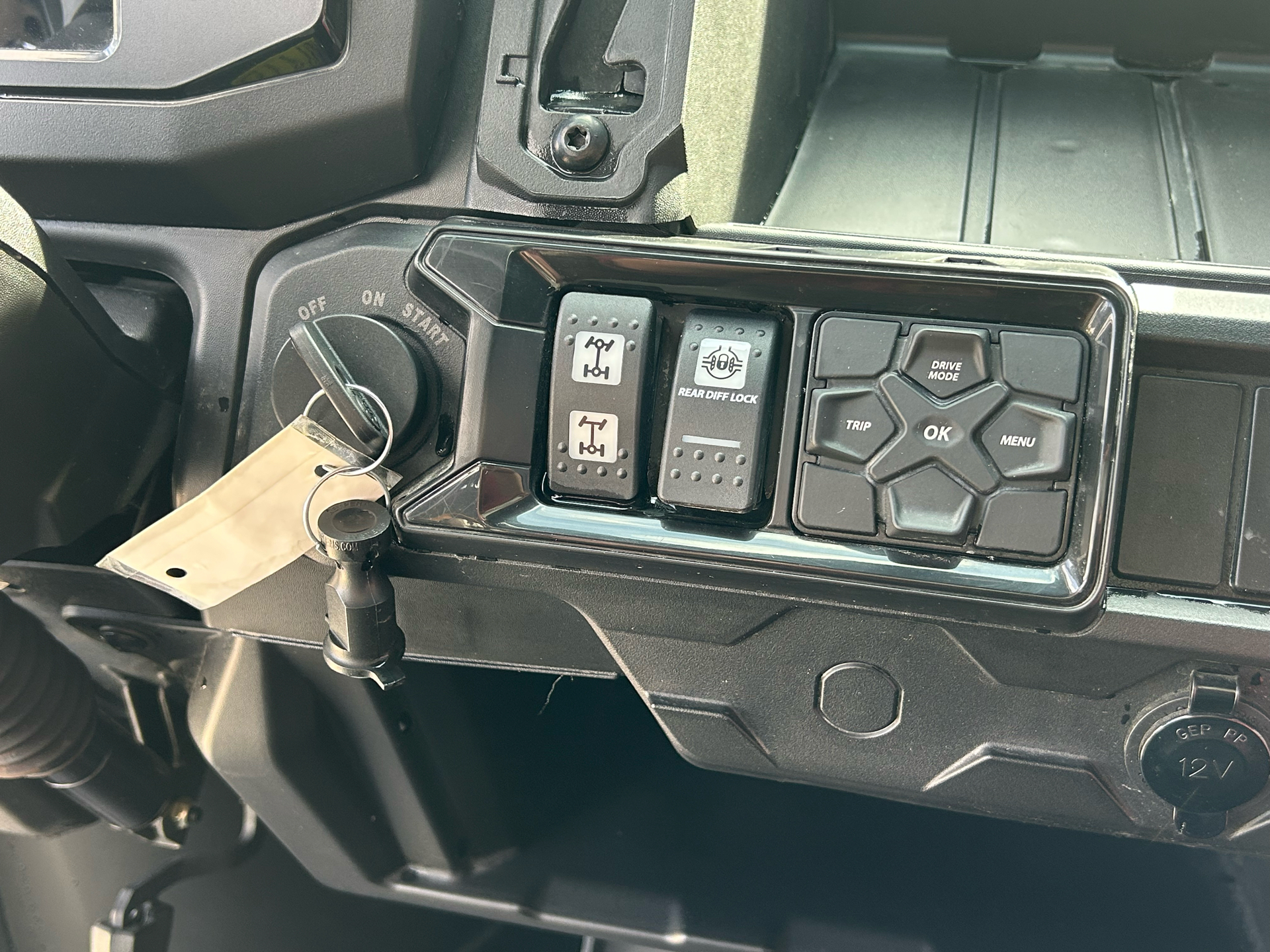

Visco-Lok† Auto-Locking Front Differential:

The advanced drive system offers exceptional traction with selectable modes:

• Turf Mode: Unlocks the rear differential for tight turns without damaging sensitive surfaces
• 2WD: Efficient operation for light-duty use

• • 4WD: Enhanced traction with Visco-Lok† auto-locking front differential—engages automatically when needed.

XT PACKAGE EXCLUSIVE FEATURES

The XT trim adds significant value with these premium factory-installed upgrades:

Feature	Description

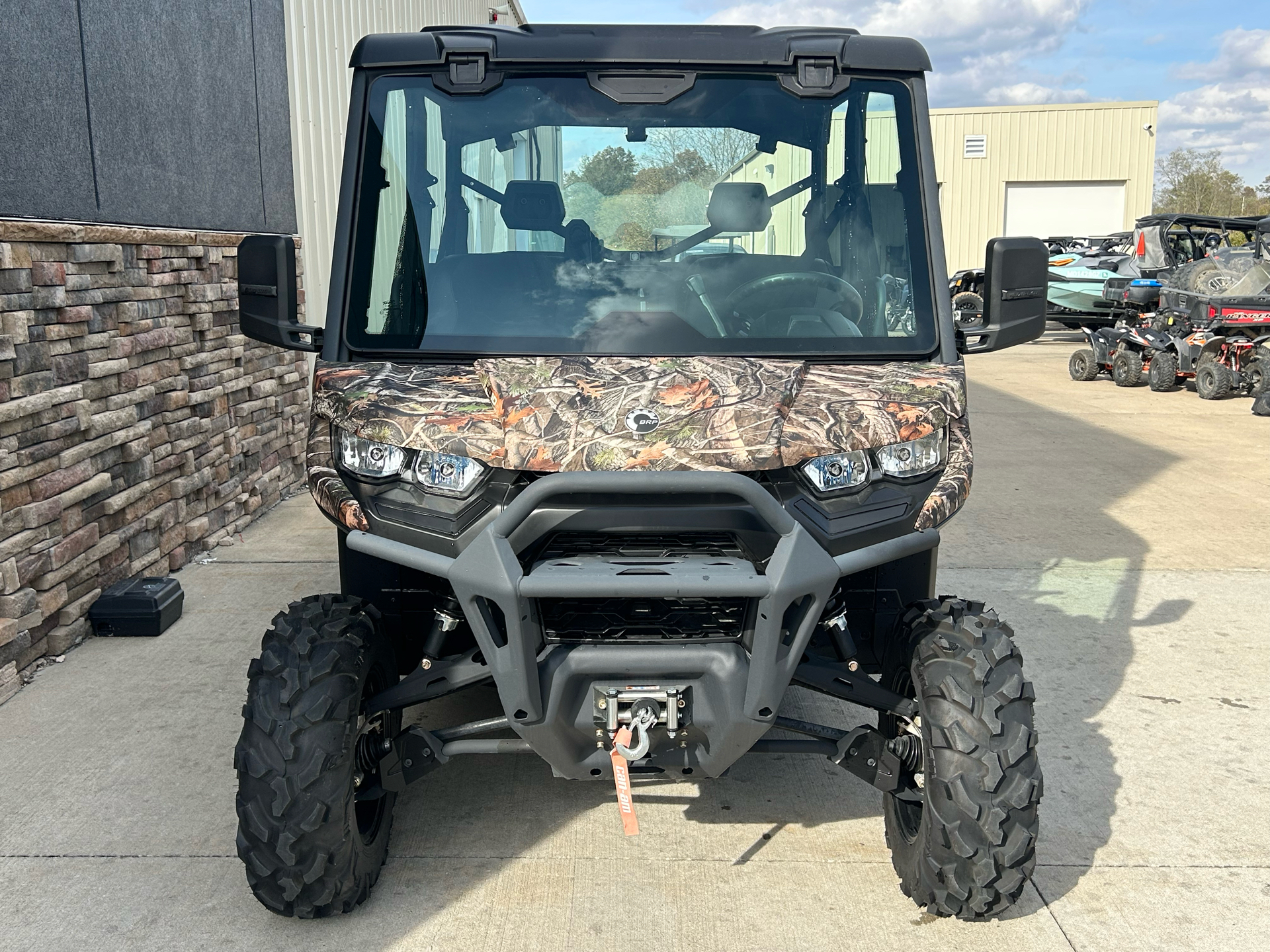

4,500 lb Winch	Factory-installed winch with roller fairlead for self-recovery
XT Front Bumper	Heavy-duty protection for front-end components
HMWPE Full Skid Plate	Complete undercarriage protection

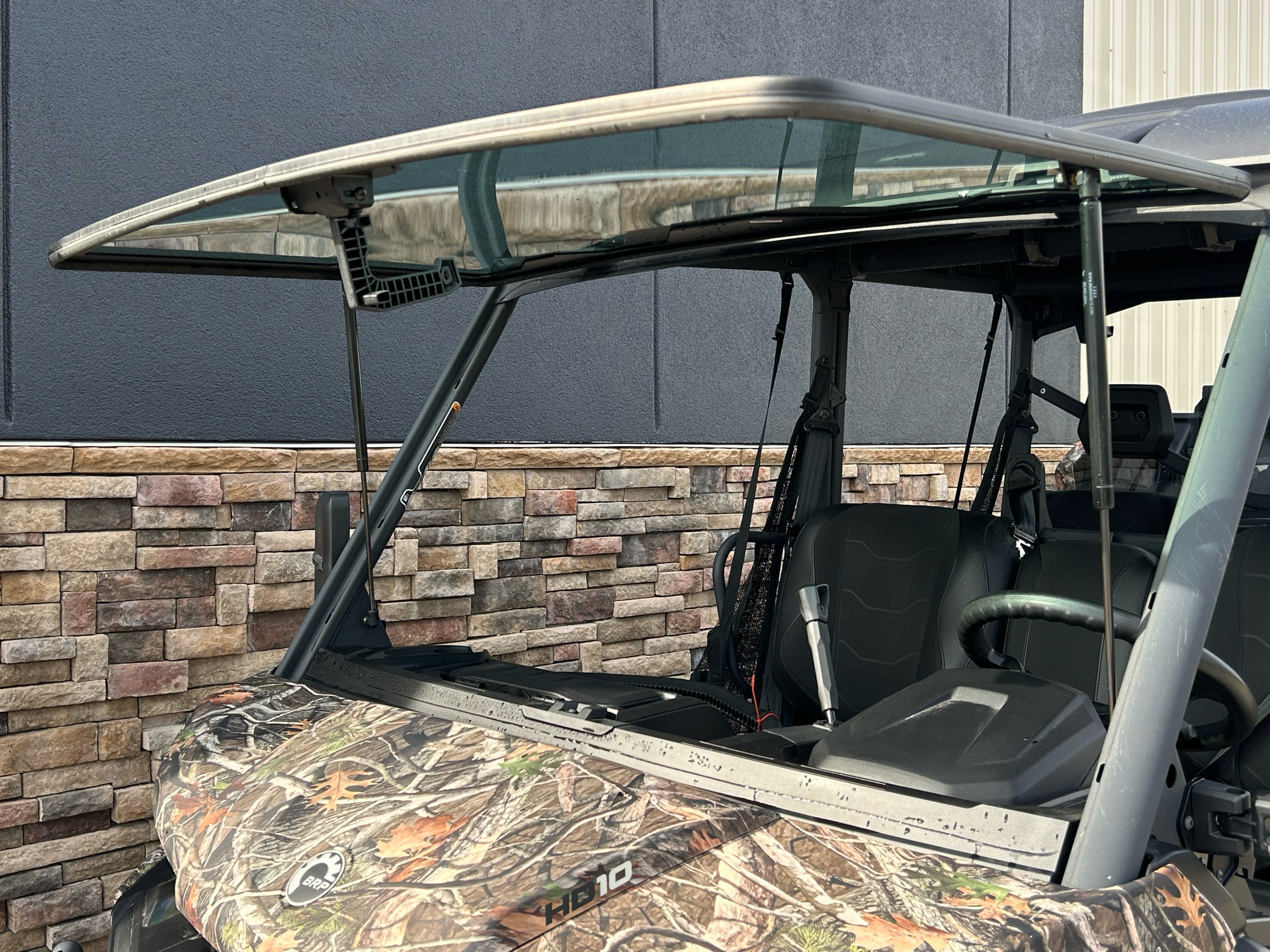

2-Piece Full Hard Roof	Integrated weather protection
VERSA-PRO Bolster Bench Seats	Reinforced XT seat skin, passenger seats flipping up, adjustable driver seat, underside hooks
14-inch Cast-Aluminum Wheels	Premium wheels with XPS Trail King 27-inch tires
Wide Digital Display	4.5-inch display with comprehensive vehicle information
DC Outlet & Dual USB Ports	Convenient power for devices

SUSPENSION & CHASSIS

Component	Specification
Front Suspension	Arched double A-arm with 11 inches (27.9 cm) travel, twin tube gas charged shocks

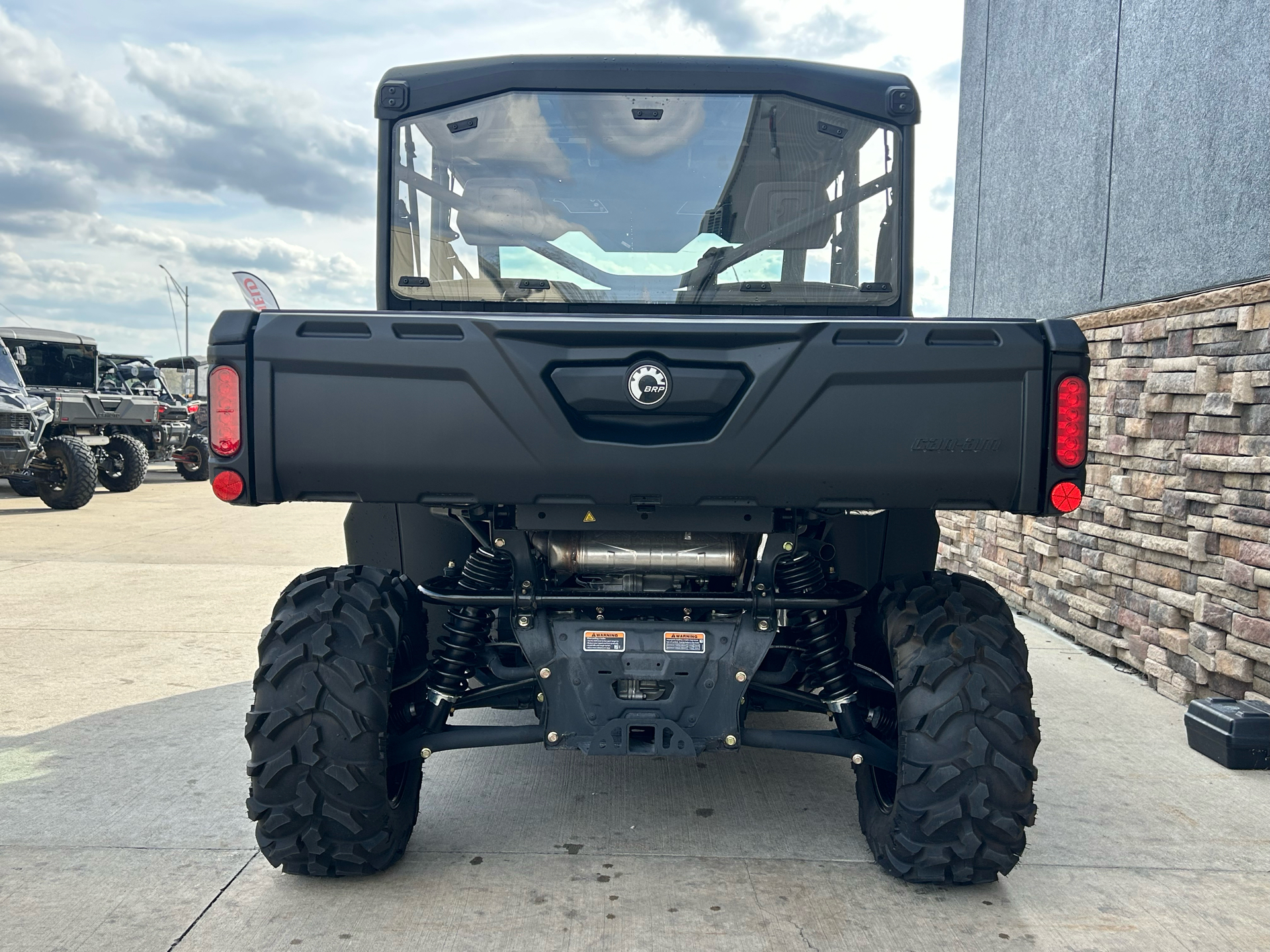

Rear Suspension	Arched TTA (Trailing Torsional A-arm) with external sway bar, 11 inches (27.9 cm) travel, twin tube gas charged shocks
Frame	Profiled steel cage, ROPS approved
Wheelbase	115.5 inches (294 cm)
Overall Length	158.3 inches (402 cm)
Overall Width	64 inches (162.5 cm)
Overall Height	79.5 inches (202 cm)
Ground Clearance	13 inches (33 cm)

Ride Quality:

The Defender’s suspension is engineered to deliver a confident, comfortable ride across diverse terrain. With 11 inches of travel front and rear, the independent front and TTA rear suspension soak up rough terrain while maintaining composure under heavy loads . The arched A-arms provide excellent ground clearance for navigating obstacles .

DIMENSIONS & CAPACITIES

Measurement	Specification

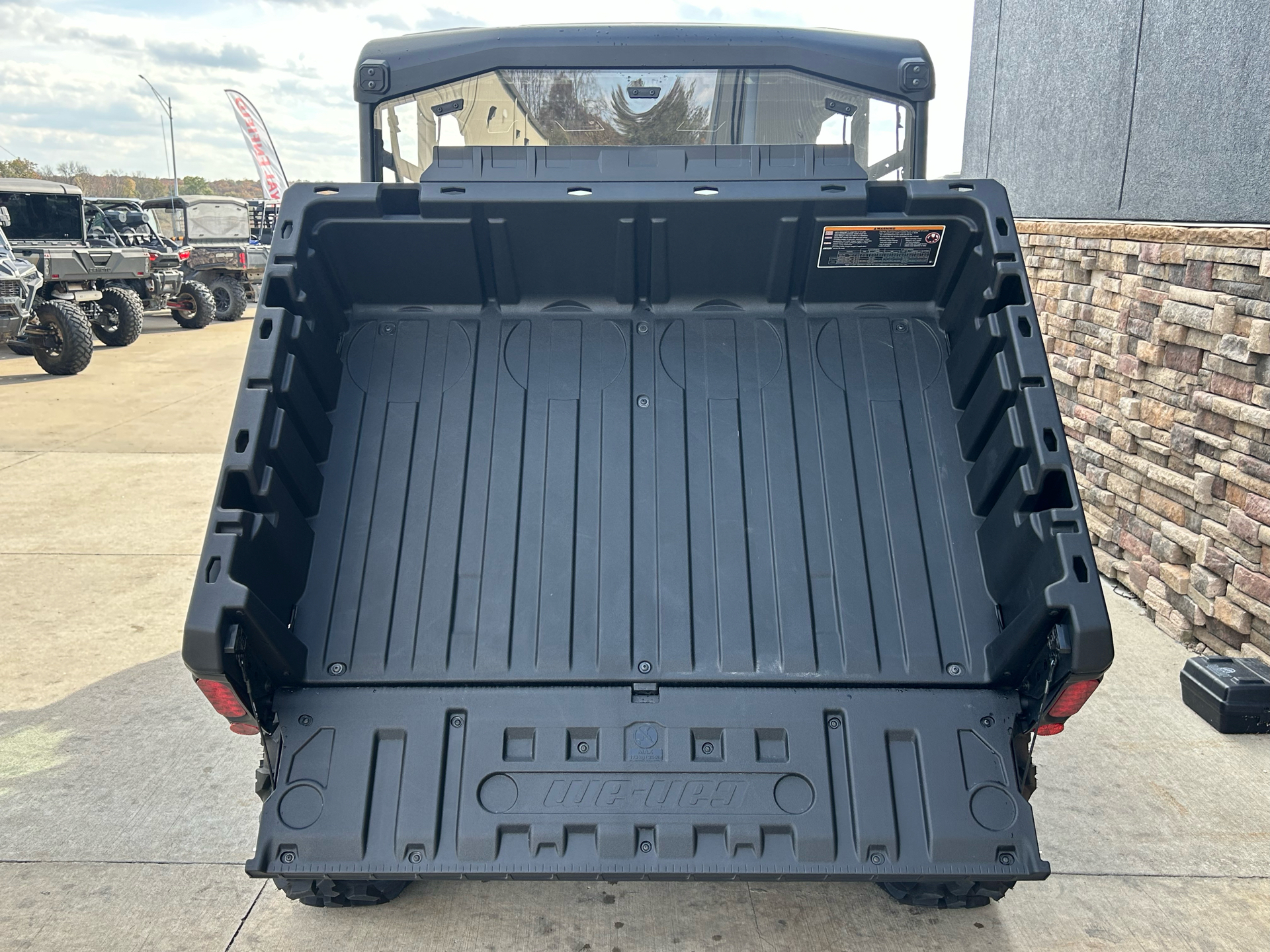

Cargo Box Length	38 inches (96.5 cm)
Cargo Box Width	54.5 inches (138.4 cm)
Cargo Box Height	12 inches (30.5 cm)
Cargo Box Capacity	1,000 lb (454 kg)
Tailgate Load Capacity	250 lb (113.4 kg)
Payload Capacity	1,700 lb (771 kg)
Storage Capacity Total	16.9 gal (63.9 L)
Towing Capacity	2,500 lb (1,134 kg)
Hitch Type	Standard 2-inch receiver

TIRES & BRAKES

Component	Specification
Front Tires	XPS Trail King 27 x 9-14
Rear Tires	XPS Trail King 27 x 11-14
Wheels	14-inch cast-aluminum
Front Brakes	Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear Brakes	Dual 220 mm disc brakes with hydraulic twin-piston calipers
Tire Tread	Knobby

TECHNOLOGY & FEATURES

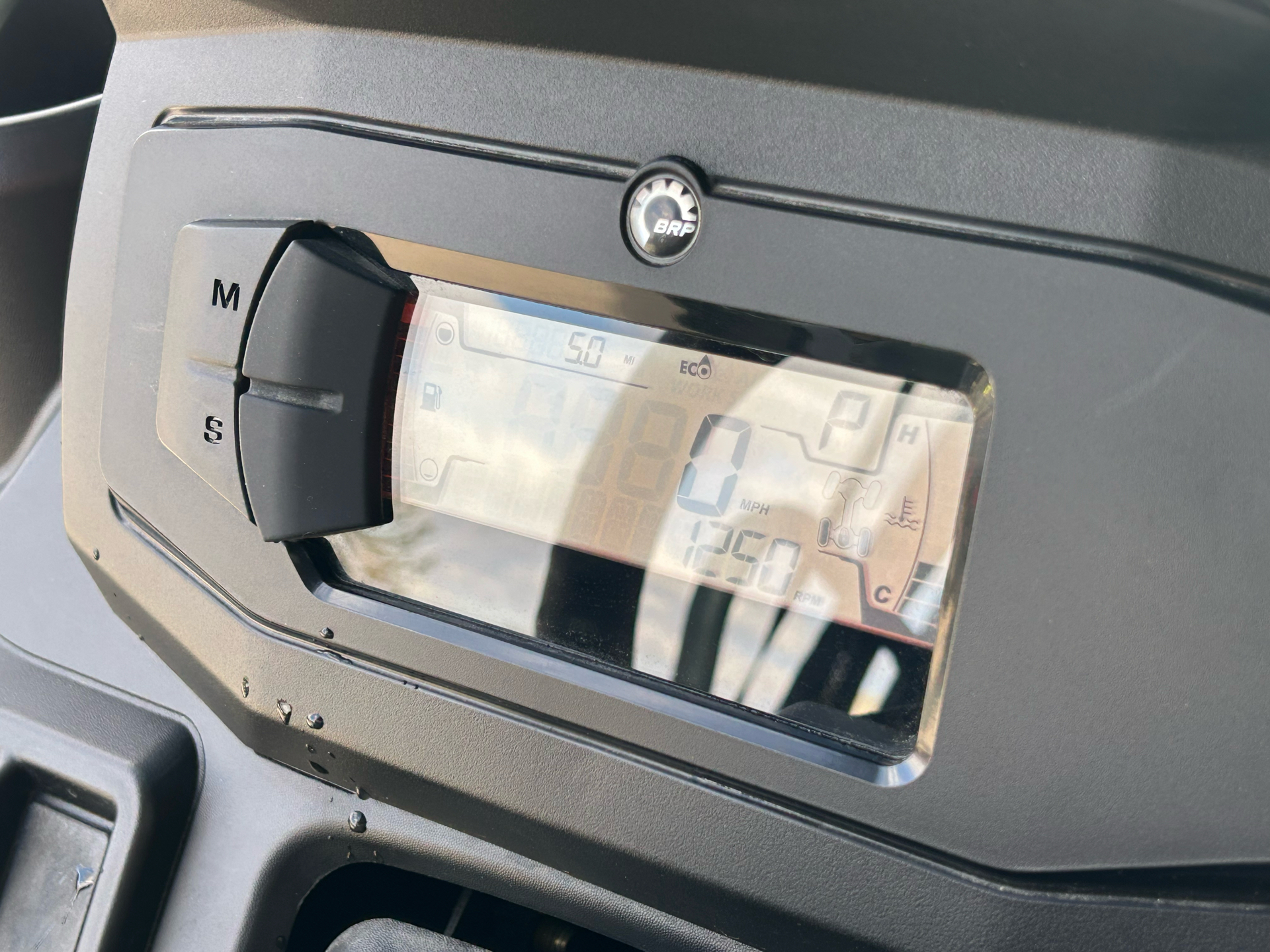

Instrumentation – 4.5-inch Wide Digital Display :

Complete ride information at a glance:

• Digital speedometer
• Tachometer
• Odometer, trip and hour meters
• Fuel gauge
• Gear position indicator
• Drive mode indicators
• Diagnostic displays

Electrical System :

• Magneto Output: 650 W for accessory power
• Battery: 12 V (30 amp/h)
• DC outlet (10-A) and dual USB ports (10-A)

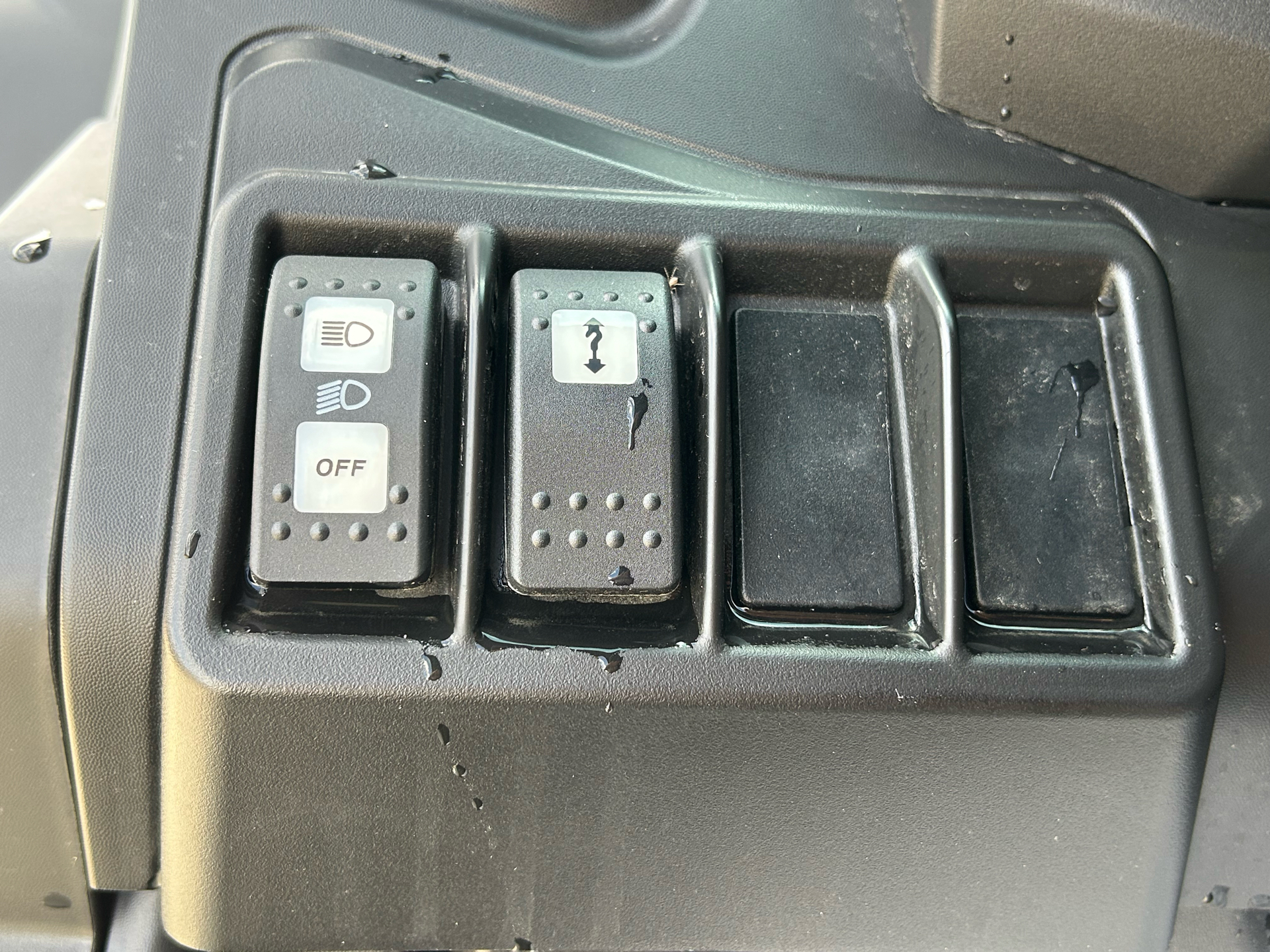

Lighting :

• Front lighting output: 140 W
• LED tail lights for enhanced visibility

Interior & Comfort :

• VERSA-PRO bolster bench seats with passenger seats flipping up
• Adjustable driver seat with underside hooks
• Reinforced XT seat skin for durability
• 4 cupholders
• Adjustable tilt steering

Protection Features :

• XT front bumper
• HMWPE full skid plate
• 2-piece full hard roof

WARRANTY

Coverage	Term
Factory Warranty	1-year BRP limited warranty
Extended Service Terms	B.E.S.T. term available up to 30 months
