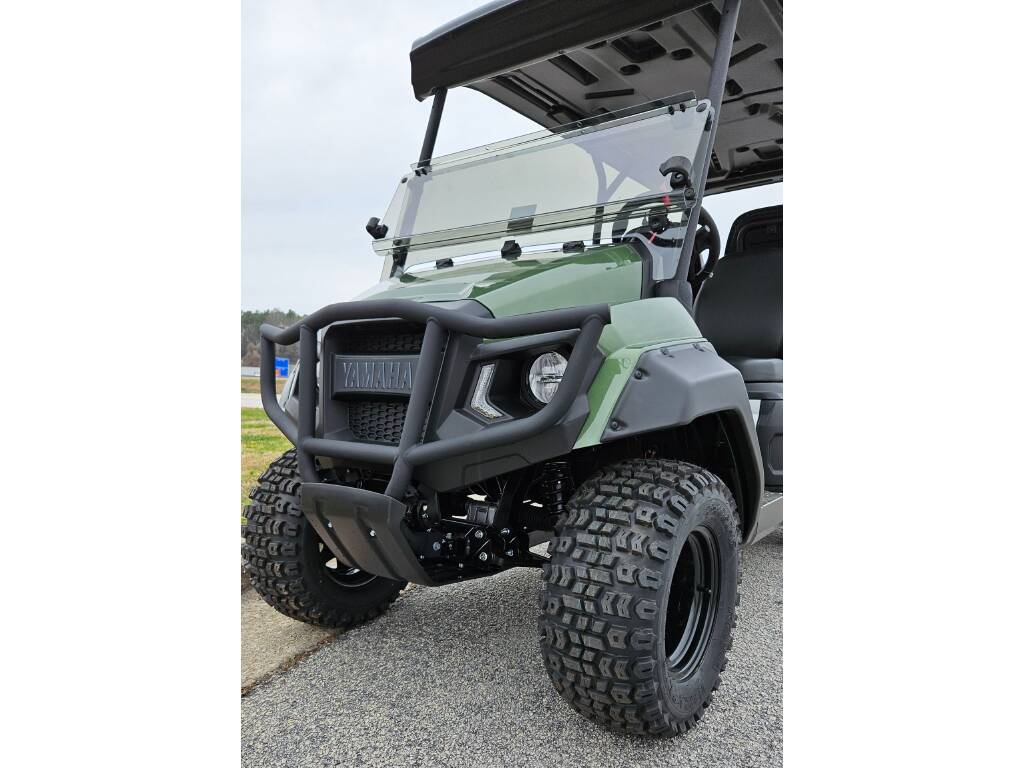

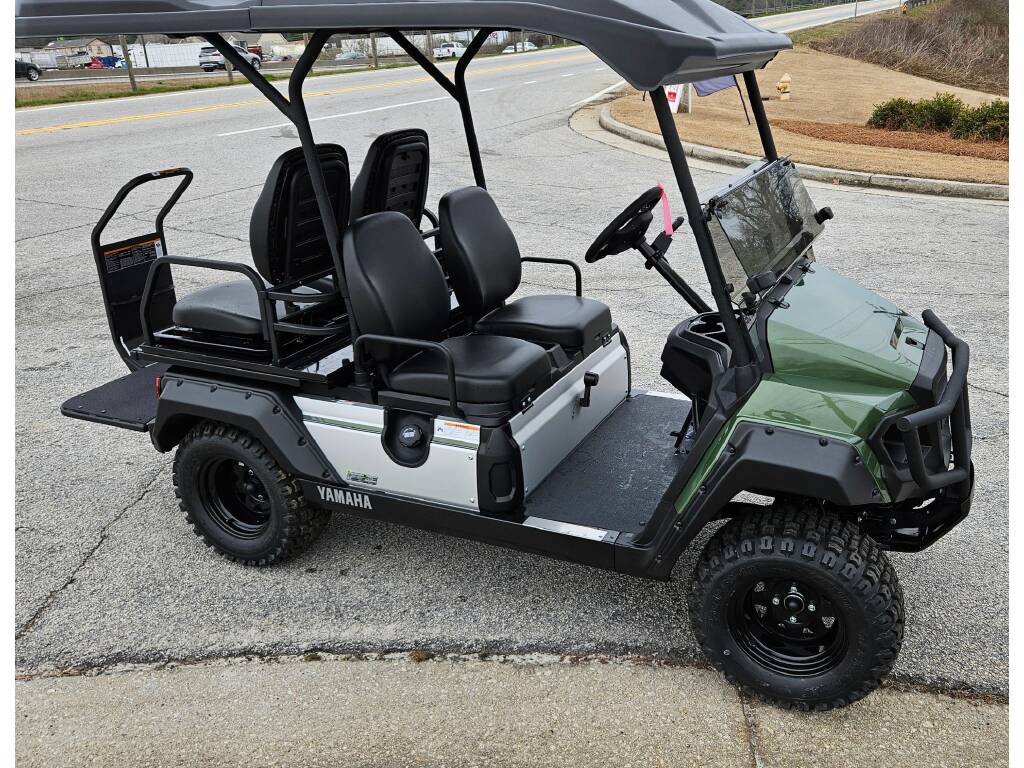

New 2023 Yamaha Umax Rally 2+2 EFI
MEET YOUR EVERYDAY SIDEKICK! The UMAX Rally 2+2 combines all the great features of the UMAX Rally with a rear facing convertible seat. Take the family around town or on an adventure . The 2023 Yamaha UMAX Rally 2+2 EFI is the ultimate 4-passenger Personal Transportation Vehicle (PTV), expertly designed to get the job done with premium power and torque. Whether you’re cruising the neighborhood, managing a property, or tackling light utility tasks, this machine delivers the legendary reliability and performance that Yamaha is known for .
PERFORMANCE SPECIFICATIONS
|
Attribute |
Specification |
|
Engine |
Yamaha-built, 402 cc, low-emission single cylinder 60° incline OHV |
|
Fuel System |
EFI – Electronic Fuel Injection |
|
Horsepower |
Not specified (designed for utility torque, not peak HP) |
|
Top Speed (Forward) |
15 mph (24.1 km/h) or 19.5 mph (31.4 km/h) depending on configuration |
|
Top Speed (Reverse) |
11.2 mph (18 km/h) |
|
Lubrication System |
Splash-style positive oil lubrication |
|
Oil Capacity |
1.16 U.S. quart (1.1 liter) |
|
Air Cleaner |
Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge |
|
Cooling System |
Forced Cooling |
|
Starting System |
Starter generator with pedal start system |
|
Fuel Capacity |
5.2 gallons (20 L) |
|
Towing Capacity |
1,200 lb |
|
Curb Weight |
1,321 lb (599 kg) |
|
Fuel Efficiency |
45 mpg |
SPEED & PERFORMANCE PROFILE
Governed Top Speed for Safe Utility Operation:
The 2023 UMAX Rally 2+2 EFI is designed for utility and neighborhood applications, with a governed top speed appropriate for PTV regulations. Manufacturer specifications indicate a maximum forward speed of 15 mph (24.1 km/h) per dealer listings , while the Yamaha Golf Car official site lists 19.5 mph (31.4 km/h) . This speed limitation ensures safe operation in pedestrian-friendly environments, on planned communities, and in commercial settings where higher speeds are neither necessary nor permitted.
Reverse Speed: Governed to 11.2 mph (18 km/h) for safe maneuvering .

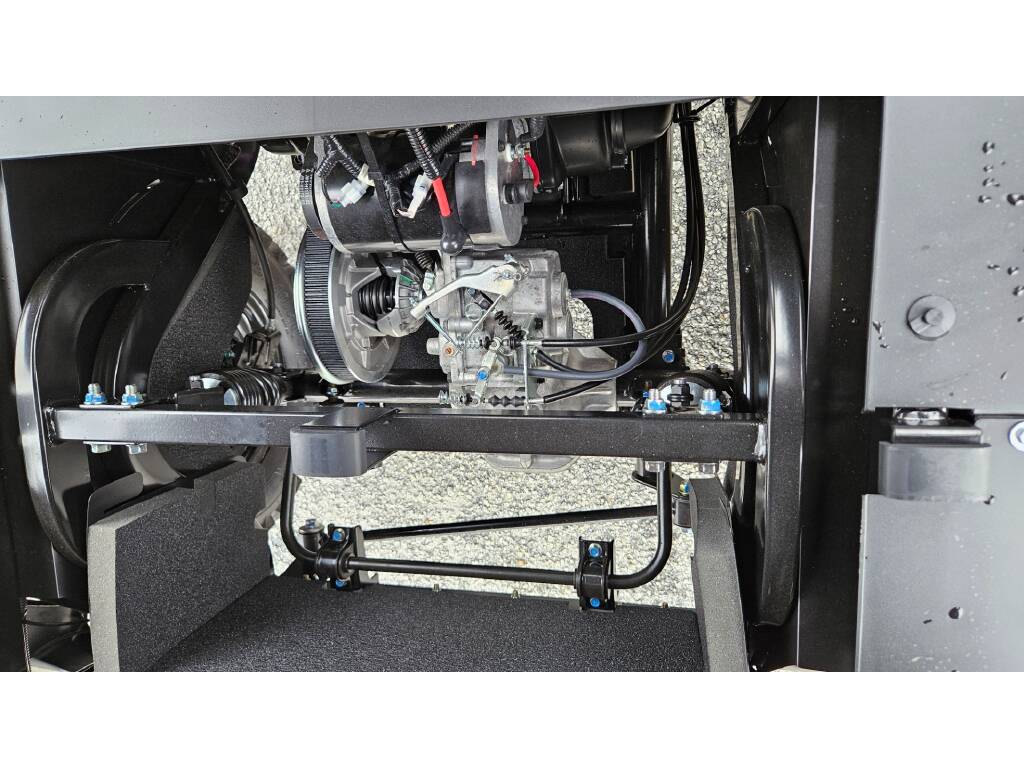

402cc Yamaha-Built Engine:
The UMAX Rally 2+2 is powered by a robust 402cc, low-emission single cylinder 60° incline OHV engine with Electronic Fuel Injection (EFI) . Engine highlights include:
- Electronic Fuel Injection (EFI) for reliable starting and consistent performance in all conditions
- Low-emission design for environmentally responsible operation
- Built to be strong, reliable, and resilient, even for your toughest job of the day
- Quiet operation for use in residential and commercial settings
- 45 mpg fuel efficiency for extended range between fill-ups
Suspension & Ride Quality:
- Front Suspension: Tru-Trak II™ fully independent automotive-style strut suspension for a smooth, comfortable ride
- Rear Suspension: Unit swing arm with heavy duty coil springs over hydraulic shock absorbers
- Capable 23″ tires for light off-road capability and comfortable on-road cruising
CONVERTIBLE SEATING SYSTEM

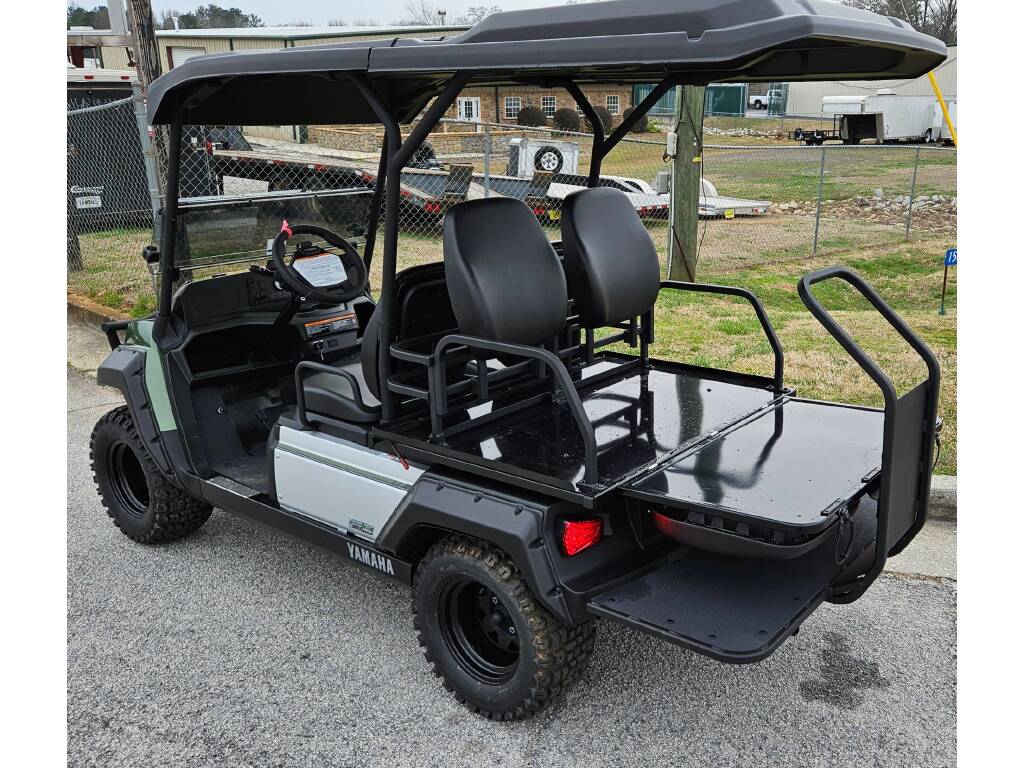

The 2+2 designation refers to the innovative convertible rear seating:
|
Configuration |
Description |
|
4-Passenger Mode |
Rear-facing premium bucket seats accommodate two additional passengers |
|
Cargo Mode |
Rear seats fold down to create a flat cargo surface with 200 lb (90 kg) of added storage capacity |
|
Rear Storage Basket |
Added storage between the front and rear seats to carry tools, equipment, groceries, or whatever else you need to take along |

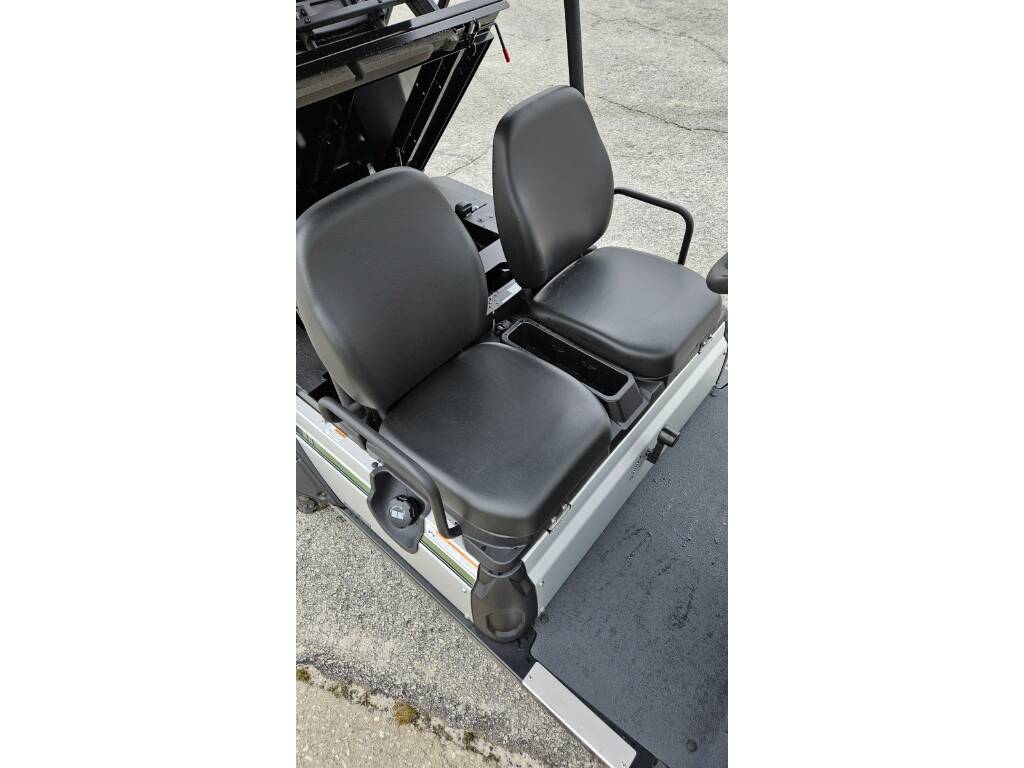

Luxury Bucket Seats:
Derived from Yamaha’s award-winning Viking® Side-by-Side, you can enjoy a comfortable ride with support that will last your entire work day .
DIMENSIONS & CAPACITIES
|
Measurement |
Specification |
|
Overall Length |
134.37 in (341.3 cm) |
|
Overall Width |
53.54 in (136 cm) |
|
Overall Height (with sun top) |
77.20 in (196.1 cm) |
|
Overall Height (without sun top) |
57.48 in (146 cm) |
|
Wheelbase |
77.28 in (196.3 cm) |
|
Front/Rear Wheel Tread |
41.26 in (104.8 cm) |
|
Minimum Ground Clearance |
5.94 in (15.1 cm) |
|
Seating Capacity |
4 persons |
|
Towing Capacity |
1,200 lb |
|
Dry Weight |
1,321 lb (599 kg) |
|
Turning Radius |
13.1 ft (4.0 m) |
FEATURES & EQUIPMENT
|
Category |
Features |
|
Seating & Comfort |
High-back contoured seating, convertible rear-facing fold-down bucket seats, lightweight sun top, rear-view mirror |
|
Storage |
Under-hood storage compartment, rear storage basket between seats, 200 lb fold-flat cargo area |
|
Dash & Technology |
Automotive-style dash with cup holders, fuel/battery gauge, dual USB ports for convenient device charging on both sides |
|
Lighting |
NEW integrated LED brake and taillights for enhanced visibility |
|
Protection |

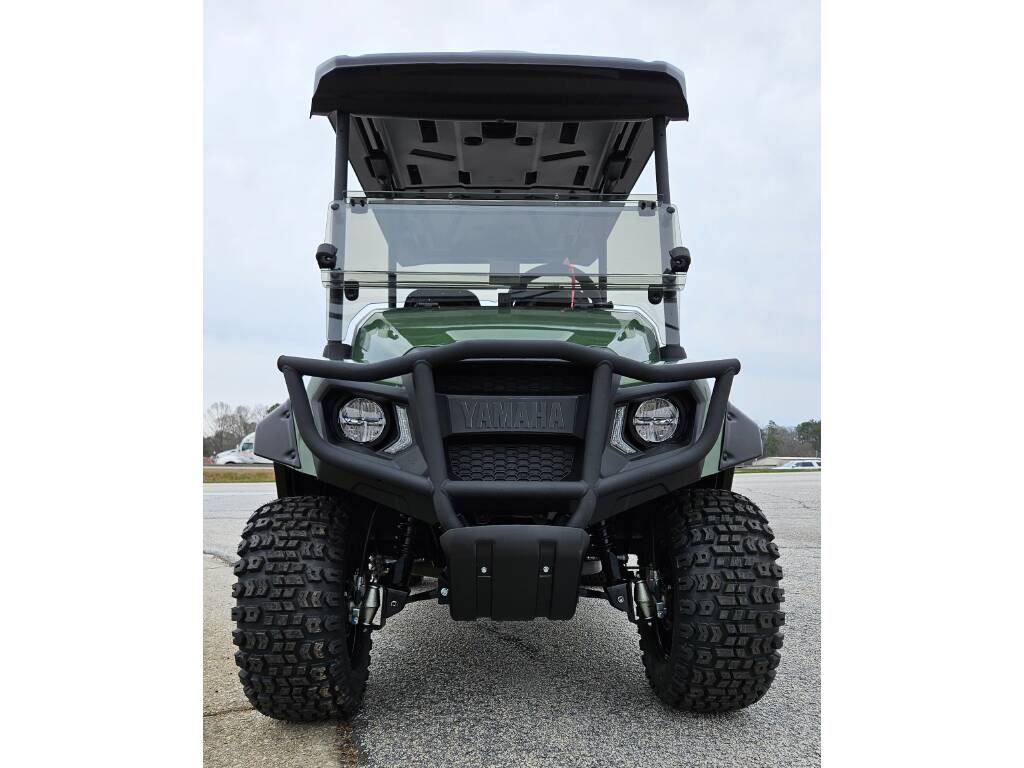

Front brush guard and fender flares standard |
|
Convenience |
Side-fill gas tank for quick, efficient fill-up; clear polycarbonate fold-down windshield |
|
Chassis |
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat |
TIRES & BRAKES
|
Component |
Specification |
|
Tires |
23×10.5-12 4-ply Monitor K389 (front) K500 (rear) |
|
Brakes |
Self-adjusting mechanical, front and rear wheel drum brakes |
|
Steering |
Self-compensating double reduction helical rack-and-pinion |
WARRANTY
|
Coverage |
Term |
|
Factory Warranty |
2-year limited vehicle warranty (standard) |
