Description

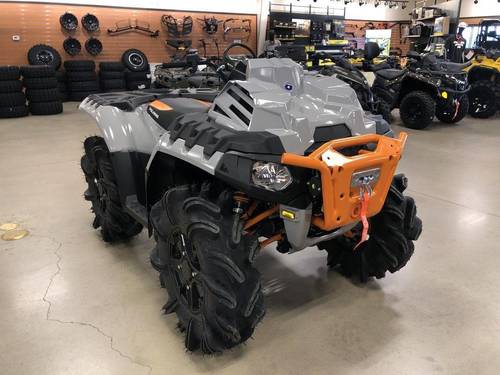

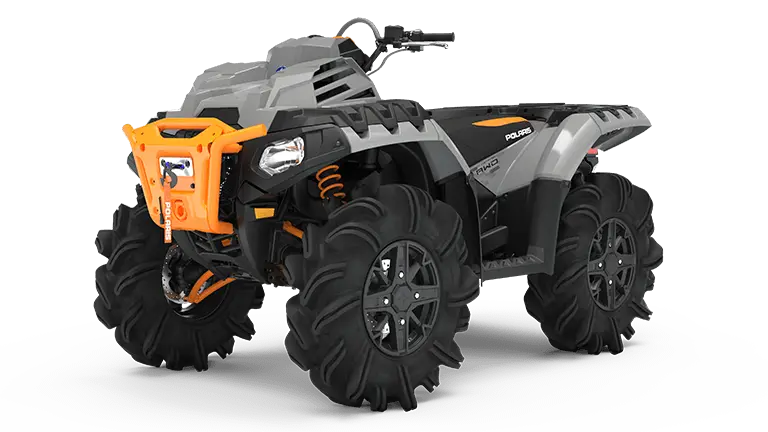

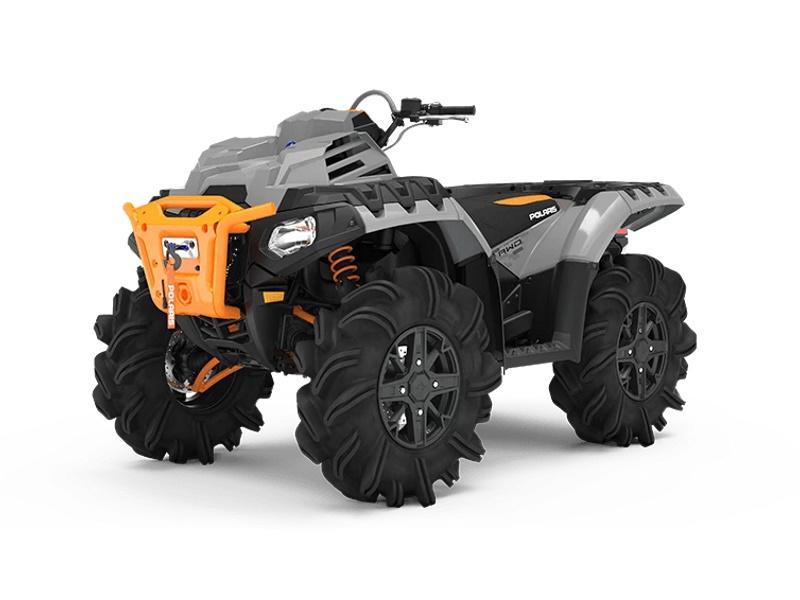

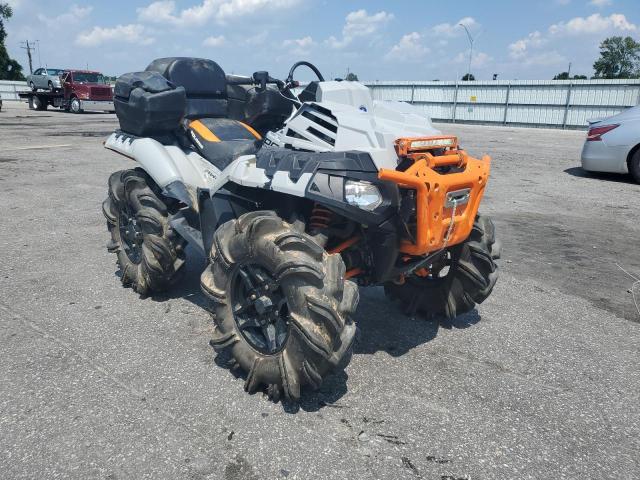

Pre-Owned 2021 Polaris® Sportsman XP 1000 High Lifter Edition
THE ULTIMATE MUD MACHINE. Engineered with a shielded clutch and engine ducting so you can go in, get through, and climb out of your favorite mud hole . The 2021 Polaris Sportsman XP 1000 High Lifter Edition is purpose-built for riders who demand uncompromising performance in the deepest mud and toughest terrain. With its powerful 85hp ProStar engine, massive 30-inch Outlaw 2 tires, class-leading 13.5 inches of ground clearance, and factory-installed 3,500 lb winch, this machine is ready to conquer the muddiest conditions right out of the box.
PERFORMANCE SPECIFICATIONS
|
Attribute |
Specification |
|
Engine |
ProStar SOHC 4-Stroke Twin Cylinder |
|
Displacement |
952 cc |
|
Horsepower |
85 HP |
|
Top Speed (Estimate) |
Approximately 55-60 mph |
|
Max Speed with Heavy Load |
NEVER exceed 50 mph (80 km/h) when rear cargo loads are above 75 lbs (34 kg) |
|
Cooling |
Liquid |
|
Fuel System |
Electronic Fuel Injection / 320 CCA |
|
Transmission |
Automatic PVT P/R/N/L/H In-line Shifting |
|
Drive System |
One-Touch On-Demand AWD/2WD |
|
Engine Braking System (EBS) |
Standard |
|
Fuel Capacity |
5.25 gallons (19.9 L) |
|
Estimated Dry Weight |
974 lb (441 kg) |
|
Payload Capacity |
290 lb (132 kg) |
|
Ground Clearance |
13.5 inches (34.3 cm) |
|
Towing Capacity |
1,500 lb (680 kg) |
|
Hitch Type |
Standard 1.25-inch Receiver |
|
Seating Capacity |
1 rider |
|
Wheelbase |
53 inches (134.6 cm) |
SPEED & PERFORMANCE PROFILE
55-60 mph Estimated Top Speed:
The 2021 Sportsman XP 1000 High Lifter Edition is engineered for versatile utility and mud performance, with an estimated top speed of approximately 55-60 mph. This provides ample velocity for trail riding and property management while maintaining the control and stability expected from a Polaris utility ATV.
Speed Safety Warning:
According to the official Polaris owner’s manual, when operating over rough or hilly terrain, reduce speed and cargo weight to maintain stable driving conditions. NEVER exceed 50 mph (80 km/h) when rear cargo loads are above 75 lbs (34 kg) . This important safety guideline ensures proper handling and control when carrying heavy loads.
85 HP ProStar Engine:
At the heart of the Sportsman XP 1000 High Lifter Edition is the proven ProStar 952cc SOHC twin-cylinder engine producing 85 horsepower . Engine highlights include:
- 4-stroke SOHC design with 8 valves (4 per cylinder) for efficient breathing
- Electronic Fuel Injection for crisp throttle response in all conditions
- Liquid cooling for consistent performance during demanding operation
- Engine Braking System (EBS) for confident controlled descents on steep terrain
One-Touch On-Demand AWD:
The industry’s fastest-engaging all-wheel drive system delivers instant power when the slightest wheel spin is detected, pulling you through mud holes and over obstacles without stopping .
Transmission with High/Low Range:
The automatic PVT transmission features high and low ranges, neutral, reverse, and park (P/R/N/L/H), allowing operators to match speed and power to the task at hand:
- High Range: For trail riding and transport between mud holes
- Low Range: Enhanced torque and controlled speeds for deep mud and technical terrain
HIGH LIFTER EDITION EXCLUSIVE FEATURES
The High Lifter Edition is specifically engineered for mud domination with these purpose-built factory features :
|
Feature |
Description |
|
30-inch Outlaw 2 Tires |
Massive 30 x 9.5 tires on 14-inch aluminum wheels for exceptional mud traction |
|
Sealed Clutch Intake |
Shielded clutch and engine ducting keeps mud and water out |
|
Rack-Mounted Radiator |
Relocated with inverted dual fans to stay clear of debris and mud |
|
High Clearance Arched A-Arms |
7.4 inches front / 6.7 inches rear travel with arched design for obstacle clearance |
|
3,500 lb Polaris HD Winch |
Factory-installed winch with synthetic rope for self-recovery |
|
Mud-Specific Lower Gearing |
Optimized transmission ratios for deep mud performance |
|
Heavy-Duty Front & Rear Bumpers |
Enhanced protection for front-end and rear components |
|
Premium Cut & Sew Seat |
Upgraded comfort and style with High Lifter branding |
|
Electronic Power Steering (EPS) |
Standard for reduced operator fatigue during long mud rides |
|
Mud Handlebar Grab Hoop |
Purpose-built handhold for extreme conditions |
SUSPENSION & CHASSIS
|
Component |
Specification |
|
Front Suspension |
High Clearance Arched Dual A-Arm with 7.4 inches (18.8 cm) travel |
|
Rear Suspension |
High Clearance Arched Dual A-Arm, Rolled IRS with 6.7 inches (17 cm) travel |
|
Electronic Power Steering |
Standard – reduces operator fatigue and provides precise control |
|
Ground Clearance |
13.5 inches (34.3 cm) – class-leading for obstacle clearance |
|
Front/Rear Brakes |
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
|
Parking Brake |
Park In-Transmission / Lockable Hand Lever |
Ride Quality:
The independent rear suspension keeps your tires grounded and optimizes your approach angle to obstacles, providing a smoother ride experience without the fatigue of bouncing around . High clearance A-arms increase ground clearance to 13.5 inches and provide more room to easily clear trail obstacles, giving you peace of mind knowing your machine can clear obstacles with ease .
DIMENSIONS & CAPACITIES
|
Measurement |
Specification |
|
Overall Length |
88 inches (224 cm) |
|
Overall Width |
50 inches (127 cm) |
|
Overall Height |
50.4 inches (128 cm) |
|
Seat Height |
39 inches (99 cm) |
|
Ground Clearance |
13.5 inches (34.3 cm) |
|
Wheelbase |
53 inches (134.6 cm) |
|
Dry Weight |
974 lb (441 kg) |
|
Fuel Capacity |
5.25 gal (19.9 L) |
|
Front Rack Capacity |
120 lb (55 kg) |
|
Rear Rack Capacity |
240 lb (110 kg) |
|
Payload Capacity |
290 lb (132 kg) |
|
Towing Capacity |
1,500 lb (680 kg) |
TIRES & BRAKES
|
Component |
Specification |
|
Front Tires |
30 x 9.5 Outlaw 2 |
|
Rear Tires |
30 x 9.5 Outlaw 2 |
|
Wheels |
14-inch Aluminum |
|
Front/Rear Brakes |
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
Take on the mud with ease and experience more traction with 30-inch Outlaw 2 tires to keep you moving forward through the tough stuff .
TECHNOLOGY & FEATURES
Instrumentation – All Digital Gauge :
|
Display Type |
Information Provided |
|
Primary Displays |
Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter |
|
Vehicle Status |
Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature |
|
Warnings |
Hi-Temp Light, Service Indicator, Diagnostic Indicator |
|
Convenience |
Clock, DC Outlet |
Standard Features :
|
Category |
Features |
|
Protection |
Front Bumper, Rear Bumper, Lockable Hand Lever Parking Brake |
|
Recovery |
Polaris HD 3,500 lb Winch with Synthetic Rope |
|
Comfort |
Premium Cut & Sew Seat, Painted Plastics, Painted Springs |
|
Storage |
Lock & Ride 2 Gal (8 L) Rear Storage |
|
Lighting |
Dual 50w Headlights, Dual Brakelights/Taillights |
|
Control |
Mud Handlebar Grab Hoop, Electronic Power Steering (EPS) |
Cargo System:
Utilize the integrated 2-gallon storage to keep your items secure and protected on the trail .
WARRANTY
|
Coverage |
Term |
|
Factory Warranty |
6-month limited warranty |
